| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | CE |
| Model Number: | Automatic bag-given doypack packing machine Liquid and paste Packaging Machine |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 SET/MONTH |
| Model: | ZG8-300L | Working Position: | Eight-working Position |
|---|---|---|---|
| Pouch Material: | Laminated Film\PP\PE Etc. | Pouch Pattern: | Stand-up(thickness Of Botom≥0.1mm Stand-up Bag), Flat |
| Voltage: | 380V 3phase 50HZ/60HZ | Total Power: | 4KW |
| High Light: | zipper pouch packing machine,plastic pouch packing machine |
||

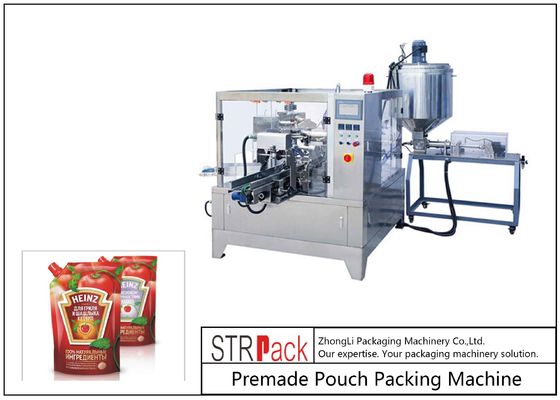

Automatic bag-given doypack packing machine Liquid and paste Packaging Machine 380V 3 Phase Air Pressure
Technical Characteristic
1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Automatic checking function: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
4. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clip, easily operate, and save time.
5. The part where touch to the materials is made of stainlesss steel and according with the request of GMP.
Application:
Automatic Liquid and paste Packaging Machine suitable for liquid material,such as syrup,ketchup,bechamel.capsicum paste,scour ,detergent liquid ,drink liquid and different kinds of liquid &thick liquid automatic packing .
Main technical parameters
| Model | ZG8-300L | ZG8-250L | ZG8-200L |
| Working position | eight-working position | ||
| Pouch material | Laminated film PPPE etc. | ||
| Pouch pattern | Stand-up(thickness of botom≥0.1mm stand-up bag), flat | ||
| Pouch size | W:200-300mm L:200-450mm |
W:150-260mm L:150-350mm |
W:100-210mm L:100-350mm |
| Speed | 8-30bag/min | 8-35bag/min | 10-50bag/min |
| Weight | 1500KGS | 1400KGS | 1200KGS |
| Voltage | 380V 3phase 50HZ/60HZ | ||
| Total power | 4KW | 4KW | 3KW |
| Compress air | 0.6 cubic feet per second ( provided by the user) | ||
