| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | ISO,CE |
| Model Number: | STR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price Negotiable |
| Packaging Details: | Wooden Case Packaging |
| Delivery Time: | 3-50 Working Days |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000 SET |
| Suitable Caps: | Diameter Φ20mm~Φ80mm | Power Supply: | AC 380V; 50Hz |
|---|---|---|---|
| Power: | 3.0 Kw | Pneumati: | 0.6 Mpa |
| Capping Heads: | 6 | ||
| High Light: | rotary capping machine,bottle screw capping machine |
||

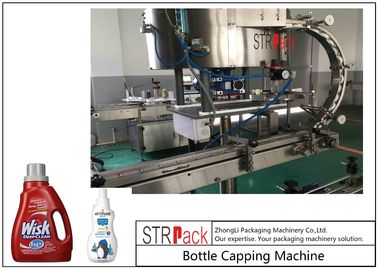

SX-6B Automatic 6 heads Rotary Capping Machine For Laundry Detergent Cleaner Bottle Capping Machine
Discover capping machines and bottle cappers that are currently available at STRPACK. Bottle capping machines tighten and secure caps on any nearly any container type.
1. Fully automatic rotary capper
2. Used for cap diameter: 20mm-80mm
3. Capping speed: 0-6000bottles/hour
4. Perfect capping
Capping machines are used for the application of plastic and metal threaded caps as well as plastic snap caps, some fitments and some types of corks and plugs. Capping is usually the most difficult aspect of a liquid packaging line for several reasons. Sometimes the range of geometries and sizes of caps and bottles is so wide that the capping machine components become expensive or the platform of that particular type of capping machine is not suitable for all sizes and geometries in the range. Sometimes the bottle and cap combination are not ideal with the threads of the bottle being in conflict with the threads of the cap and great force is needed to apply the cap. Sometimes caps can only be placed vertically on the container which increases the capital cost of the machinery. Inline Filling Systems understands these issues very well and has a capping machine to address every one of these capping challenges. We specialize in capping machines and cap feeding systems for both startup companies as well as higher speed production environments.
Major Characteristics:
This is our newly developed capping machine, integrates bottle inlet, cap sort, cap feed, capping, bottle outlet together. Well suitable for diversified caps, also very friendly applicable for anti-theft caps. Caps are grasped and positioned well, harmless to caps during the machine running. Fast speed of machine and high qualified rate of capping, it bears step less adjusting, can reach the international advanced level of similar products.
Electric elements use international famous brand, which ensure the machine’s quality and its service lifetime, reasonable structure, superior performance, low voice, friendly environmental.
The surface of this machine has been polished with good looking. It can be well matched with the production line. It is an ideal equipment for large and medium factories.
Working Principle:
(1) This capping machine adopts rotary type for screwing caps. Caps are oriented and supplied to the cap grasping area, capping heads grasped caps send to capping area by compressed air for doing
capping work, finally capper bottles are outlet by conveyor.
(2) Caps tighten can be adjusted by clutch.
(3) Bottle inlet can cap inlet are controlled synchronously
(4) Reversed caps can be ejected. (optional function)
Main Technical Parameters:
| No. | Item | Performance | |
| 01 | Suitable bottles | ||
| diameter | Φ40mm~Φ100mm | ||
| height | 80mm~280mm | ||
| 02 | Suitable caps | ||
| height | 10mm~35mm | ||
| diameter | Φ20mm~Φ80mm | ||
| 03 | Power supply | AC 380V; 50Hz | |
| 04 | Power | 3.0 Kw | |
| 05 | Pneumatic (air-operated)source | 0.6 Mpa clean and stable compressed air | |
| 06 | Number of capping heads | 6 heads | |
| 07 | Production capacity | ≤6000 bottles/hour (Speed can be customized) | |
| 08 | Weight | about 980 Kg | |
| 09 | Dimension (L×W×H) | 2000mm×1300mm×2400mm | |
|
No.
|
Name
|
Brand
|
|
1
|
frequency converter
|
Siemens
|
|
3
|
programmable controller
|
Siemens
|
|
4
|
interface
|
Siemens
|
|
5
|
power switch
|
Delta
|
|
6
|
relay
|
Panasonic
|
|
9
|
photoelectric switch
|
OMRON |
|
11
|
air switch
|
Schneider
|
|
12
|
urgent stop button
|
Schneider
|
|
17
|
motor
|
Maili
|
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
