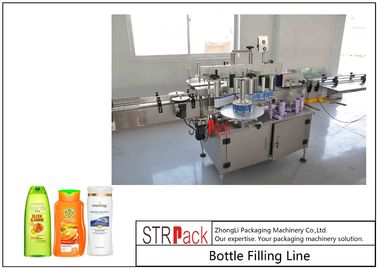

Automatic Shampool Bottling Line With Servo Filling Machine,Capping Machine,Double Sides Self-adhesive Labeling Machine

Automatic Shampool Bottling Line With Servo Filling Machine,Capping Machine,Double Sides Self-adhesive Labeling Machine

  • Automatic Shampool Bottling Line With Servo Filling Machine,Capping Machine,Double Sides Self-adhesive Labeling Machine
  • Automatic Shampool Bottling Line With Servo Filling Machine,Capping Machine,Double Sides Self-adhesive Labeling Machine
  • Automatic Shampool Bottling Line With Servo Filling Machine,Capping Machine,Double Sides Self-adhesive Labeling Machine
  • Automatic Shampool Bottling Line With Servo Filling Machine,Capping Machine,Double Sides Self-adhesive Labeling Machine
Automatic Shampool Bottling Line With Servo Filling Machine,Capping Machine,Double Sides Self-adhesive Labeling Machine
Product Details:
Place of Origin: CHINA
Brand Name: STRPACK
Certification: ISO,CE
Model Number: STR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Wooden Case Packaging
Delivery Time: 3-50 Working Days
Payment Terms: TT/LC
Supply Ability: 1000 SET
Contact Now
Detailed Product Description
Bottle Filling Machine: 1 Capping Machine: 1
Front & Back Labeling Machine: 1 Carton Erector: 1
Carton Packaging Machine: 1 Carton Sealing Machine: 1
High Light:

automatic liquid filling line

,

powder filling line

Automatic Shampool Bottling Line With Servo Filling Machine,Capping Machine,Double Sides Self-adhesive Labeling Machine



Automatic Shampool Bottling Line With Servo Filling Machine,Capping Machine,Double Sides Self-adhesive Labeling Machine 0

Application

Suitable for Shampool filling, capping, labeling and cartoning.

Air Pressure: 0.4~0.6MPa

Capacity: 2,000-5,000 BPH

Filling Volume: 0~5L

Required Operator: 3-4 workers

Equipment Noise: ≤80dB



Also suitable for

Food: Jam, Sauce, Paste, Honey, Chili Sauce, Ketchup, Edible oil, Olive oil, Salad Dressing, Salsa, Barbecue Sauce.



Pharmaceutical: Liquid vitamins, E-liquid, Peroxide, Syrup, Eye drops, Fish oil, Nasal spray, Alcohol, Lotion.



Daily Chemical: Liquid soap, Cleaning Chemical, Laundry liquid, Toilet Cleaning Agent, Dish Detergent, Detergent, Cleaning Fluid, Bleach, Disinfectant.



Personal Care: Shampoo, Hair Care, Hair Gel, Lotion, Lip Balm, Nail Polish, Shower Gel, Hand Soap, Hand Cream, Body Lotion, Cream, Perfume.



Agrochemical: Pesticide, Fertilizer, Herbicide, Paraquat, Imazethapyr, Bactericide, Rodenticide.

Chemical: Corrosive Product, Fuel, Lubricating oil, Antifreeze, Brake Fluid, Paint, Coating, Glue, Adhesive, Additive.





Bottle feeding machine, Full automatic bottle unscrambler

Bottle rinsing machine-air rinser, Bottle rinsing machine-wet rinser

Servo type piston filling machine, Gravity liquid filling machine, Corrosive liquid filling machine

Linear filling machine, Rotary filling machin, Cap pressing machine, Crimping machine

Induction sealer

Round bottle labeling machine, Front & back labeling machine, Sleeve labeling machine

Ink jet printer

Shrink packing machine

Carton erector

Carton packaging machine

Carton sealing machine

Palletizer

Automatic Shampool Bottling Line With Servo Filling Machine,Capping Machine,Double Sides Self-adhesive Labeling Machine 1

volumetric filling machine

Product Description

This volumetric filling machine is specially made for all materials, such as water, gel, shampoo, oil olive oil,motor oil etc. The vegetable oil filling machine adopts piston pump and for filling. By adjusting the position pump, it can fill many kinds of the bottles in one filling machine, with quick speed and high precision.

The volumetric filling machine can fill different shapes of bottle such as circular, round, flat, square, etc. It is suitable for glass bottle and plastic bottle. The filling capacity can be adjustable, the filling volume can be varied from 100-5000ml by adjusting the piston pump.





Characteristic:


1.Suitable filling material
This volumetric filling machineadopts piston pump, which is suitablefor all kind materials, with high filling speed and high filling precision.For filling corrosive, the position pumpwill be made by silicon rubber, Teflon, ceramics and other corrosion resistance materials.

2.Controlling system.
The volumetric filling machine adopts full-auto PLC and human-computer touch screen control system. For different volumes adjustment, we set several procedures, mode 1, mode 2, mode 3``` Operators do not need too much complicated adjustments, the filling machine can switch between the three models easily.

3.Different volume adjustment.
By adjusting the piston pump, it also can fill all the liquid from 500-2500ml
4.Bottle position correct device.

To ensure the bottles and filling nozzles are in the correct position, we add a special bottles position device to make the whole filling process smooth and stable. No bottle no filling.

5.Filling nozzles.
The filling nozzles are specialized made: anti-drop. Also, the filling nozzles will come into the bottle bottom, and moving up slowly when filling.

6.Cleaning.
The pump uses quick-fit removal Structure.It is easy cleaning and disinfection.



Main technical parameter:

Type

volumetric filling machine
Filling material Honey, paste, butter, ketchup sticky liquid
Filling nozzle can be customized
Filling volume 100ml-5000ml
Metering system Piston pump
Filling speed 1000-8000bottles per hour
Filling precision ±0.5%
Air consumption 0.6~0.8MPa
Power 220/380v 50/60Hz
Power 2.2Kw
Single machine noise ≤50dB
Weight 1000Kg
Application bottle Circular, round, flat, square, etc
Bottle material Glass and plastic
Machine size L1800*W900*H1800mm























































FAQ:

1---Any machine in stock?

For semi automatice machine, we have some in stock. It can ship within 7-10 working days. For automatic machine, all have no stock. Automatic machines are custom-made according to your bottles and caps.



2---What is the lead time?
For single machine, it takes from 20~35 working days. For whole filling line, it takes from 50~60 working days. (from the day we have the downpayment and sample bottle and caps)



3---Can you help the shipment? Ship from which port?
Yes, we can help to the shipment, just tell us the name of sea port in your side. If by air, it is from Shanghai International Airport. If by sea, it is from Shanghai or Ningbo. And other seaport of China are accepted.



4---The payment?
By TT. 50% in advance as downpayment , 50% balance before shipping.

5---can we visit factory to check machines firstly, then place order?
Sure, welcome to visit us!




After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 12months
(2) Long time technology will be supplied.
(3) We can send our engineer to your side for installing and debugging machines and training your people. Engineer's round-trip tickets, accommodation, daily allowance USD80.00/day/person, and your side traveling fee will be charged by you.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
