|Place of Origin:||CHINA|
|Model Number:||Stand-up Zipper Pouch Given Rotary Packing Machine|
|Minimum Order Quantity:||1|
|Payment Terms:||L/C, T/T|
|Supply Ability:||50 SET/MONTH|
|Measurement Accuracy:||±0.5-5g||Bag Type:||Premade Bag|
|Operation Mode:||Intermittent||Film Thickness:||0.04-0.12mm|
powder packaging equipment,
food packaging machine

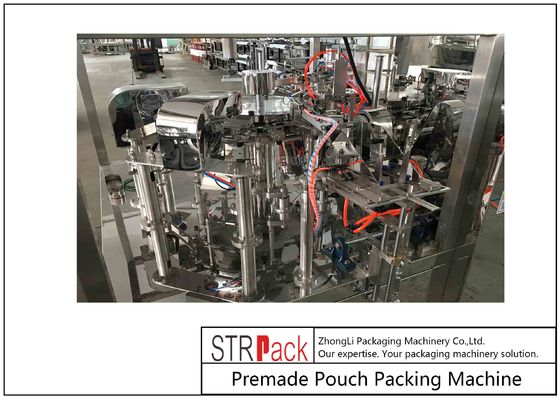

Automatic Detergent Powder Bag Stand-up Zipper Pouch Given Rotary Packing Machine With Auger Filler
This automatic packing machine unit is specialized in the powder (such as milk powder, coffee powder, seasoning, additive), which includes the rotary packing machine and auger filler.
Main technical Parameters
This machine is the typical automatic bag feeding packing machine; it can finish the following work: clasp the bag, print the bag, open the bag, filling, vibrating, sealing, shaping, conveying etc. It is suitable for many kinds of materials and different packaging bag. It is easy to adjust and operate and to change the packing specification. The machine is equipped with automatic checking and safety monitoring function. It can lower the consumption rate of wrapping material and keep the sealing effect and bag shape. The whole machine is made of 316 Stainless Steel which is hygienic and safety.
Function and characteristics:
1. Easy to operate,adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2. Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production
3. Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4. Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
5. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
6. It matchs with the glass safty door. The machine will stop working when you open the door. So that it could protect the safty of operators. At the same time, it could prevent dust.
7. Use the plastic bearing, don’t need put on oil, less pollution.
8. Use no oil vacuum pump, avoid polluting the environment in the production.
9. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification
10. Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food
11. With different feeders changed to pack solid, liquid, thick liquid ,powder and so on
12. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE , PP and so on Preformed bag made by film and paper.
|Bag Type||premade bag|
|Working position||six-working position||eight-working position|
|Pouch material||Laminated filmPPPE etc.|
|Speed||Up to 15bags/min||Up to 40bags/min||Up to 45bags/min||Up to 40bags/min|
|Voltage||AC 220V/ 50HZ 1phase or per customer needs|
|Compressed Air Requirement||0.6MPa,0.36 M3 / Min|
