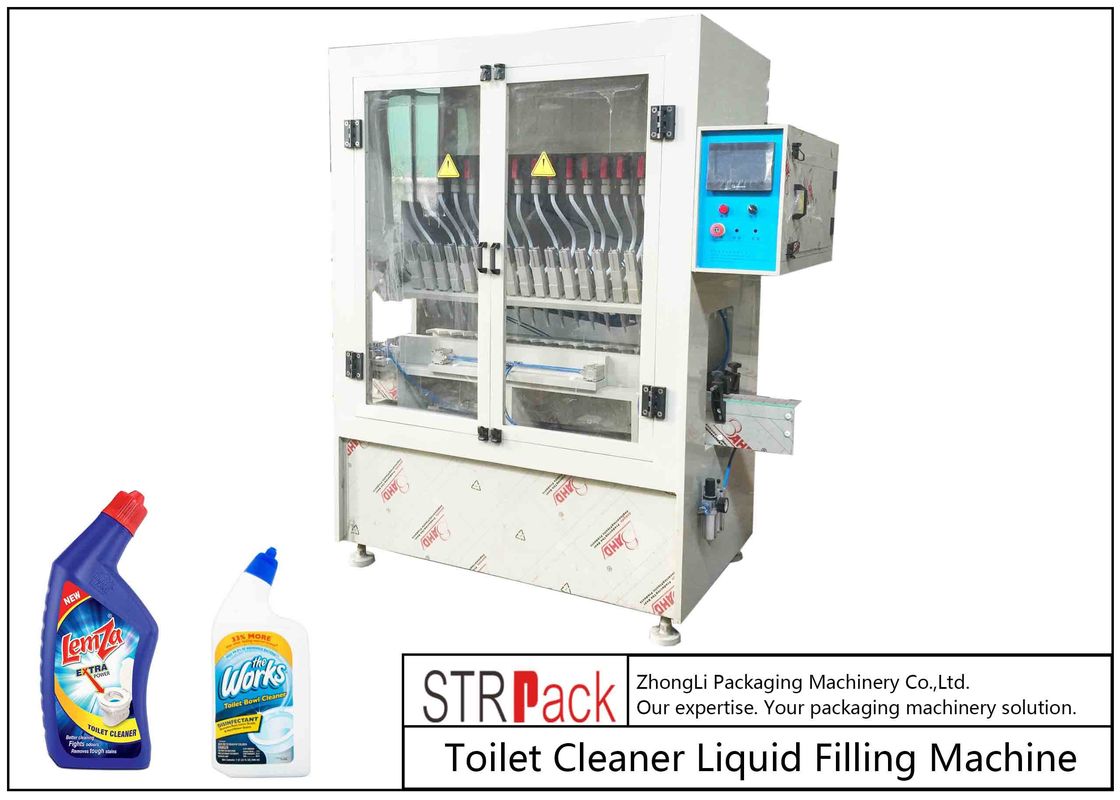

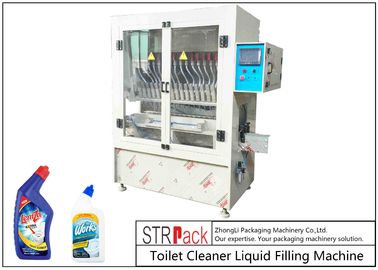

High Accuracy Automatic Liquid Filling Machine Vertical High Tech Filler For Bleach / Acid

Product Details:

Place of Origin:	CHINA
Brand Name:	STRPACK
Certification:	ISO,CE
Model Number:	STR

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Price Negotiable
Packaging Details:	Wooden Case Packaging
Delivery Time:	3-50 Working Days
Payment Terms:	TT/LC
Supply Ability:	1000 SET

Contact Now

Detailed Product Description

Touch Screen:	WEINVEIW	PLC:	Mitsubishi
Photo Sensor:	OPTEX	Solenoid Valve:	SHAKO
Level Button:	JOHNSON CONTROLS	Power Button:	Schneider
High Light:	rotary liquid filling machine , linear liquid filling machine

Automatic Gravity Bottle Filling Machine For Bleach Toilet Cleaner Acid Corrosive Liquid Filling Machine

Brief Introduction

<1 > Suitable material: Bleach, acid liquid, 84 disinfectant, gel water, toilet cleaner, especially used in the liquid filling of strongly corrosion liquid and cosmetics which can’t touch the metal.

<2> Contact liquid parts are use anticorrosive non-metallic material and with diving function.

<3 > This Vertical filler is a high-tech filling equipment integrating on the PLC microcomputer programmable control, and photo electricity transduction pneumatic action.

<4 > The machine suits for the filling of different sizes of vessel may change the filling sizes within a few minutes. Short filling circle, high production capacity.

<5> User may choose the filling volume and decide the filling heads per own production capacity.

<6 > The precision time of the pneumatic valve filling may set to 0.01 second, can make the measurement precision control within ±1%, to decrease unnecessary material loss and enhance the economic efficiency.

<7 > Each filling-head’s measurement may be individually adjusted to realize the same filling measurement.

<8> The machine set such function: having counting program of bottle-feeding, doesn’t fill as there is not bottle or the counting doesn’t attain a predetermined position, can start filling only when the counter records that the bottle number is same as the setting filling number.

<9 > More or less of the filling volume, may initially adjust to the needed filling volume, then micro adjust, can get the ideal filling measurement precision.

Main Parameter:

Working power supply	AC220V,50Hz,≤750W
Filling accuracy	≤±1.5%
Filling quantity	500~2000ml
Filling heads	8, 12, 16, 18, 20
Filling range	Can be customized according to customer's request
Production capacity	1200~4000bottle/hours
Working gas source	0.6~0.8MPa
Applicable object	Cleaning, washing supplies, bleach, toilet cleaner, acid
Material type	Corrosive liquid
Packing type	bottle

No.	ITEM	SUPPLIER	Brand
1	Touch screen	Taiwan	WEINVEIW
2	PLC	Japan	Mitsubishi
3	photo sensor	Japan	OPTEX
4	solenoid valve	Taiwan	SHAKO
5	Level button	Mexco	JOHNSON CONTROLS
6	angle seat Valve	German	BURKERT
7	Other divices	Taiwan	Airtac
8	Power button	France	Schneider
9	Button	France	Schneider
10	frequency converter	France	Schneider
11	bottle- transport motor	China	Huangyan
12	Speed reducer	China	Jiaoxing
13	Relay	Japan	Omron

After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
