| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | ISO,CE |
| Model Number: | STR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price Negotiable |
| Packaging Details: | Wooden Case Packaging |
| Delivery Time: | 3-50 Working Days |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000 SET |
| Type: | Filling Machine | Packaging Type: | Bags, Barrel, Bottles, Cans, |
|---|---|---|---|
| Dimension(L*W*H）: | 800*790*1900mm | Usage: | Powder,granule Filling |
| Capacity: | 40-60 Bottles/bags Per Min | Material: | SUS304/316 Customized |
| High Light: | powder bottle filling machine,powder bag filling machine |
||
Product Introduce:

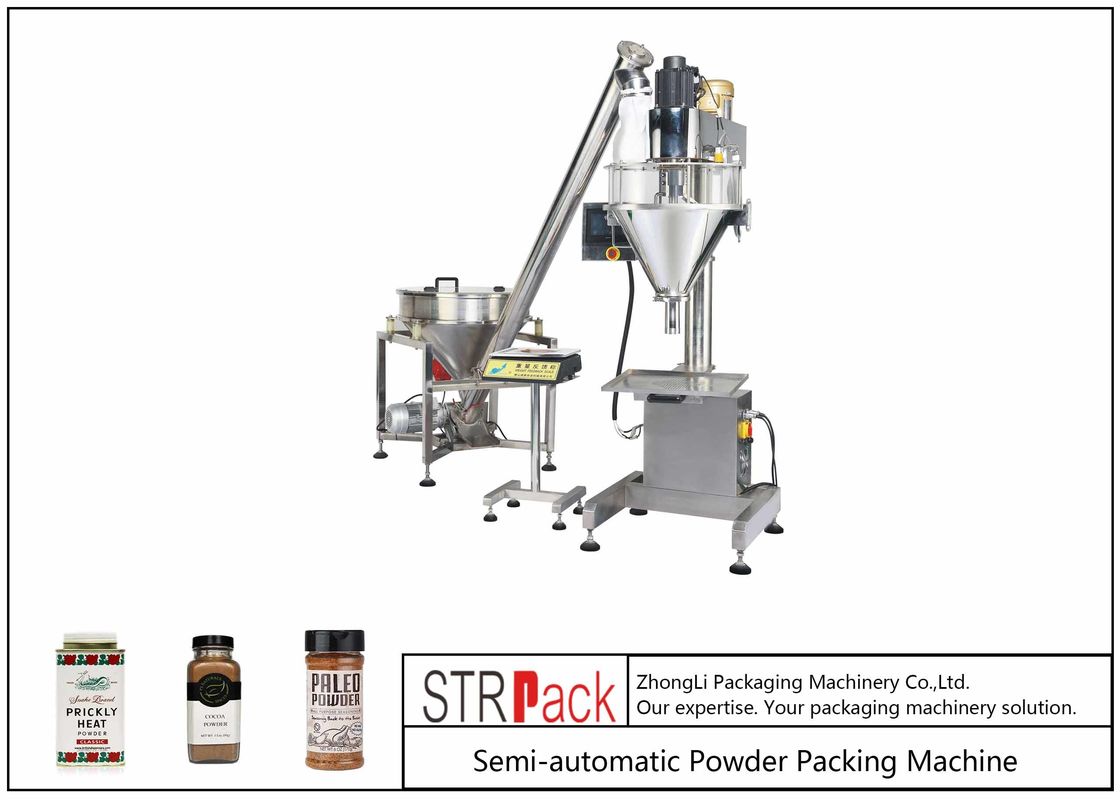

Auger filler machine is our main product, used to fill powder or small granules (with Dia.less than 5mm)into bottles/bags manually.This machine control filling amount by a unibody lathed auger.With advanced control system and some spare parts,it suits for all variety powder,and well guarantee its filling accuracy.
Characteristic:
• When filling,the bottles stands on an online weight sensor, the PLC will adjust the filling speed according to the weight given by sensor, which greatly improves the filling accuracy.
• The servo motor drives the platform moving, the filling speed is adjustable, no dust will come out with remover.
• The filling auger is driven by servo motor, working stable and fills in high accuracy.
• PLC and touch screen controlling system, with foot pedal switch, easy to operate.
• All stainless steel 304 material, quick-disconnection hopper, easy to clean and keep tidy.
• The height of auger filling head could be adjustable by rolling wheel, suitable for different bottle size.
• The auger is fixed tightly, won’t affect the character of material.
• Pneumatic device and other option device is available to suit different bottles.
Technical Parameter:
| Filling type | Volumetric measuring by auger | Hopper | 50 L |
| Filling weight | 1-5000 g | Powder | 0.93 KW |
| Filling accuracy | ≤±0.5% | Weight | 130 KG |
| Filling speed | 15-40 times/min | Dimension | 800*790*1900mm |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
