4 Head Cam Rotor Pump Filling Machine For Chunk Paste

4 Head Cam Rotor Pump Filling Machine For Chunk Paste

  • 4 Head Cam Rotor Pump Filling Machine For Chunk Paste
  • 4 Head Cam Rotor Pump Filling Machine For Chunk Paste
  • 4 Head Cam Rotor Pump Filling Machine For Chunk Paste
  • 4 Head Cam Rotor Pump Filling Machine For Chunk Paste
4 Head Cam Rotor Pump Filling Machine For Chunk Paste
Product Details:
Place of Origin: CHINA
Brand Name: STRPACK
Certification: ISO,CE
Model Number: STR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Wooden Case Packaging
Delivery Time: 3-50 Working Days
Payment Terms: TT/LC
Supply Ability: 1000 SET
Contact Now
Detailed Product Description
Model: STRD-4 Nozzle Number: 4
Filling Volume: 100-1000ml(from STRPACK) Production Capacity: 100-3000Bottles/Hour(Depends On Filling Volume)
Quantitative Error: ≤±1% Voltage: 380V/220V,50HZ-60HZ
Power: 2.5KW Air Pressure: 0.6-0.8MPA
Air Consumption: 0.8
High Light:

380V Cam Rotor Pump Filling Machine

,

4 Head Cam Rotor Pump Filler

,

Automatic Chunk Paste Filling Machine



Six Head Cam Rotor Pumps Filling Machine--For with Chunk Paste



4 Head Cam Rotor Pump Filling Machine For Chunk Paste 0


Brief Introduce

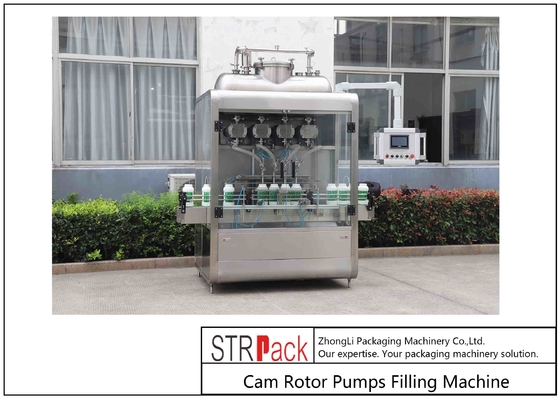

This filling machine is Cam rotor pump filling machine which is made for filling high viscous product and non-flowable paste such as mayonnaise, sealant ,grease etc.
The machine is made by Linear structure , filling head quantity can be custom-made according to different production capacity such as 6/8 heads.
The filling system is driven by servo motor which assure high filling accuracy ,also easy to set filling volume on the touch screen directly.
It is widely used in the cosmetic, foodstuff, specialty chemical, pharmaceutical, and personal care industries.



4 Head Cam Rotor Pump Filling Machine For Chunk Paste 1



Suitable For Filling

GMP clean Products , Food Sauce , Yogurt , Mayonnaise , Garlic Sauce, Grease ... High paste , with and without chunk



4 Head Cam Rotor Pump Filling Machine For Chunk Paste 2



Features

1: NO PISTON , All parts can be clean well

2: Suitable for : with Chunk and without , high viscous paste cream

3: No filling size limited

4: Each one Filling nozzles with one set servo motor and servo driver control Cam Rotor Pump to make sure for high viscous and with chunk also high accuracy

5: From storage tank to filling machine tank included on the top , there is a infeed valve , transfer the material by pump ,filling tank to filling nozzles directly control by servo motors and Rotor pumps ,every filling nozzle with one set to control

6: Filling Machine tank is special made food grade level with clean function , can meet CIP station requirements for food clean

7: With Program for Machine Cleaning

8: Machine Material :

All contact parts made of SUS 316L ; Machine Body made of SUS 304



4 Head Cam Rotor Pump Filling Machine For Chunk Paste 3



Technical Parameters

NO Model STRD-4
1 Nozzle number 4
2 Filling volume 100-1000ml(from STRPACK)
3 Production capacity 100-3000Bottles/Hour(Depends on Filling volume)
4 Quantitative error ≤±1%
5 Voltage 380V/220V,50HZ-60HZ
6 Power 2.5KW
7 Air Pressure 0.6-0.8MPA
8 Air consumption 0.8





FAQ
1---If have stock machine?
For semi automatice machine, we all have stock. Can ship within 7 working days. For automatic machine, all have no stock. Automatic machines are customized made according to bottles and caps. It need place the order, then manufacture.
2---How long time to make?
For single machine, it takes from 10~30 working days. For whole filling line, it takes from 40~60 working days.
3---Ship from which port?
If by air, it is from Shanghai International Airport. If by sea, it is from Shanghai or Ningbo. Other seaport of China is also accepted.

4---The payment?
By TT. 50% in advance as downpayment , 50% balance before shipping.

-If can visit factory to check machines firstly, then place order?
Sure! Welcome to visit us !




After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
