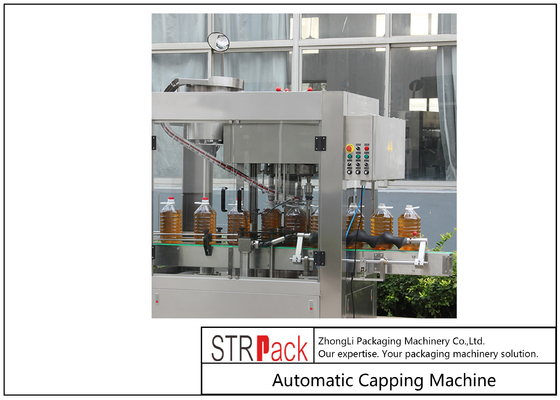

Rotary ROPP Automatic Capping Machine Aluminum Screw Capping Machine

Rotary ROPP Automatic Capping Machine Aluminum Screw Capping Machine

  • Rotary ROPP Automatic Capping Machine Aluminum Screw Capping Machine
  • Rotary ROPP Automatic Capping Machine Aluminum Screw Capping Machine
  • Rotary ROPP Automatic Capping Machine Aluminum Screw Capping Machine
  • Rotary ROPP Automatic Capping Machine Aluminum Screw Capping Machine
Rotary ROPP Automatic Capping Machine Aluminum Screw Capping Machine
Product Details:
Place of Origin: CHINA
Brand Name: STRPACK
Certification: ISO,CE
Model Number: STR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Wooden Case Packaging
Delivery Time: 3-50 Working Days
Payment Terms: TT/LC
Supply Ability: 1000 SET
Contact Now
Detailed Product Description
Model: SFY-4 Speed: <5000 Bottles/hour(Form STRPACK)
Bottle Diameter: 45-90mm Bottle Height: 180-320mm
Cap Diameter: 22-32mm Power: 2.5KW
Air Pressure: 0.6-0.8Mpa Voltage: 220V/380V,50HZ-60HZ
Weight: 850KG Dimension: 2000x1000x2300(LxWxH)mm
High Light:

Rotary Aluminum Capping Machine

,

ROPP Automatic Capping Machine

,

Aluminum Screw Capping Machine





Rotary ROPP Aluminum Cap Screw Automatic Capping Machine



Rotary ROPP Automatic Capping Machine Aluminum Screw Capping Machine 0



Machine Description :

This Automatic 4 Head Aluminum Cap Crimping Machine is suitable for closing aluminous caps like pilfer- proof aluminous caps.

PLC control system, rotary type structure, the machine is with function of automatic cap feeding ,loading and closing.
The crimping head is made up by strong stainless steel, by 4-wheel balance principle design, the crimping force is uniformly which makes good sealing effect.
Bottle feeding star wheel equip with clutch device, machine stops automatically if bottle get stuck.
And there is automatic positioning device for bottle neck which assure the capping accuracy and stability.

The containers are fed onto the rotary screw capper and are separated and positioned on individual capping stations. The caps are presorted and fed on the sliding table of the machine. The continuously rotating chucks are lowered over the cap to pick up and secure the caps, then apply the caps to the containers. When the preset applied torque value is achieved, the magnetic clutch disengages, the chuck releases the cap and the closed container is discharged from the machine.

With 4 mechanical hands ,the mode is suitable for multi-geometry containers,It bispatches caps at fast speed without any cap reversed . Supplying cap system and mechanical hands work together in phase . When the cap is tightened , bottle and cap stand still relatively ,and the clutch separates immediately so that able and not apt to be damaged .



Rotary ROPP Automatic Capping Machine Aluminum Screw Capping Machine 1Rotary ROPP Automatic Capping Machine Aluminum Screw Capping Machine 2



Key Features

1.Carbon steel base mounted on adjustable floor levellers for easy alignment

2.Bearing frame and all surface components manufactured in 304 stainless steel

3.Magnetic clutch capping heads for screw caps complete with pick & place cap system

4.Caps in chute photocell, machine will not work if there are no caps present on chute

5.Automatic cap feeder, chute and applicating head

6.Electrical socket for optional elevator feed

7.Safety guarding with interlock devices

8.Cap change parts complete set to run a different size cap(option)

9.Cap elevator to load the cap feeder automatically(option)



Rotary ROPP Automatic Capping Machine Aluminum Screw Capping Machine 3



Technical Parameters

NO Model SFY-4
1 Speed <5000 bottles/hour(Form STRPACK)
2 Bottle diameter 45-90mm
3 Bottle height 180-320mm
4 Cap diameter 22-32mm
5 Power 2.5KW
6 Air pressure 0.6-0.8Mpa
7 Voltage 220V/380V,50HZ-60HZ
8 Weight 850KG
9 Dimension 2000x1000x2300(LxWxH)mm




After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
