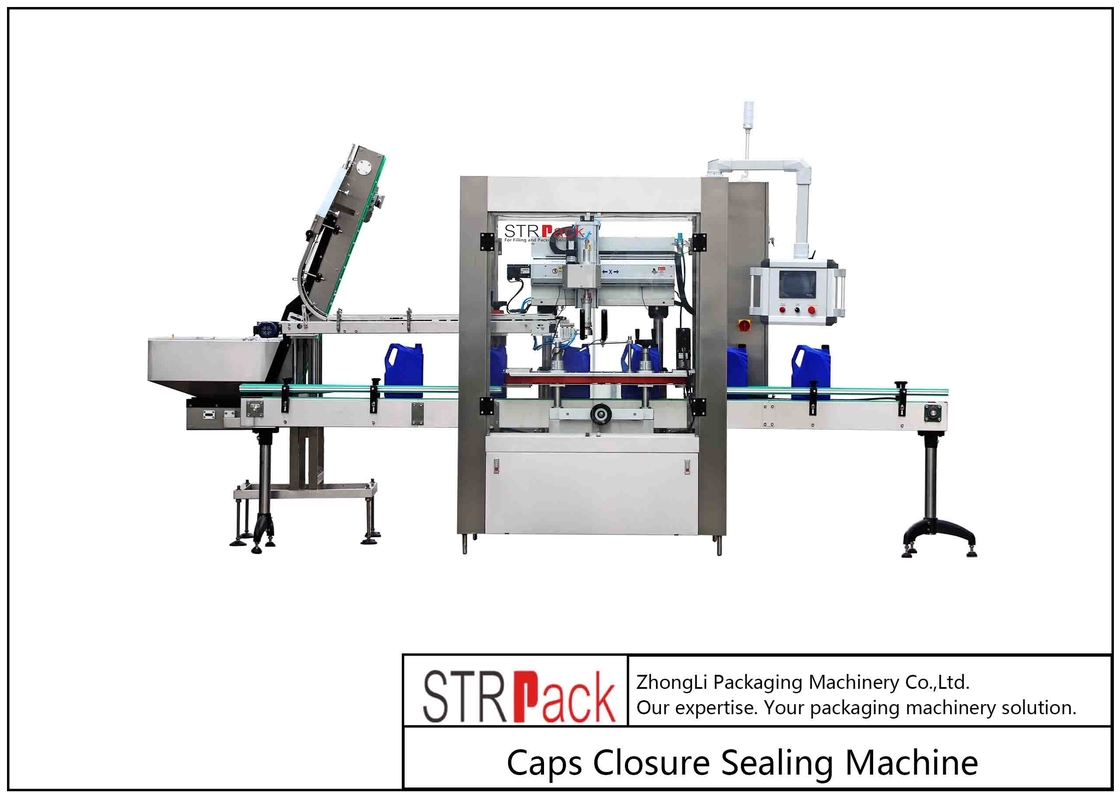

Automatic Tracking Type Closure Capping Machine For Plastic Cap

Automatic Tracking Type Closure Capping Machine For Plastic Cap

Automatic Tracking Type Closure Capping Machine For Plastic Cap
video
Automatic Tracking Type Closure Capping Machine For Plastic Cap
Product Details:
Place of Origin: CHINA
Brand Name: STRPACK
Certification: ISO,CE
Model Number: STR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Wooden Case Packaging
Delivery Time: 3-50 Working Days
Payment Terms: TT/LC
Supply Ability: 1000 SET
Contact Now
Detailed Product Description
Capacity: ≤2200 Bottles/hour Percent Of Pass: ≥99%
Applicable Bottle Type: Round Bottle:φ50-140mmheight:230-340mm Flat Bottle:length 45-250mm Width45-140mm Height90-340mm Caps Specification: φ30-65mm H15-30mm
Air Pressure: 380V 50HZ-60HZ Power Rate: 2.5KW
Weight: 1100KG External Dimension: 2195x1300x2300(LxWxH)mm
High Light:

2.5KW Plastic Cap Closure Machine

,

Automatic Plastic Bottle Cap Closure Machine

,

380V Tracking Type Closure Capping Machine



Automatic Plastic Cap Tracking Type Closure Capping Machine



Automatic Tracking Type Closure Capping Machine For Plastic Cap 0



Machine Description :

Full-automatic following lid-pressing machine is made up of lid unscrambler and lid conveyer, grasp and lid-pressing system, movement module,conveying mechanism and control system. The whole structure is succinct and convenient to adjust. It is suitable for the automatic lid-pressing for 500ml -5L bottle. This is a most recently develop machine of our company. The lid-pressing will be finished during the process of products movement.Differs from the nomal machine which need to pause when lid-pressing so that the materials will not shake out from the mouth of the bottleand pollute the bottle’s body.



Automatic Tracking Type Closure Capping Machine For Plastic Cap 1Automatic Tracking Type Closure Capping Machine For Plastic Cap 2



Major characteristics :

This is our newly developed tracking type capping machine, integrates bottle inlet, cap sort, cap feed, capping, bottle outlet together, bottle inlet by belt clamping and cap screwing by tracking capping head, during capping, the bottle will not stop, bottle moving and capping action at the same time, can avoid liquid spill, adopts servo control torque capping, harmless to bottle and cap, fast speed, safe and stable, high capping rate. Whole machine using PLC and touch screen automation control, widely applicability and convenient adjustment.



Automatic Tracking Type Closure Capping Machine For Plastic Cap 3



Technical parameters

1 Capacity ≤2200 bottles/hour
2 Percent of pass ≥99%
3 Applicable bottle type

Round bottle:φ50-140mmheight:230-340mm

Flat bottle:length 45-250mm width45-140mm height90-340mm

4 Caps specification φ30-65mm H15-30mm
5 Air pressure 0.6-0.8Mpa
6 Air pressure 380V 50HZ-60HZ
7 Power rate 2.5KW
8 Weight 1100KG
9 External dimension 2195x1300x2300(LxWxH)mm





After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
