| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | ISO,CE |
| Model Number: | STR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price Negotiable |
| Packaging Details: | Wooden Case Packaging |
| Delivery Time: | 3-50 Working Days |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000 SET |
| Model: | STRF-10 | Filling Range: | 100-5000ml |
|---|---|---|---|
| Filling Speed(BPH): | 2400-3000 | Filling Accuracy: | ±1%(it Depends On Filling Volume And Material) |
| Voltage: | 1.2KW/220V | Working Pressure: | 0.6-0.8MPA |
| Tank Volume: | 200L(can Be Customized) | Machine Weight(KG): | 550 |
| Outline Dimension(mm): | 2000*1400*2200 | Applicable Bottle Height（mm）: | 80-180(customized) |
| Applicable Bottle Diameter（mm）: | 60-100(customized) | ||
| High Light: | Anti Corrosion Bottle Liquid Filling Machine,Automatic Bottle Liquid Filling Machine,220V Plastic Filling Machine |
||

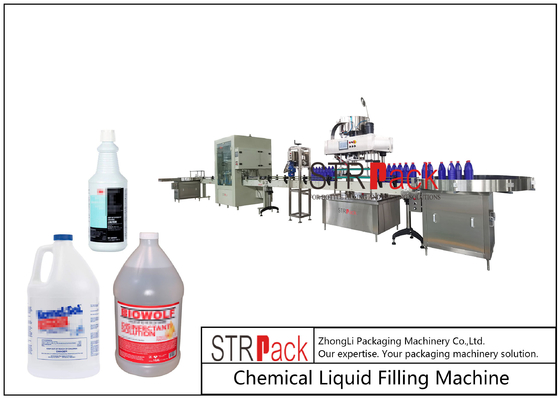

Plastic Filling Machine Filling Machines Automatic Bottle Anti-Corrosion Liquid Filling Machine
Automatic anticorrosive liquid filling machine:
This machine is a linear type automatic gravity vacuum filling machine. It specially used for filling strong corrosive liquids that can't contact the metal, such as cleansing liquid. The machine parts that contact the liquids are all made of nonmetal anticorrosive materials. The whole machine adopts non - metallic materials, which make it especially suitable for the filling of super - corrosive liquid, and it can meet the requirements of various specifications.
Technical parameters:
| Model | STRF-6 | STRF-8 | STRF-10 |
| Filling range | 100-5000ml | ||
| Filling speed(BPH) | 1400-1880 | 1920-2400 | 2400-3000 |
| Filling accuracy | ±1%(it depends on filling volume and material) | ||
| Voltage | 1KW/220V | 1.2KW/220V | 1.2KW/220V |
| Working pressure | 0.6-0.8MPA | ||
| Tank volume | 200L(can be customized) | ||
| Machine weight(KG) | 450 | 500 | 550 |
| Outline dimension(mm) | 2000*1300*2100 | 2000*1300*2100 | 2000*1400*2200 |
| Applicable bottle height(mm) | 80-180(customized) | ||
| Applicable bottle diameter(mm) | 60-100(customized) | ||
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
