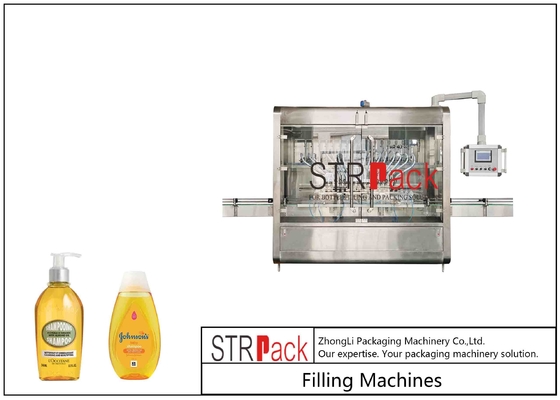

50Ml - 5000Ml Automatic Liquid Filling Machine For Bottle Shower Gel

50Ml - 5000Ml Automatic Liquid Filling Machine For Bottle Shower Gel

  • 50Ml - 5000Ml Automatic Liquid Filling Machine For Bottle Shower Gel
  • 50Ml - 5000Ml Automatic Liquid Filling Machine For Bottle Shower Gel
  • 50Ml - 5000Ml Automatic Liquid Filling Machine For Bottle Shower Gel
  • 50Ml - 5000Ml Automatic Liquid Filling Machine For Bottle Shower Gel
  • 50Ml - 5000Ml Automatic Liquid Filling Machine For Bottle Shower Gel
50Ml - 5000Ml Automatic Liquid Filling Machine For Bottle Shower Gel
Product Details:
Place of Origin: CHINA
Brand Name: STRPACK
Certification: ISO,CE
Model Number: STR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Wooden Case Packaging
Delivery Time: 3-50 Working Days
Payment Terms: TT/LC
Supply Ability: 1000 SET
Contact Now
Detailed Product Description
Model: STRF -16 Dimension: 2400(L)x1100(W)x2200mm(H)
Filling Head: 16 Capacity(1L): 4800B/H
Power: 3KW Suitable Bottle: Diameter:Φ40mm-Φ100mm Height:80mm-280mm
Neck Diameter: Φ18mm Filling Range: 100ml-5000ml
Air Pressure: 0.6Mpa--0.8Mpa Power Supply: 380V;50HZ/60HZ
High Light:

Shower Gel Filling Machine

,

5000ml Automatic Liquid Filling Machine

,

Bottle Shampoo Filling Machine

Hot Sale Automatic 50Ml-5000Ml Personal Care Products Bottle Liquid Shower Gel Detergent Soap Shampoo Filling Machine



50Ml - 5000Ml Automatic Liquid Filling Machine For Bottle Shower Gel 0



Features:

1.Different flling volume can be set on HMI directly,

2.Fast to adjust for different bottle with in 10-20 min.;

3.Servo motor driven, High Filling Accuracy with in ± 0.2%. (depends on the material and flling volume).

4.CE, ISO and SGS approved and production comply with GMP standard;

5.Hygienic tri-clamps connection , easy to remove and clean;

6.CIP cleaning function available;

7.Buffer tanks with level control system;

8.Mature alarm system for safe operation.

9.Adopts international first-class electric and pneumatic configuration; Mistubishi 1 Siemens 1 Delta PLC and touch screen,Schneider/ omron low Voltage electricals,and Autonics sensor.



Technical parameter:

Containers and Specifications(100mL-5000mL)
Model STRF-6 STRF -8 STRF -10 STRF -12 STRF -16
Dimension 2200(L)x1100(W)x2200mm(H) 2300(L)x1100(W)x2200mm(H) 2400(L)x1100(W)x2200mm(H)
Filling head 6 8 10 12 16
Capacity(1L) 1800B/H 2400B/H 3000B/H 3600B/H 4800B/H
Power 2.2KW 2.2KW 2.2KW 3KW 3KW
Suitable bottle Diameter:Φ40mm-Φ100mm Height:80mm-280mm
Neck diameter Φ18mm
Filling range 100ml-5000ml
Air pressure 0.6Mpa--0.8Mpa
Power supply 380V;50HZ/60HZ





50Ml - 5000Ml Automatic Liquid Filling Machine For Bottle Shower Gel 1



50Ml - 5000Ml Automatic Liquid Filling Machine For Bottle Shower Gel 2



50Ml - 5000Ml Automatic Liquid Filling Machine For Bottle Shower Gel 3



50Ml - 5000Ml Automatic Liquid Filling Machine For Bottle Shower Gel 4



After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
