| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | ISO,CE |
| Model Number: | STR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price Negotiable |
| Packaging Details: | Wooden Case Packaging |
| Delivery Time: | 3-50 Working Days |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000 SET |
| Model: | STRF -16 | Dimension: | 2400(L)x1100(W)x2200mm(H) |
|---|---|---|---|
| Filling Head: | 16 | Capacity(1L): | 4800B/H |
| Power: | 3KW | Suitable Bottle: | Diameter:Φ40mm-Φ100mm Height:80mm-280mm |
| Neck Diameter: | Φ18mm | Filling Range: | 100ml-5000ml |
| Air Pressure: | 0.6Mpa--0.8Mpa | Power Supply: | 380V;50HZ/60HZ |
| High Light: | Chemical Doser Bleach Acid Filling Machines,Automatic Bleach Acid Filling Machines,Pseudoephdrine HCL Automatic Liquid Filling Machine |
||

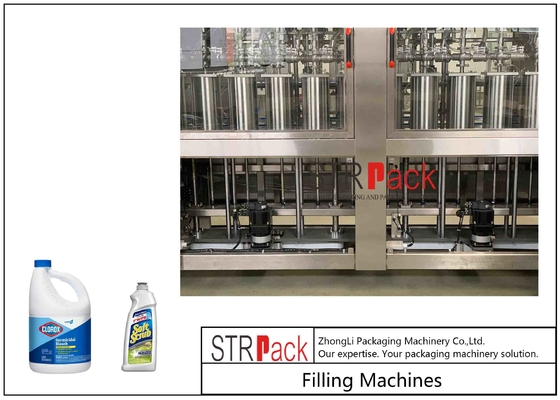

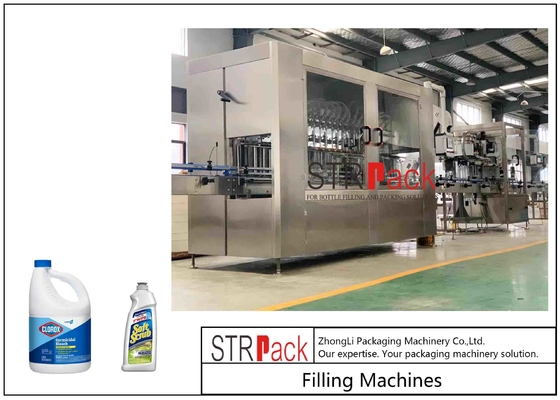

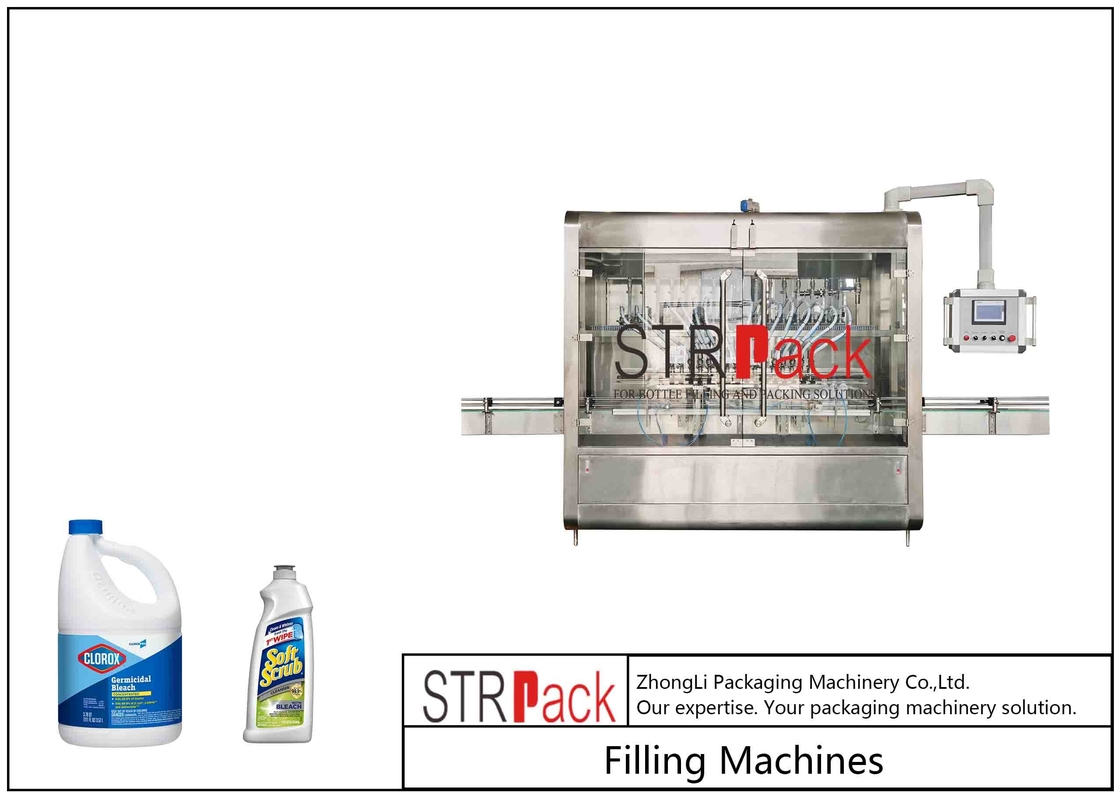

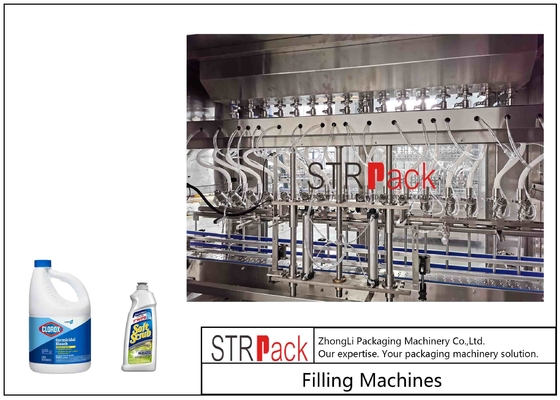

Automatic Bleach Filler Pseudoephdrine HCL Gravity Feed Chemical Doser Bleach Acid Filling Machines Packing Lines
Features:
1.Heavy duty plastic construction
2.Controls PVC / Polyurethane Contact Parts
3.Plastic reservoir
4.Acid resistant tabletop chain
5.Automatic product level sensing float system
6.Safety guarding
7.Easily adjustable nozzle height settings accommodate different height containers
8.Pneumatic indexing gates (count in, count out)
9.Able to output multiple doses per container for large containers
10.User friendly PLC controls with touch screen HMI
11.Easy clean stainless steel quick connect fittings
12.Neck grabbers for containers wtih small opening
13.No bottle/No fill
Technical parameter:
| Containers and Specifications(100mL-5000mL) | |||||
| Model | STRF-6 | STRF -8 | STRF -10 | STRF -12 | STRF -16 |
| Dimension | 2200(L)x1100(W)x2200mm(H) | 2300(L)x1100(W)x2200mm(H) | 2400(L)x1100(W)x2200mm(H) | ||
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(1L) | 1800B/H | 2400B/H | 3000B/H | 3600B/H | 4800B/H |
| Power | 2.2KW | 2.2KW | 2.2KW | 3KW | 3KW |
| Suitable bottle | Diameter:Φ40mm-Φ100mm Height:80mm-280mm | ||||
| Neck diameter | Φ18mm | ||||
| Filling range | 100ml-5000ml | ||||
| Air pressure | 0.6Mpa--0.8Mpa | ||||
| Power supply | 380V;50HZ/60HZ | ||||
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
