| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | ISO,CE |
| Model Number: | STR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price Negotiable |
| Packaging Details: | Wooden Case Packaging |
| Delivery Time: | 3-50 Working Days |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000 SET |
| Capacity: | ≤2200 Bottles/hour | Percent Of Pass: | ≥99％ |
|---|---|---|---|
| Applicable Bottle Type: | Round Bottle:φ50-140 Height: 230-340mm Flat Bottle:Length:45-250mm Width:45-140 Height:90-340mm | Cap’s Specification: | φ30-65mm H15-30mm |
| Air Pressure: | 0.6-0.8Mpa | Power Source: | 380V/220V: 50-60HZ |
| Power: | 2.5kw | Weight: | 1100kg |
| High Light: | Laundry Cap Closure Machine,Insert Plug Cap Capper,2.5kw Cap Closure Machine |
||

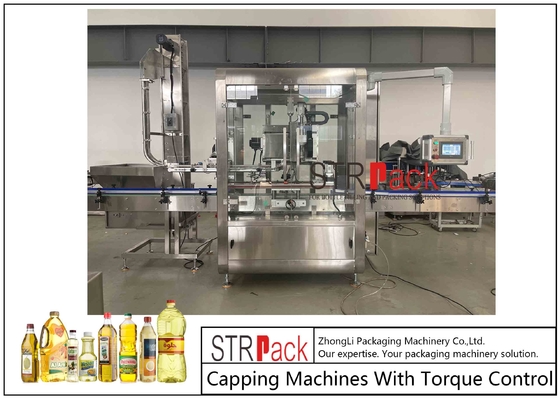

Laundry Cap Insert Plug Capper Closure Capping Machine
Laundry Cap Insert Plug Capper Closure Capping Machine Automatic Plastic Cap Tracking Type Closure Capping Machine For Plastic Caps without change parts One / two capping heads can be choosen
Machine Description :
FXT-2A full-automatic following lid-pressing machine is made up of lid unscrambler and lid conveyer, grasp and lid-pressing system, movement module,conveying mechanism and control system. The whole structure is succinct and convenient to adjust. It is suitable for the automatic lid-pressing for 500ml -5L bottle. This is a most recently develop machine of our company. The lid-pressing will be finished during the process of products movement.Differs from the nomal machine which need to pause when lid-pressing so that the materials will not shake out from the mouth of the bottleand pollute the bottle’s body.
Major Characteristics :
This is our newly developed tracking type capping machine, integrates bottle inlet, cap sort, cap feed, capping, bottle outlet together, bottle inlet by belt clamping and cap screwing by tracking capping head, during capping, the bottle will not stop, bottle moving and capping action at the same time, can avoid liquid spill, adopts servo control torque capping, harmless to bottle and cap, fast speed, safe and stable, high capping rate. Whole machine using PLC and touch screen automation control, widely applicability and convenient adjustment.
Containers and Specifications:
| 1 | Capacity | ≤2200 bottles/hour |
| 2 | Percent of pass | ≥99％ |
| 3 | Applicable Bottle Type |
Round bottle:φ50-140 Height: 230-340mm Flat bottle:Length:45-250mm Width:45-140 Height:90-340mm |
| 4 | Cap’s specification | φ30-65mm H15-30mm |
| 5 | Air pressure | 0.6-0.8Mpa |
| 6 | Power Source | 380V/220V: 50-60HZ |
| 7 | Power | 2.5kw |
| 8 | Weight | 1100kg |
| 9 | External Dimension | 2195 x 1300 x 2300mm(LxWxH) |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
