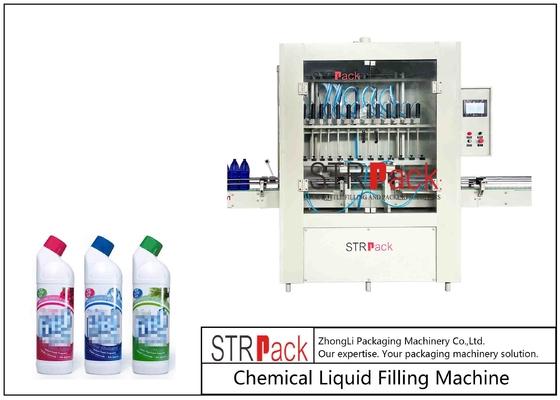

Gravity Automatic Liquid Filling Machine 60Hz Household Products

Gravity Automatic Liquid Filling Machine 60Hz Household Products

Gravity Automatic Liquid Filling Machine 60Hz Household Products
video
Gravity Automatic Liquid Filling Machine 60Hz Household Products
Product Details:
Place of Origin: CHINA
Brand Name: STRPACK
Certification: ISO,CE
Model Number: STR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Wooden Case Packaging
Delivery Time: 3-50 Working Days
Payment Terms: TT/LC
Supply Ability: 1000 SET
Contact Now
Detailed Product Description
Capacity: Max 4000 Bottles Per Hour Filling Volume: 50-1000ml, 1000ml-5000ml
Measurement Precision: 50-200ml: ±1%; 200ml-1000ml:±0.5%; 1L-5L: ±0.5% Applicable Bottle Diameter: 40-100mm
Applicable Bottle Height: 60-300mm Air Pressure: 0.6Mpa
Total Power: 1kw, 1.5Kw Voltage: AC220V,50/60Hz
Net Weight: 900kg
High Light:

100mm Gravity Filling Machine

,

60Hz Automatic Gravity Filling Machine

,

Gravity Automatic Liquid Filling Machine

Household Products Gravity Filling Machine



Suitable For The Liquids :

This time filling machine is best suited for liquids with very thin and Foamy viscosities that do not change with ambient temperature or with batch variation. Water, vinegar, soy sauce, oil, alcohol, solvent, mouth wash, cleaner, bleach are good examples and even corrosive liquid and chemicals.

Gravity filling machines are the most economical and easy to operate filling machines but have the limit to filling free flowing liquids with very thin viscosity that do not change with ambient temperature or with batch variation. It's widely used to fill food and beverage, cleaning and specialty chemical, pharmaceutical, cosmetic and personal care industries for various low viscous filling projects.



Machine Description :

Time gravity filling machine is the most economical type of time filling machine for a limited range of applications.

The time filling machines work by a simple principle. Liquid is pumped into a holding tank above a set of pneumatically operated valves. Each valve is independently timed by the time flow filling machine master computer so that the precise amount of the liquid will flow by gravity into the containers, Independent timing of each filling valve/nozzle corrects for minor variations in flow rates so that each container is filled accurately. An automatic product level sensing float system detects level of the liquid to maintain pressure so that liquid can flow into containers fast and evenly. When liquid level is low, pump is on, liquid is pumped into holding tank, when liquid reaches high level, pump is off.



Main Technical Parameter:

1.Capacity max 4000 bottles per hour
2.Filling volume 50-1000ml, 1000ml-5000ml
3.Measurement precision 50-200ml: ±1%; 200ml-1000ml:±0.5%; 1L-5L: ±0.5%
4.Applicable bottle diameter 40-100mm
5.Applicable bottle height 60-300mm
6.Air pressure 0.6Mpa
7.Total power 1kw, 1.5Kw
8.Voltage AC220V,50/60Hz
9.Net weight 900kg
10.Dimension 2200(L)×710(W)×2200(H)mm



Gravity Automatic Liquid Filling Machine 60Hz Household Products 0



Gravity Automatic Liquid Filling Machine 60Hz Household Products 1



Gravity Automatic Liquid Filling Machine 60Hz Household Products 2



Gravity Automatic Liquid Filling Machine 60Hz Household Products 3



Gravity Automatic Liquid Filling Machine 60Hz Household Products 4



After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
