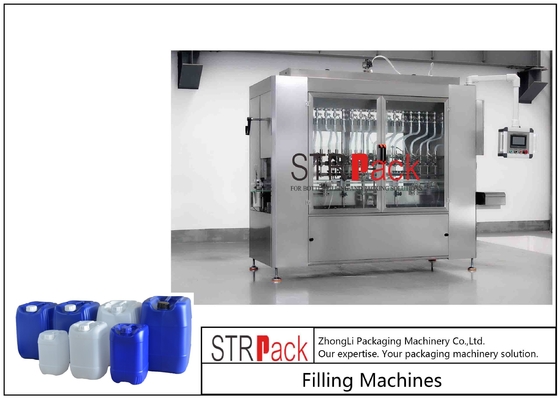

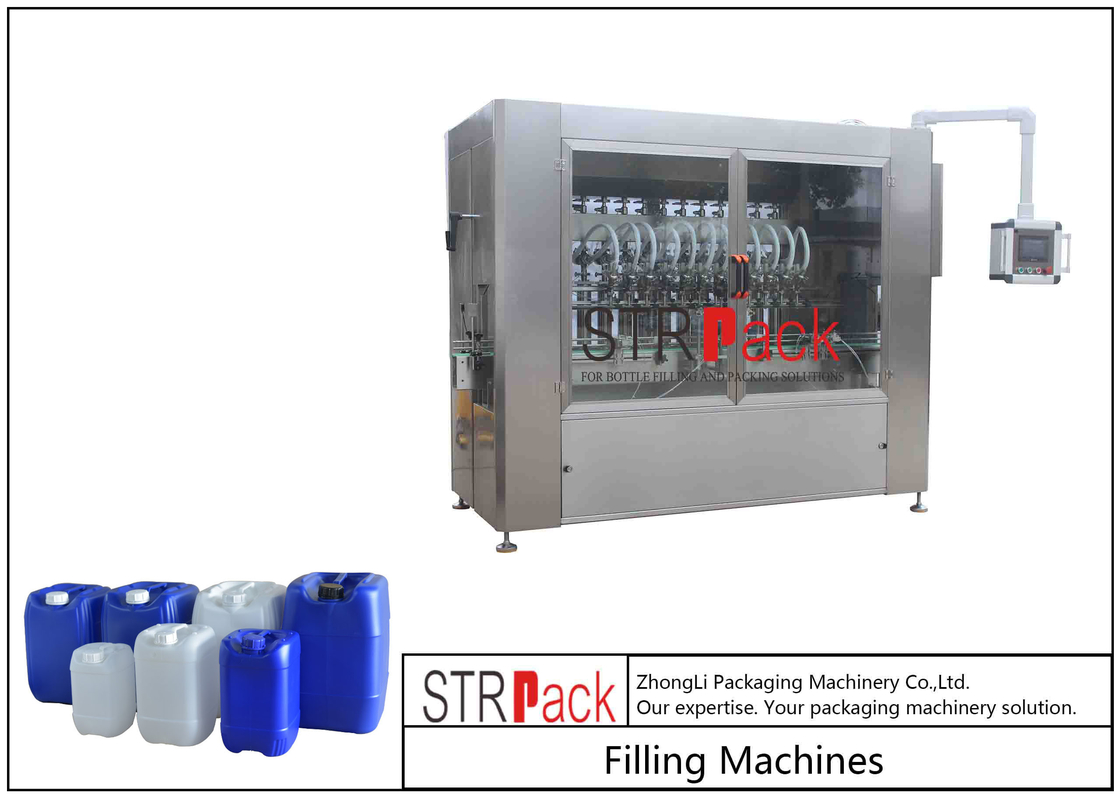

30L Drum Gallons Net Weight Filling Machine 350B / H 3KW

30L Drum Gallons Net Weight Filling Machine 350B / H 3KW

30L Drum Gallons Net Weight Filling Machine 350B / H 3KW
video
30L Drum Gallons Net Weight Filling Machine 350B / H 3KW
Product Details:
Place of Origin: CHINA
Brand Name: STRPACK
Certification: ISO,CE
Model Number: STR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Wooden Case Packaging
Delivery Time: 3-50 Working Days
Payment Terms: TT/LC
Supply Ability: 1000 SET
Contact Now
Detailed Product Description
Model: STRF-6 Filling Head: 6
Capacity(10L): 350B/H Capacity(20L): 300B/H
Power: 3KW Barrel Neck Diameter: ≥φ40mm
Filling Error: ≤±0.5%F.S Filling Range: 10kg-30kg
Air Pressure: 0.6Mpa-0.8Mpa Power Supply: 220V/380: 50-60HZ
High Light:

Net Weight Drum Gallon Filling Machine

,

30L Net Weight Filling Machine

,

Net Weight Filling Machine 350B/H

5L-30L Drum Gallons Net Weight Filling Machine



5L-30L Drum Gallons Net Weight Filling Machine Net weight Type Filling Machine High Accuracy : 0.1% Suitable for : Lubricant Oil / Car Oil / Motor Oil / Coolant liquid / Engine Oil /Brake Oil ...Etc kinds Products Edible Cooking Oil Agrochemical / Fertilizer / Pesticide / chemical ...



Key Features :

1.Heavy-duty stainless steel constructed

2.Stainless steel Reservoir

3.Automatic Bottling Index kit with bottle counter

4.Pneumatic indexing gates (count in, count out)

5.Automatic product level sensing float system

6. Easily adjustable nozzle height settings accommodate vials to gallons

7.User friendly PLC controls with touch screen HMI

8.No bottle/No fill sensor

9.Bottle backup sensor (downstream) delays operation until jam is cleared

10.Able to output multiple doses per container for large containers

11. Easy clean stainless steel quick connect fittings

12.Drip Tray

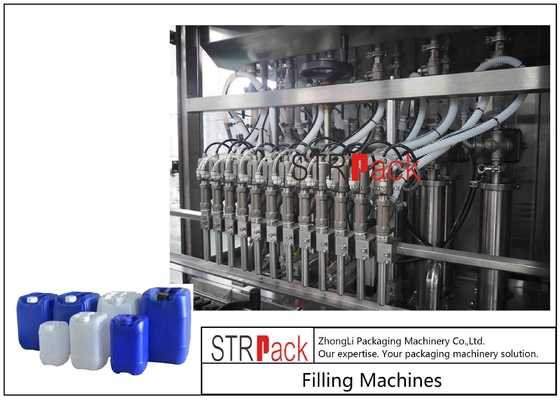

13.Diving heads nozzles for bottom up filling to reduce foam

14.Neck grabbers for containers with small opening



Technical Parameter:

Model STRF-4 STRF-6
Dimension 3000 x 1700 x 2300mm 3600 x 1700 x 2300mm
Filling head 4 6
Capacity(10L) 300B/H 350B/H
Capacity(20L) 250B/H 300B/H
Power 2KW 3KW
Suitable bottle L:160-360mm W:100-300mm H:250-500mm L:160-360mm W:100-300mm H:250-500mm
Barrel neck diameter ≥φ40mm
Filling error ≤±0.5%F.S
Filling range 10kg-30kg
Air pressure 0.6Mpa-0.8Mpa
Power supply 220V/380: 50-60HZ



30L Drum Gallons Net Weight Filling Machine 350B / H 3KW 0



30L Drum Gallons Net Weight Filling Machine 350B / H 3KW 1



30L Drum Gallons Net Weight Filling Machine 350B / H 3KW 2



30L Drum Gallons Net Weight Filling Machine 350B / H 3KW 3



30L Drum Gallons Net Weight Filling Machine 350B / H 3KW 4



30L Drum Gallons Net Weight Filling Machine 350B / H 3KW 5


After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
