50ml Servo Piston Filling Machine Pesticide Fertilizer 4800B / H

50ml Servo Piston Filling Machine Pesticide Fertilizer 4800B / H

50ml Servo Piston Filling Machine Pesticide Fertilizer 4800B / H
video
50ml Servo Piston Filling Machine Pesticide Fertilizer 4800B / H
Product Details:
Place of Origin: CHINA
Brand Name: STRPACK
Certification: ISO,CE
Model Number: STR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Wooden Case Packaging
Delivery Time: 3-50 Working Days
Payment Terms: TT/LC
Supply Ability: 1000 SET
Contact Now
Detailed Product Description
Model: STR -16A Dimension: 2200mm(L)x 1100mm(W)x 2200(H)
Filling Head: 16 Capacity(1L): 4800B/H
Power: 3kw Suitable Bottle: Diameter:φ40mm-φ100mm Height:80mm-280mm
Neck Diameter: φ18mm Filling Range: 50ml-1000ml
Air Pressure: 0.6Mpa-0.8Mpa Power Supply: 380V/220V 50HZ-60HZ
High Light:

Pesticide Fertilizer Filling Machine

,

50ml Servo Piston Filling Machine

,

Servo Piston Filling Machine

50ml -1000ml Pesticide Fertilizer Servo Piston Filling Machine



50ml -1000ml Pesticide Fertilizer Servo Piston Filling Machine Suitable for : Pesticide / Fertilizer / Chemicals / Agrochemical Products Filling Range : 50ml -1000ml / 1L-5L Capacity Speed : 1000-6000BPH can be choosen No Leaking , No Bottle No Filling Less worker Meet GMP Standard.

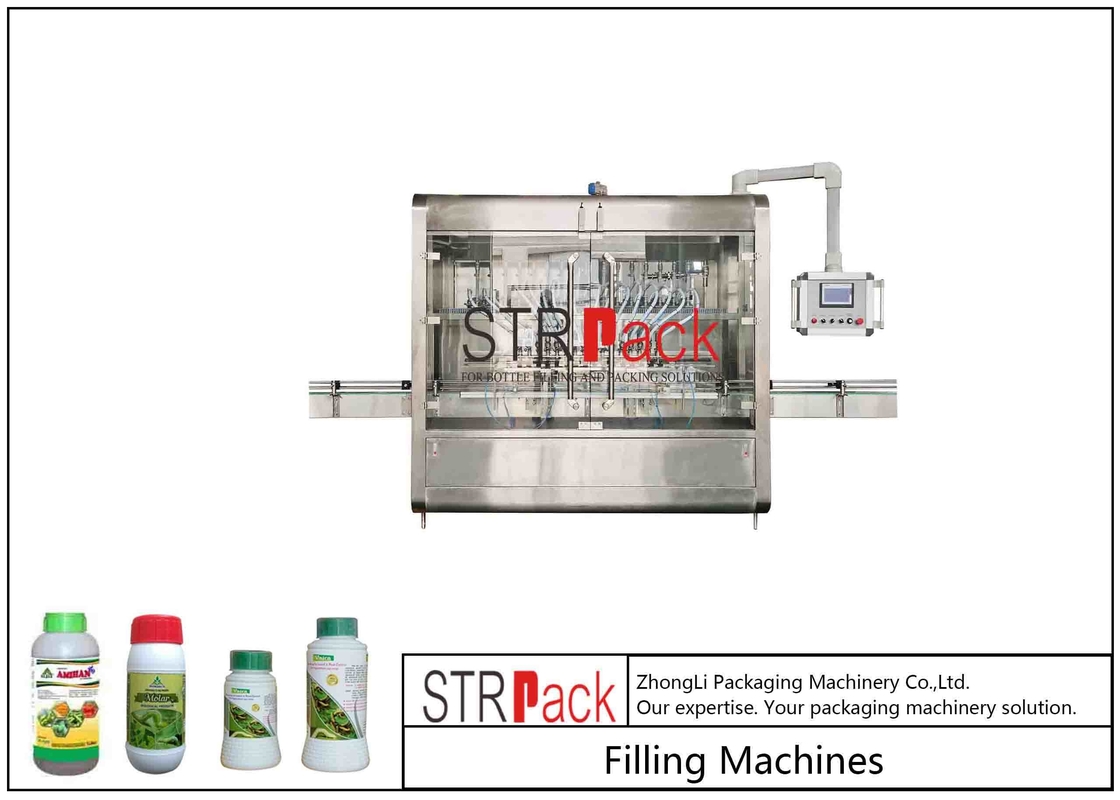

This machine is a Servo Piston Type filling machine with high filling accuracy. It applies 50ml-1000ml liquid for filling.

It is widely use for agrochemical SC,pesticide , SC Filling Packing

It is produced with the GMP standards, safety, environmental hygienism, beautiful and adapt to different kinds of work place.



Key Features :

1.Heavy-duty stainless steel constructed

2.Stainless steel Reservoir

3.Automatic Bottling Index kit with bottle counter

4.Pneumatic indexing gates (count in, count out)

5.Automatic product level sensing float system

6. Easily adjustable nozzle height settings accommodate vials to gallons

7.User friendly PLC controls with touch screen HMI

8.No bottle/No fill sensor

9.Bottle backup sensor (downstream) delays operation until jam is cleared

10.Able to output multiple doses per container for large containers

11. Easy clean stainless steel quick connect fittings

12.Drip Tray

13.Diving heads nozzles for bottom up filling to reduce foam

14.Neck grabbers for containers with small opening



Technical Parameter

Model STR-6A STR -8A STR -10A STR -12A STR -16A
Dimension 2200mm(L)x 1100mm(W)x 2200(H) 2200mm(L)x 1100mm(W)x 2200(H) 2200mm(L)x 1100mm(W)x 2200(H)
Filling head 6 8 10 12 16
Capacity(1L) 1800B/H 2400B/H 3000B/H 3600B/H 4800B/H
Power 2.2kw 2.2kw 2.2kw 3kw 3kw
Suitable bottle Diameter:φ40mm-φ100mm Height:80mm-280mm
Neck diameter φ18mm
Filling range 50ml-1000ml
Air pressure 0.6Mpa-0.8Mpa
Power supply 380V/220V 50HZ-60HZ



50ml Servo Piston Filling Machine Pesticide Fertilizer 4800B / H 0



50ml Servo Piston Filling Machine Pesticide Fertilizer 4800B / H 1



50ml Servo Piston Filling Machine Pesticide Fertilizer 4800B / H 2



50ml Servo Piston Filling Machine Pesticide Fertilizer 4800B / H 3



50ml Servo Piston Filling Machine Pesticide Fertilizer 4800B / H 4



50ml Servo Piston Filling Machine Pesticide Fertilizer 4800B / H 5


After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
