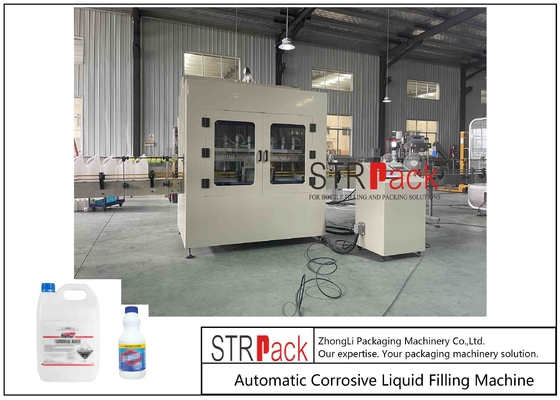

Automatic Corrosive Liquid Filling Machine 220V 1000ML

Automatic Corrosive Liquid Filling Machine 220V 1000ML

  • Automatic Corrosive Liquid Filling Machine 220V 1000ML
  • Automatic Corrosive Liquid Filling Machine 220V 1000ML
  • Automatic Corrosive Liquid Filling Machine 220V 1000ML
  • Automatic Corrosive Liquid Filling Machine 220V 1000ML
  • Automatic Corrosive Liquid Filling Machine 220V 1000ML
Automatic Corrosive Liquid Filling Machine 220V 1000ML
Product Details:
Place of Origin: CHINA
Brand Name: STRPACK
Certification: ISO,CE
Model Number: STR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Wooden Case Packaging
Delivery Time: 3-50 Working Days
Payment Terms: TT/LC
Supply Ability: 1000 SET
Contact Now
Detailed Product Description
Filling Range: 1000ML (filling Volume Can Be Set Through Touch Screen) Filling Accuracy: ±1%
Filling Speed: 1 .5circles Per Minute. Working Air Pressure: 6-7kg/c㎡
Operation Voltage: 220V (available To Be Customized)
High Light:

Corrosive Liquid Filling Machine Automatic

,

Corrosive Liquid Filling Machine 1000ML

,

Automatic 220V Corrosive Liquid Filling Machine

Automatic Corrosive Liquid Filling Machine



Introduction

It is specially used for high corrosive liquid, such as bleach liquid, 84 disinfection liquid, toilet clean fluid, bleach liquid and so on. And also has a function of Dive filling, which depend on buyers, also we can make it no drive filling. With features, such as precise filling volume, no drip, photoelectric detection, no filling when without bottle.



Features

1.Machine is made of anti-corrosive PP material, not made of PVC and stainless steel,including tank / body / filling nozzles / screws. Machine filling nozzles are made of PE, the best for anti-corrosive. Filling nozzles in newest design –made of PE and sealed well. (Optional: Titanium alloy for filling nozzles)

Machine PLC is in Japan Mitsubishi.

2.Machine is in GRAVITY FILLING type, which works for NOT sticky , but high corrosive liquid.

3.Filling by gravity. If has foam, diving filling system and Install a stopper in filling nozzles, which works like a stopper in wine bottle, surely no dripping.

4.Is widely used to fill corrosive liquid into straight neck bottles. Also one set machine, can be used to fill oblique neck bottle, only need to change a plate, very convenient.

5.Can fill corrosive liquid both with Viscosity or not, need to add piston device for liquid in viscosity .

6.Also other models in different quantity of filling heads (6, 8, 10, 12, or more)

7.Made of PP material. Newest design in structure, More stronger for anti-corrosive and 100% percent no liquid leaking. PP is the best material for anti-corrosive function, much better and stronger than PVC and stainless steel.



Specifications

Filling range 1000ML (filling volume can be set through touch screen)
Filling accuracy ±1%
Filling speed 1 .5circles per minute.
Working air pressure 6-7kg/c㎡
Operation voltage 220V (available to be customized)



Automatic Corrosive Liquid Filling Machine 220V 1000ML 0



Automatic Corrosive Liquid Filling Machine 220V 1000ML 1



Automatic Corrosive Liquid Filling Machine 220V 1000ML 2



Automatic Corrosive Liquid Filling Machine 220V 1000ML 3



Automatic Corrosive Liquid Filling Machine 220V 1000ML 4



Automatic Corrosive Liquid Filling Machine 220V 1000ML 5



FAQ
1---If have stock machine?
For semi automatice machine, we all have stock. Can ship within 7 working days. For automatic machine, all have no stock. Automatic machines are customized made according to bottles and caps. It need place the order, then manufacture.
2---How long time to make?
For single machine, it takes from 10~30 working days. For whole filling line, it takes from 40~60 working days.
3---Ship from which port?
If by air, it is from Shanghai International Airport. If by sea, it is from Shanghai or Ningbo. Other seaport of China is also accepted.

4---The payment?
By TT. 50% in advance as downpayment , 50% balance before shipping.

-If can visit factory to check machines firstly, then place order?
Sure! Welcome to visit us !




After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
