Capacity 6000BPH Rotary Bottle Capper Equipment 3kw 80mm Height

Capacity 6000BPH Rotary Bottle Capper Equipment 3kw 80mm Height

  • Capacity 6000BPH Rotary Bottle Capper Equipment 3kw 80mm Height
  • Capacity 6000BPH Rotary Bottle Capper Equipment 3kw 80mm Height
  • Capacity 6000BPH Rotary Bottle Capper Equipment 3kw 80mm Height
  • Capacity 6000BPH Rotary Bottle Capper Equipment 3kw 80mm Height
Capacity 6000BPH Rotary Bottle Capper Equipment 3kw 80mm Height
Product Details:
Place of Origin: CHINA
Brand Name: STRPACK
Certification: ISO,CE
Model Number: STR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Wooden Case Packaging
Delivery Time: 3-50 Working Days
Payment Terms: TT/LC
Supply Ability: 1000 SET
Contact Now
Detailed Product Description
Diameter: Φ40mm~Φ100mm Height: 80mm~280mm
Power Supply: AC 380V; 50Hz Power: 3kw
Pneumatic: 0.6 Mpa Weight: About 980 Kg
High Light:

6000BPH Rotary Bottle Capper Equipment

,

Bottle Capper Equipment 3kw

,

80mm Height Bottle Capper Equipment

Automatic 8 heads Rotary Bottle Rotary Capping Machine For Laundry Detergent Cleaner

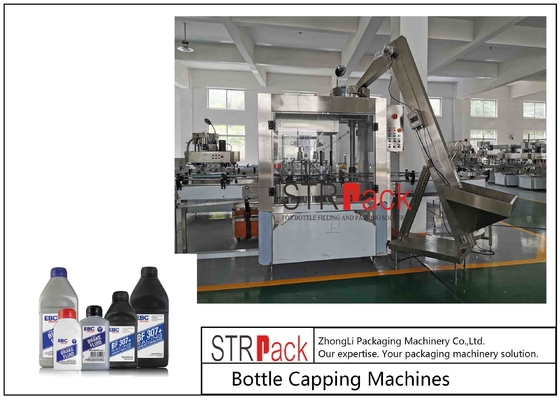

The STRPACK Rotary Bottle Capper Equipment are versatile rotary capping systems designed to complement high speed rotary bottling equipment. These flexible rotary cappers continuously sort, apply, and torque caps to a variety of different container sizes and shapes. The STRPACK Rotary Bottle Capper comes standard with mechanical friction clutches to ensure that accurate and uniform torque values are applied to each container for optimal closure results. They can be easily integrated into existing packaging lines or tailored for your new project specs.

The STRPACK Rotary Bottle Capper are available in two model sizes, the XC-8 and the XG-12, with operational speeds up to 80 CPM and 150 CPM respectively. (Higher speeds possible depending on container and cap characteristics.) Each STRPACK Rotary Bottle Capper can accommodate a range of container and cap sizes with minimal change parts. This makes them the perfect capper for customers or contract packagers who plan to run multiple products on a single bottling line. All cappers have color touch screen displays featuring a full management interface for complete efficiency control. Up to 99 job recipes can be saved making changeover from one project to another smooth and simple.



Recommended products for this machine
Water bottle caps, condiment container caps, sport caps



Features



  • Adaptable to a wide range of caps and containers
  • Speeds up to 200 CPM
  • Up to 20 AC motor drive chuck capping stations
  • Automatic “No Bottle – No Cap” system
  • Centrifugal cap orientation and delivery
  • Powered height control
  • Single point grease system for easy maintenance
  • Touch screen controls with job memory
  • Adjustable mechanical friction clutches
  • Quick swap change parts


Options

  • Neck stabilizer for weak walled containers

  • Low cap supply sensor and alarms

  • Anti-rotation upgrade for round containers (Cam or Belt operated)

  • QA sensor and alarm for miss-aligned or missing caps

  • Custom chuck head upgrades (Vacuum, teeth)

  • Magnetic or Pneumatic clutches



Model Num. of heads production capacity
SP-4 4 About 3000 BPH
SP-8 8 About 6000 BPH
SP-12 12 About 8000 BPH





Main technical parameters:



Cap Type: Screw or Lug
Air Requirements: 90 PSI @ 3 CFM
Electical Requirements: 220/240 VAC, 20 AMP, 3 Phase
Cap Range: 1u0094 – 6u0094 (25mm – 152mm) OD
Container Range: 1u0094 – 9u0094 (228.6mm – 152mm) OD**
model: High Speed Rotary Bottle Capper
height: 89
length: 54-62
width: 61-73
weight: 2350 lbs. (1065 kg)
speed: Up to 240 CPM*

Capacity 6000BPH Rotary Bottle Capper Equipment 3kw 80mm Height 0

Capacity 6000BPH Rotary Bottle Capper Equipment 3kw 80mm Height 1

Capacity 6000BPH Rotary Bottle Capper Equipment 3kw 80mm Height 2

Capacity 6000BPH Rotary Bottle Capper Equipment 3kw 80mm Height 3

FAQ


1---If have stock machine?
For semi automatice machine, we all have stock. Can ship within 7 working days. For automatic machine, all have no stock. Automatic machines are customized made according to bottles and caps. It need place the order, then manufacture.

2---How long time to make?
For single machine, it takes from 10~30 working days. For whole filling line, it takes from 40~60 working days.

3---Ship from which port?
If by air, it is from Shanghai International Airport. If by sea, it is from Shanghai or Ningbo. Other seaport of China is also accepted.

4---The payment?
By TT. 50% in advance as downpayment , 50% balance before shipping.

-If can visit factory to check machines firstly, then place order?
Sure! Welcome to visit us !




After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
