Full Automatic Cassette Gas Filling Machine 200ml 3500Cans/H

Full Automatic Cassette Gas Filling Machine 200ml 3500Cans/H

  • Full Automatic Cassette Gas Filling Machine 200ml 3500Cans/H
  • Full Automatic Cassette Gas Filling Machine 200ml 3500Cans/H
  • Full Automatic Cassette Gas Filling Machine 200ml 3500Cans/H
  • Full Automatic Cassette Gas Filling Machine 200ml 3500Cans/H
Full Automatic Cassette Gas Filling Machine 200ml 3500Cans/H
Product Details:
Place of Origin: CHINA
Brand Name: STRPACK
Certification: ISO,CE
Model Number: STR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Wooden Case Packaging
Delivery Time: 3-50 Working Days
Payment Terms: TT/LC
Supply Ability: 1000 SET
Contact Now
Detailed Product Description
Single Head Gas Filling Volume (ml): 30~200 Gas Filling Accuracy (%): ≤±1
Compressed Air Pressure(Mpa): 0.65~1.0 Air Consumption(m3/min) Accuracy Height: 0.8
Applicable Aerosol Cans Diameter(mm): 35~70 Applicable Aerosol Height(mm): 100~200
Capacity (Cans/hr): 2000~3500
High Light:

200ml Cassette Gas Filling Machine

,

3500Cans/H Cassette Gas Filling Machine

,

LPG Cassette Gas Filling Machine

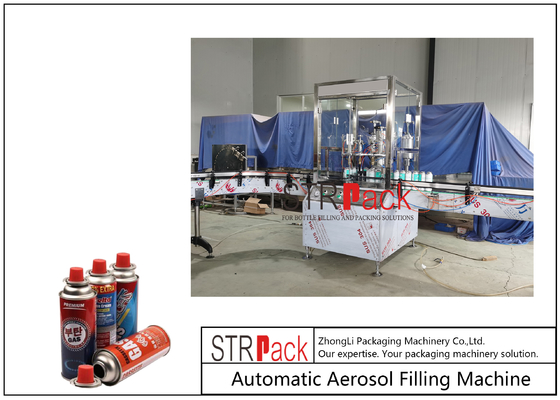

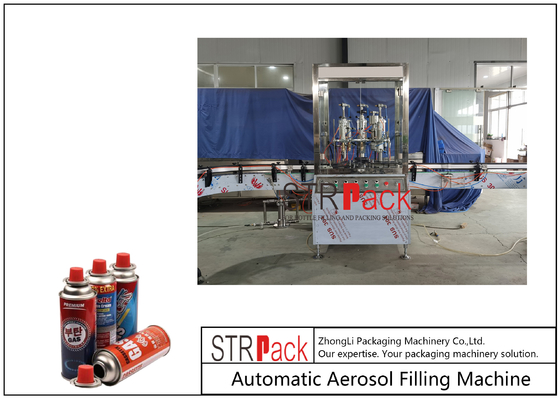

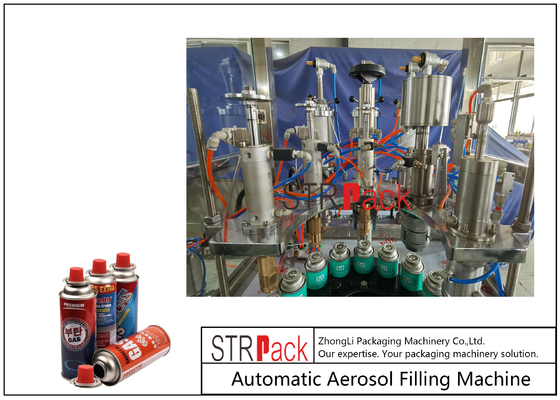

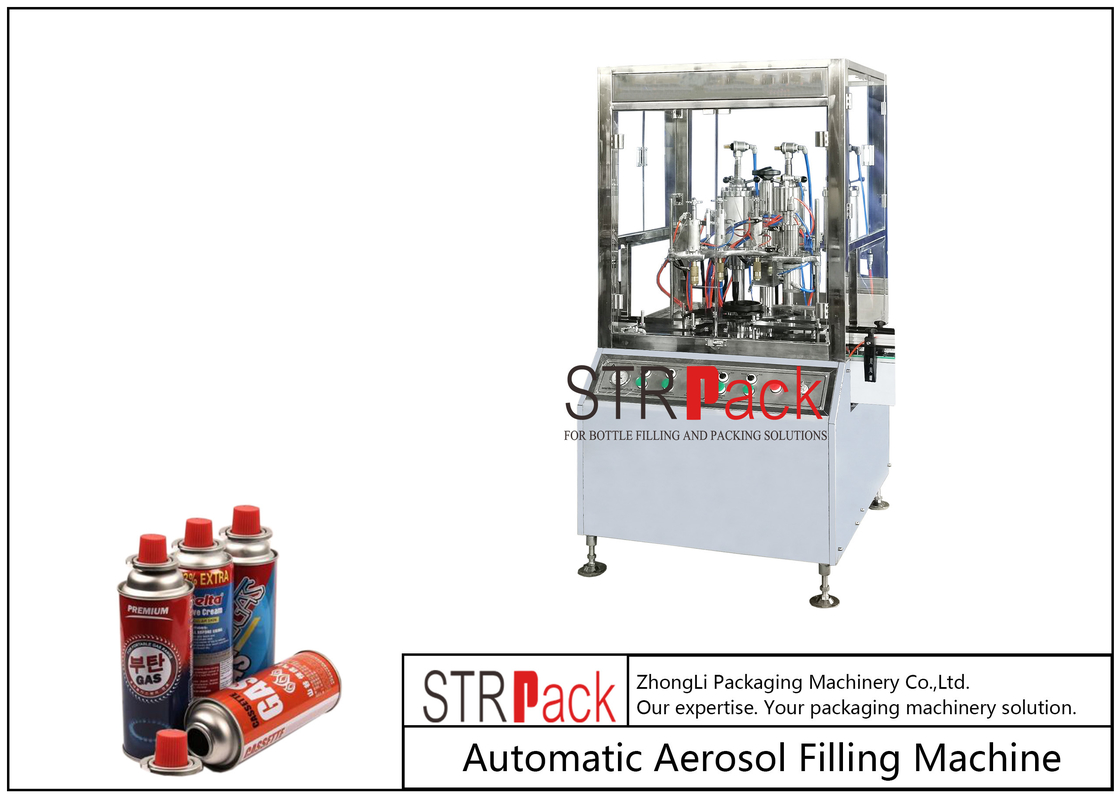

Full automatic cassette gas filling machine

This butane gas filling machine includes bottle arrange machine, cassette gas valve feeding machine, vacuuming filler, capper, inflator, small caps presser, conveyer belt, explosion proof motor, etc. Cassette gas cartridge aerosol filling line can also be equipped with labeler, weighing machine, water bath leakage teste, etc. for improving the automation of production line and achieving the goal of reducing staff.



Features

LPG gas cartridge filling machine adopts air pressure transmission mechanical structure to eliminate the unsafe factors of sparking when using electricity, which can meet the requirements of fire and explosion protection. The sealing system and the gas filling system can adopt independent control or linkage control.

The capper is used for internal expansion sealing all types of aerosol cans with 1 inch valves.

Adopts automatic vacuum pumping system, the filled gas is pure and pollution-free.

The inflator system with German Tetrafluorine sealing gasket is anti-friction and corrosion-resistant.

Reliable working, simple operation, convenient maintenance, small occupied area.

Because the capping speed is faster than the inflation speed, the customer can choose the double inflatable system to improve the working efficiency according to high yield requirement.

Both tinplate can and aluminum can are applicable.



Technical parameter

Single head gas filling volume (ml) 30~200
Gas filling accuracy (%) ≤±1
Compressed air pressure(Mpa) 0.65~1.0
Air consumption(m3/min) 0.8
Applicable aerosol cans diameter (mm) 35~70
Applicable aerosol height(mm) 100~200
Capacity (Cans/hr) 2000~3500



Factory Automatic Aerosol Filling Machine,
Aerosol Filling Line,
Full automatic cassette gas filling machine,
Medical Spray Sunscreen Spray Production Machine,
Automatic Insecticide Aerosol Filling Machine,
Insecticide Aerosol Filling Machine,
Aerosol Spray Can Filling Machine,
Body Spray Filling Machine,
Automatic Air Freshener Filling Machine,
Aerosol Gas Filling and Crimping Machine,
Full Automatic Aerosol Filling Machine for Spray Paint Production,
Aerosol Spray Paint Filling Solutions Provider.



After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
