| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | CE |
| Model Number: | 450G Coffee Powder Gusseted Bag Vertical Form Fill Seal Machine With Auger Filler Automatic Powder Packaging Machine |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 SET/MONTH |
| Bag Type: | Pillow Bag, Gusseted Bag/Flat Bottom Bag | Speed: | Up To 100 Bags/min |
|---|---|---|---|
| Bag Length: | 50-340mm | Film Thickness: | 0.04-0.12mm |
| Voltage: | AC 220V/ 50HZ， 1phase Or Per Customer Needs | ||
| Highlight: | 5000G Pouch Packing Machine,100bags/min Pouch Packing Machine,Gusseted Pouch Packing Machine |
||
Usage:
Suitable for measuring and packing anomalous lumpish and granule materials, such as candy, popped food, biscuit,roasted seeds and nuts, granulated sugar, deep-frozen food, milk powder, milk tea, amylum, sauce and so on.
Product description:

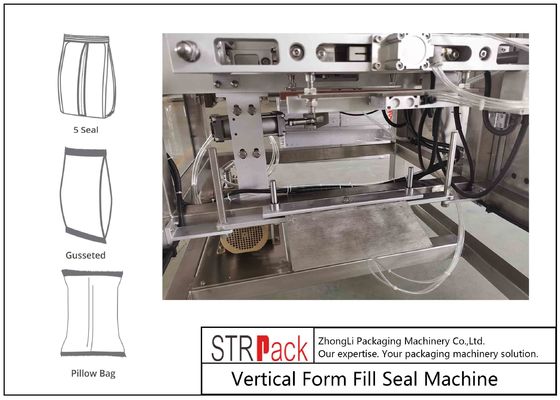

This machine integrates bag-making, filling, sealing, printing, punching and counting into one. It adopts servomotor for film pulling with timing belt and has automatic meander correction function. PLC control apparatuses all adopt international famous brand products with reiable performance. Both transverse and longitudinal seal mechanism adopt pneumatic system with stable and reliable action. Advanced design ensures that this machine fits different industrial sectors with very convenient adjustment, operation and maintenance during its service. It can be used with various types of automatic metering equipments at home and abroad.
Technical parameters:
| Model | GVF-260F |
| Bag Type | Pillow bag, Gusseted bag/Flat bottom bag |
| Operation Mode | Intermittent |
| Speed | Up to 100 bags/min |
| Bag Length | 50-340mm |
| Bag Width | 80-260mm |
| Reel Film Width | 420mm |
| Film Thickness | 0.04-0.12mm |
| Packing material outer diameter | Ф450mm |
| Packaging materials Neijin | Ф75mm |
| Voltage | AC 220V/ 50HZ, 1phase or per customer needs |
| Power Consumption | 3KW |
| Compressed Air Requirement | 0.6MPa,0.36 M3 / Min |
| Dimension | 1355x1257x1601mm(L x W x H) |
| Weight | 800KG |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
