| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | CE |
| Model Number: | Coffee Packaging Machine Coffee Powder Vertical Packing Machine With Screw Auger Filling Machine |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 SET/MONTH |
| Bag Type: | Pillow Type Bag; Gusseted Bag (Option);punching Bag | Speed: | 30 To 80 Bags/min |
|---|---|---|---|
| Reel Film Width: | ≤730mm (28.7in) | Film Thickness: | 0.04-0.12mm (40-120mic.) |
| Reel Outer Dia.: | 400mm (15.6in) | Reel Inner Dia.: | 75mm (2.9in) |
| High Light: | 80bags/min Coffee Powder Packing Machine,400mm Auger Powder Filling Machine,CE Screw Auger Filling Machine |
||

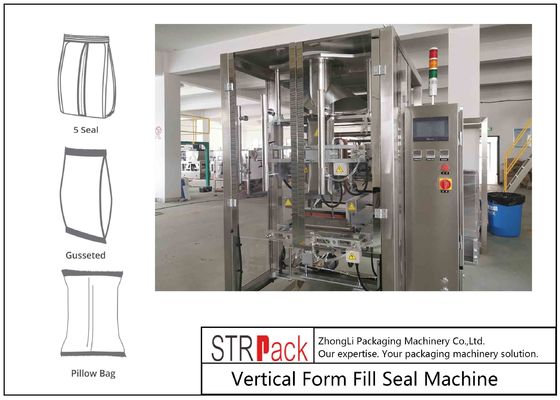

Vertical Coffee Powder Packing Machine , Powder Auger Filling Machine
The machine unit consists of Screw auger filling machine and vertical packing machine.
Application:
Suitable for metering of all kinds of powder products such as coffee powder, milk powder, flour powder, sugar, green tea powder, protein powder, seasoning powder, rice powder, solid medicine & agricultural chemical, powdery additive and dye.
Suitable for bag type such as Back sealing pillow bag, gusset bag, 4 sides sealing bag, 3 sides sealing bag
Description
1. This coffee powder packaging machine can be used to pack various fine powders, like spice , chili powder, herb powder, detergent powder, milk powder, flour, coffee powder,soybean powder, medicine powder, cosmetic powder, facial mask powder, starch etc.
2. This coffee powder packaging machine conforms to the food processing machinery's sanitation standard.On the machine, the spare part which contacts the material and pouch conforms to the standard of food sanitation request on material processing, food health and security guarantee.
3. It's fully automated operation, is improved and the production of a kind of high quality, high performance automatic packaging machine, complete automatic feeding, measuring, bag-making, deviation, filling, sealing, date printing and finished product output and a series of automatic functions.
Working Process:
Film bag making →filling →sealing →hole punching →code printing →bag counting
Features:
| · Fully controlled by Siemens or Omron PLC & Touch-Screen |
| · Minute capacity can automatically display on Touch screen |
| · Film transport system and horizontal Jaw motion both drived by Panasonic |
| · Safe quick change of tube and collar by just pull out the bracket |
| · Optoelectronics detect film position on collar to correct film excursion |
| · Electrical photo sensor inducting color code to control bag length |
| · Unique Pneumatic Film-Reel locking structure to avoid film drawing deflecting |
| · independent temperature adjustment & code printing |
| · Heating sealable laminated films like PE/BOPP, CPP/BOPP, CPP/PET, PE/NYLON, aluminum foil |
|
· can be used for Polyethylene Film Sealing by changing correspond parts · can equipped with hole punching system to punch hole on the bag for handling. |
Technical Specification--AUTOMATIC PACKAGING MACHINE for COFFEE
| Bag type | Pillow type bag; Gusseted bag (Option);punching bag |
| Speed | 30 to 80 bags/min |
| Bag Length | 50 to 280mm (1.9to 11in) |
| Bag Width | 70 to 180mm (2.7 to 7in) |
| Reel Film Width | ≤730mm (28.7in) |
| Film thickness | 0.04-0.12mm (40-120mic.) |
| Reel Outer Dia. | 400mm (15.6in) |
| Reel Inner Dia. | 75mm (2.9in) |
| Voltage | AC380V/50-60Hz, 1phase or Per customer specification |
| Power Consumption | 3KW |
| Compressed Air Requirement | 0.6 MPa0.36 M3min |
| Machine Size | L1470 x W988 x H1400mm; (in): L57.3 x W38.5 x H54.6 |
| Machine Weight | 800kg |
| Weighing accuracy | +-0.2% dependent on products characteristics |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
