| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | CE |
| Model Number: | GVF-260G |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden |
| Supply Ability: | 50 SET/MONTH |
| Measuring Range: | 100-5000g | Bag Type: | Pillow Bag, Gusseted Bag/Flat Bottom Bag |
|---|---|---|---|
| Speed: | Up To 120 Bags/min | Reel Film Width: | 540mm |
| Voltage: | AC 220V/ 50HZ，1phase Or Per Customer Needs | Power Consumption: | 8KW |
| High Light: | grain bagging machine,granule packaging machinery |
||
Equipment technical parameters:

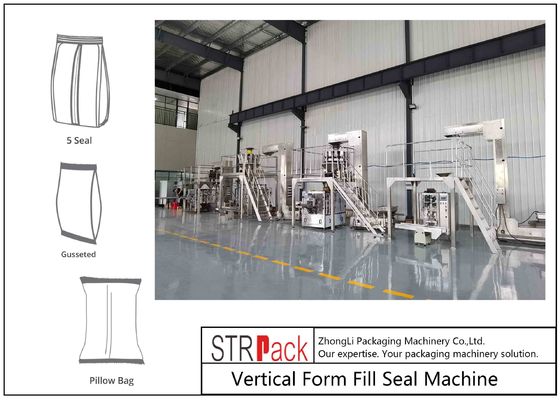

1.This set of automatic weighing and packing system
(1)Vibration feeding type Z material lifting equipment
(2)Computer combination weighing equipment
(3)Automatic vertical packaging equipment
(4)Working platform
(5)Product conveying equipment
2.Features:
The system will finish all the process automatically: feeding, dosing, filling, sealing, date printing and finish product conveying. It has the advantages of high accurate weighting, high efficiency without broken material.
3.Applicable scope:
The machine is suit to pack anomalous solid and the granule material, such as: puff snack food, potato chips, crispy rice, jelly, candy, apple chips, dumpling, small cookie, dry fruit, melon seeds, roasted seeds and nuts, medical material, deep-frozen food, etc.
| model | GVF-520 |
| packing speed | 10-70 bag/min |
| bag size(mm) | (W) 80-250 (L) 80-350 |
| bag making code | Pillow bag, standing bag (gusseted),
punch, Linked bag |
| range of measuring(g) | 2000 |
| it is suitable for packing grain | stick |
| packing material | laminated film such as POOP/CPP,POPP/VMCPP,BOPP/ PE,PET/AL/PE,NY/PE,PET/PET |
| power parammeter | 220V 50/60Hz 3KW |
| package volume | 1430(L)×1200(W)×1700(H) |
| gross weight | 650kg |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
