| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | ISO,CE |
| Model Number: | STR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price Negotiable |
| Packaging Details: | Wooden Case Packaging |
| Delivery Time: | 3-50 Working Days |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000 SET |
| Filing Head Number: | 6 | Filling Volume: | 50-1000ml |
|---|---|---|---|
| Capacity: | 20-60 Bottles/min | Filling Accuracy: | ≤ ±1% |
| Pass Rate: | ≥ 98% | Label Accuracy: | ≤ ±1mm |
| Highlight: | automatic liquid filling line,powder filling line |
||
Product Description
Application:
This machine is suitable for filling and capping semi-liquid products without or with small particles: such as sweet chili sauce, beef paste, bean sauce, mushroom sauce, tomato sauce, peanut butter, jam, honey, sauce, shrimp paste, shampoo, body wash, liquid detergent, dishwashing liquid, etc.
Performance feature:

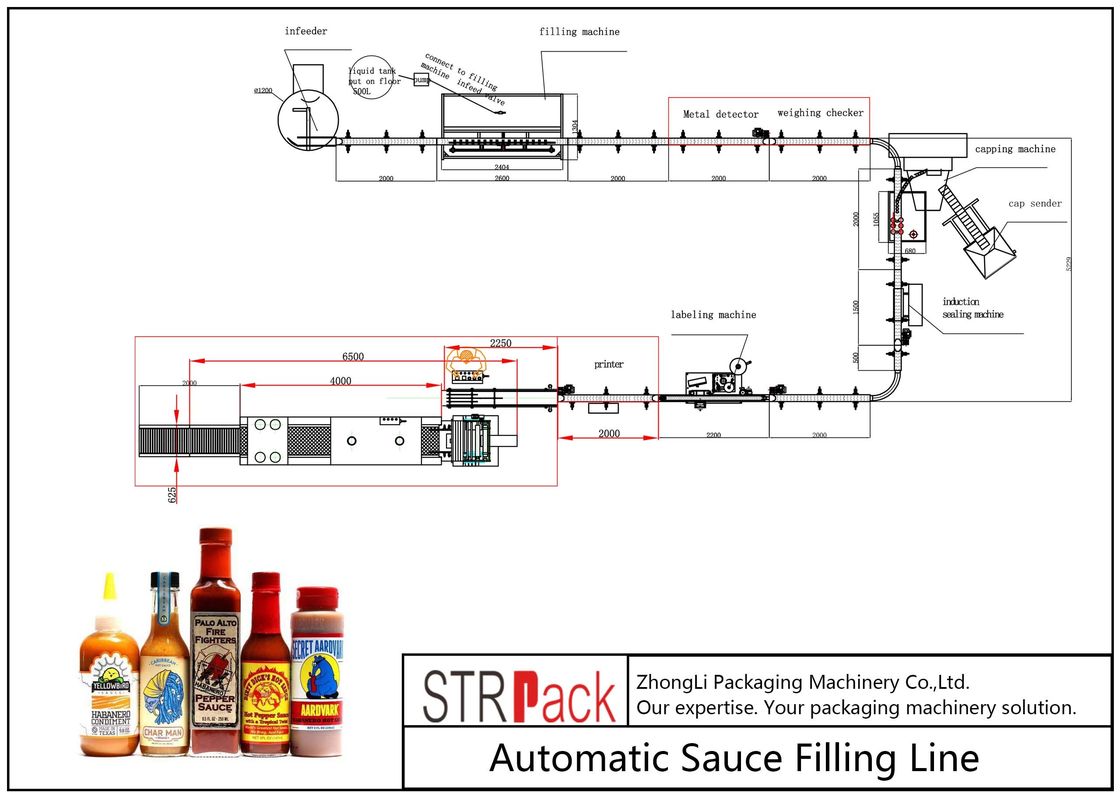

1. Working process: bottle feeding-- filling -- capping -- labeling -- ribbon printing/ink jet printing (optional).
2. Nice machine appearance, reasonable structure, this is the most advanced new design thick sauce filling machine at present, machine can be customized with 4/6/8/12/14/etc filling heads according to customer's production capacity. Its has advantage of high capacity, good safety performance and high degree of automation.

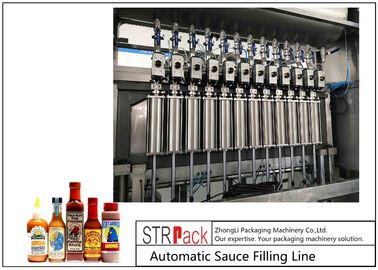

3. Plunger pump filling system has features of no adsorbing drugs, good chemical stability, high temperature resistance, corrosion resistance, abrasion resistance, long service life, has unique advantages when fill some corrosive liquid.
4. Used for various viscosity liquid filling, frequency control, automatic count.
5. Main electrical elements adopts foreign well-known brand.
6. Machine body is made of 304 stainless steel, full compliance with GMP standard.
Technical parameters:
| Model | STR-NJ4 | STR-NJ6 |
| Filing head number | 4 | 6 |
| Filling volume | 50-1000ml | 50-1000ml |
| Capacity | 10-40 bottles/min | 20-60 bottles/min |
| Filling accuracy | ≤ ±1% | ≤ ±1% |
| Pass rate | ≥ 98% | ≥ 98% |
| Label size | L: 20-300mm, H: 15-180mm | L: 20-300mm, H: 15-180mm |
| Label accuracy | ≤ ±1mm | ≤ ±1mm |
| Power supply | 1 Ph. AC220V, 50/60Hz | 1 Ph. AC220V, 50/60Hz |
| Total power | 6.5 KW | 6.5 KW |
| Net weight | 1500kg | 1600kg |
| Overall dimension | L7000 × W1500 × H1650mm |
L7200 × W1500 × H1650mm |
This Automatic Sauce Filling Line comes with everything you need to get your liquid sweetener bottling line up and running. It is designed to bottle 50 bottles per minute. Start your project today by clicking request a quote below!

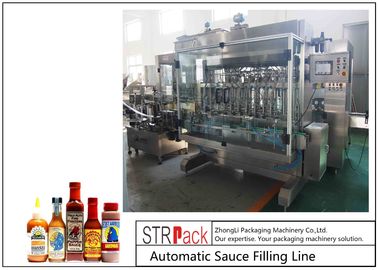

Line Name: Automatic Sauce Filling Line
Machines Included:
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 12months
(2) Long time technology will be supplied.
(3) We can send our engineer to your side for installing and debugging machines and training your people. Engineer's round-trip tickets, accommodation, daily allowance USD80.00/day/person, and your side traveling fee will be charged by you.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
