PLC Control Honey Jar Filling Line Automatic Liquid Filling Line GMP Standard

PLC Control Honey Jar Filling Line Automatic Liquid Filling Line GMP Standard

  • PLC Control Honey Jar Filling Line Automatic Liquid Filling Line GMP Standard
  • PLC Control Honey Jar Filling Line Automatic Liquid Filling Line GMP Standard
  • PLC Control Honey Jar Filling Line Automatic Liquid Filling Line GMP Standard
  • PLC Control Honey Jar Filling Line Automatic Liquid Filling Line GMP Standard
PLC Control Honey Jar Filling Line Automatic Liquid Filling Line GMP Standard
Product Details:
Place of Origin: CHINA
Brand Name: STRPACK
Certification: ISO,CE
Model Number: STR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Wooden Case Packaging
Delivery Time: 3-50 Working Days
Payment Terms: TT/LC
Supply Ability: 1000 SET
Contact Now
Detailed Product Description
Voltage(V): AC 220/50 110/60 Power(W): 1500
Label Accuracy(mm): ±1.0 The Application Of Products (mm): Diameter 12-100mm Height 30-200mm
The Application Range Of Label(mm): Height 15-100mm Length 20~300mm Production Speed(pcs/min): 40-120
High Light:

automatic liquid filling line

,

powder filling line

Automatic honey jar filling capping labeling machine line

Full automatic liquid filling machine adopts the principle of plunger quantitative filling, into the bottle, positioning, filling, the bottles are automatically controlled by the PLC, in accordance with the GMP standard. Suitable for medical, food, daily chemical, pesticide and fine chemical liquid filling.



Model
STRL-6L
Canned speed
2400 BPH
Filling volume
100-1000ml
Voltyage
220V/380V
Power
2KW
Bottle diameter
20-80mm
Model
STRB-140Z
Supply Power(V/Hz)
AC 220/50 110/60
Heat sealing power(W)
1500
Bottle height(mm)
38-300
Application of cap diameter(mm)
15-17
Application of bottle diameter(mm)
35-140
Air pressure(mpa)
0.3-0.5
Production speed(bottle/min)
80-160
Dimension(L×W×H)(mm)
2000X870X1500
Weight(kg)
350
Model
STRT-1530
Voltage(V)
AC 220/50 110/60
Power(W)
1500
Label Accuracy(mm)
±1.0
The Application of Products (mm)
Diameter 12-100mm Height 30-200mm
The Application range of label(mm)
Height 15-100mm Length 20~300mm
Production Speed(pcs/min)
40-120
Dimensions(L × W × H) (mm)
2200×1400×1550
Net Weight(kg)
320

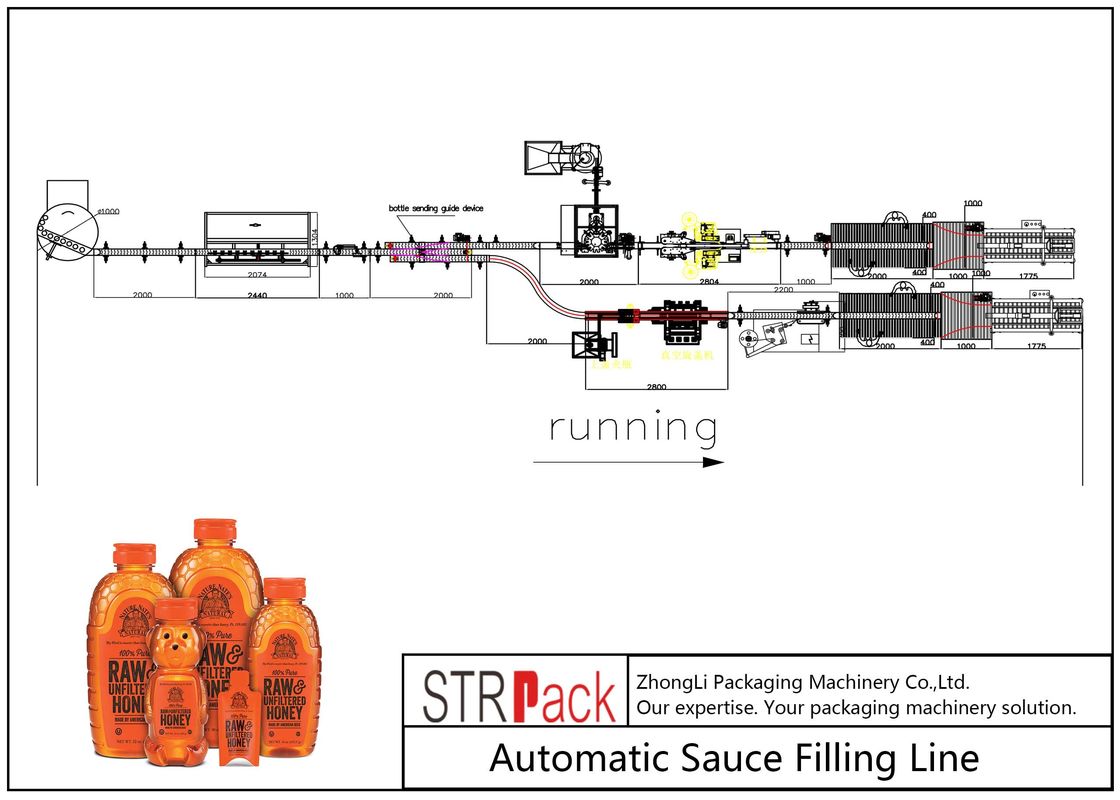

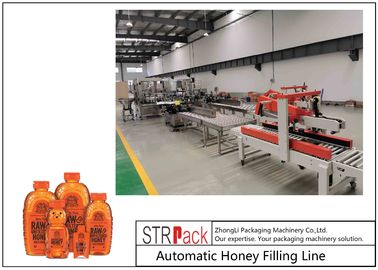

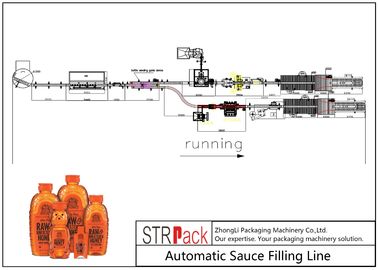

Filling Line Details

This Automatic Honey Filling Line comes with everything you need to get your liquid sweetener bottling line up and running. It is designed to bottle 50 bottles per minute. Start your project today by clicking request a quote below!



Line Name: Automatic Honey Filling Line

  • Automation: Automatic
  • Filling volume:50-1000ml
  • Bottles Per Minute: 30-60





Machines Included:

  • Bottle Feeding Turntable

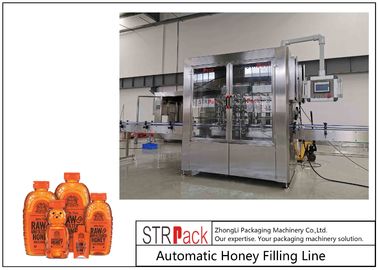

  • Automatic 8 Head Servo Filling Machine

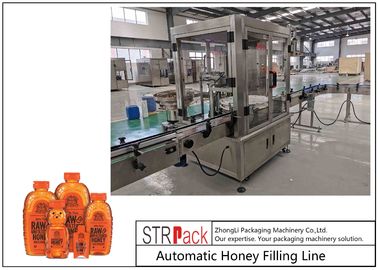

  • Automatic Star Wheel Type Capping Machine
  • Electromagnetic Induction Aluminum Foil Sealer
  • Automatic Bottle Labeling Machine
  • Bottle Working Table Rolling Type
  • Automatic carton sealing machine



PLC Control Honey Jar Filling Line Automatic Liquid Filling Line GMP Standard 0

PLC Control Honey Jar Filling Line Automatic Liquid Filling Line GMP Standard 1


After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 12months
(2) Long time technology will be supplied.
(3) We can send our engineer to your side for installing and debugging machines and training your people. Engineer's round-trip tickets, accommodation, daily allowance USD80.00/day/person, and your side traveling fee will be charged by you.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
