220V / 380V Power Supply Edible Oil Filling Machine Touch Screen Operation

220V / 380V Power Supply Edible Oil Filling Machine Touch Screen Operation

  • 220V / 380V Power Supply Edible Oil Filling Machine Touch Screen Operation
  • 220V / 380V Power Supply Edible Oil Filling Machine Touch Screen Operation
  • 220V / 380V Power Supply Edible Oil Filling Machine Touch Screen Operation
220V / 380V Power Supply Edible Oil Filling Machine Touch Screen Operation
Product Details:
Place of Origin: CHINA
Brand Name: STRPACK
Certification: ISO,CE
Model Number: STR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Wooden Case Packaging
Delivery Time: 3-50 Working Days
Payment Terms: TT/LC
Supply Ability: 1000 SET
Contact Now
Detailed Product Description
Filling Capacity (ML): 500-5000ml Filling Velocity (BPM): 10-25 Bottles Per Minute
Power Supply (VAC): 220V/380V Motor Power (KW): 2.2
Gas Consumption (MIN): 4KGS×30LITER Outline Dimension (mm): Outline Dimension (mm)
Weight(KG): 300
High Light:

automatic liquid filling line

,

powder filling line

China Automatic Edible Oil Filling Machine line manufacturer

Main Features

1. Touch screen operation interface;

2. Up and down movement type filling, effectively prevent the foam from being
produced, easy to take apart and wash;

3. The illing accuracy can reach +/-1%;

4. The flling cylinder is ground, unique flling valve design, no leakage;

5. With no bottle no flling and automatic bottle stop function;

6. Design different positioning devices according to the actual situation of the
bottle;

7. The equipment is easy to clean, can be disassemble without tools, it can also be
cleaned online or high temperature sterilization;

8. PLC programmable control use Japan Mitsubishi;

9. Frequency converter adopts France Schneider;

10. Pneumatic components adopt Taiwan Airtac;

11. Material contact parts are made of SUS304# stainless steel;

12. The equipment meets the hygiene and safety standards. The user can choose
the glass protective cover.



Model
STRF-GJ-2
Filling capacity (ML)
500-5000ml
Filling velocity (BPM)
10-25 Bottles per minute
Power supply (VAC)
220V/380V
Motor power (KW)
2.2
Gas consumption (MIN)
4KGS×30LITER
Outline dimension (mm)
6000X1200X2200
Weight(KG)
300

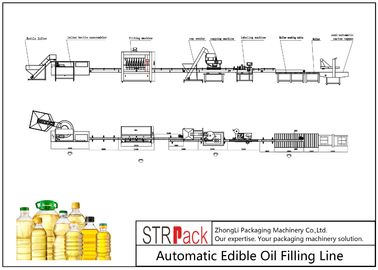

Filling Line Details

This automatic edible oil filling line comes with everything you need to get your liquid sweetener bottling line up and running. It is designed to bottle 50 bottles per minute. Start your project today by clicking request a quote below!



  • Line Name: Automatic edible oil filling line
  • Automation: Automatic
  • Filling volume:500-5000ml
  • Bottles Per Minute: 20-50





Machines Included:

  • Automatic Bottle Unscrambler
  • Automatic 8 Head Servo Filling Machine
  • Automatic Linear Capping Machine
  • Vertical Self-Adhesive Round Bottle Labeling Machine

Bottle Working Table Rolling Type



adopts the principle of plunger quantitative filling, into the bottle, positioning, filling, the bottles are automatically controlled by the PLC, in accordance with the GMP standard. Suitable for medical, food, daily chemical, pesticide and fine chemical liquid filling.








220V / 380V Power Supply Edible Oil Filling Machine Touch Screen Operation 0

220V / 380V Power Supply Edible Oil Filling Machine Touch Screen Operation 1



FAQ:

1---Any machine in stock?

For semi automatice machine, we have some in stock. It can ship within 7-10 working days. For automatic machine, all have no stock. Automatic machines are custom-made according to your bottles and caps.



2---What is the lead time?
For single machine, it takes from 20~35 working days. For whole filling line, it takes from 50~60 working days. (from the day we have the downpayment and sample bottle and caps)



3---Can you help the shipment? Ship from which port?
Yes, we can help to the shipment, just tell us the name of sea port in your side. If by air, it is from Shanghai International Airport. If by sea, it is from Shanghai or Ningbo. And other seaport of China are accepted.



4---The payment?
By TT. 50% in advance as downpayment , 50% balance before shipping.

5---can we visit factory to check machines firstly, then place order?
Sure, welcome to visit us!




After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 12months
(2) Long time technology will be supplied.
(3) We can send our engineer to your side for installing and debugging machines and training your people. Engineer's round-trip tickets, accommodation, daily allowance USD80.00/day/person, and your side traveling fee will be charged by you.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
