| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | ISO,CE |
| Model Number: | STR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price Negotiable |
| Packaging Details: | Wooden Case Packaging |
| Delivery Time: | 3-50 Working Days |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000 SET |
| Model: | SF-PF-A5 | Filling Type: | Automatic |
|---|---|---|---|
| Filling Weight: | 1-500 G | Accuracy: | ≤±2% |
| Filling Speed: | 15-40 Times/min | Hopper: | 25 L |
| Highlight: | powder bag filling machine,powder filling packing machine |
||

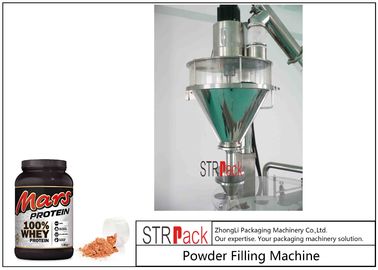

50g-5000g Protein Powder Filling Machine With Servo Driven Auger Filler(Bench Model) Automatic Powder Filling Machine
APPLICATION
multiple nozzle whey protein powder capping/filling machine a single head, double head powder filling two types of equipment for customers to choose. Filling volume can be adjusted between 10 ~ 2000g. Liquid crystal display, and accurate quantitative, powder loading no drip, automatic feeding and bottle, fitted with a protective device, encounters an exceptional situation automatic stop alarm is a high efficiency, high intelligence of powder filling machine.
Feature
1, the use of touch screen, PLC control, stable, anti-jamming, easy operation, intuitive, long life and other advantages.
2, filling servo motor drive screw, with a positioning accuracy, high precision, speed, torque, speed can be set, good stability.
3, the use of stirring maintenance-free gear motor, low noise, long life, maintenance-free life.
4, the product formula to adjust operating parameters can be stored, ready for use after, can store up to 10 sets of operating parameters.
5, screw attachment with quick connect card, the replacement of fast, ultra-fine powder can adapt to a variety of small particles of materials packaging needs.
6, chain plate conveyor belt packaging containers, turntable positioning work distribution, product qualification rate.
7, can increase feedback weighing upon request, defective removing
Technical Parameters:
|
Model
|
SF-PF-A5
|
SF-PF-A50
|
|
Filling type
|
Automatic
|
Automatic
|
|
Filling weight
|
1-500 g
|
1-5000 g
|
|
Accuracy
|
≤100g,≤±2%; 100-500g,≤±1%;500-5000g;≤±0.5%
|
|
|
Filling Speed
|
15-40 times/min
|
|
|
Air supply
|
6 kg/cm³ 0.05 m³/min
|
|
|
Hopper
|
25 L
|
50 L
|
|
Power
|
1.2 KW
|
1.6 KW
|
|
Weight
|
160 KG
|
300KG
|
|
Dimension
|
1500*760*1850 mm
|
2000*970*2030 mm
|
Main configuration
| Name | Brand |
| Press-button | Schneider |
| Air-break switch | Schneider |
| Contactor | Schneider |
| Relay | Omron |
| Frequency changer | Speecon |
| Main motor | Shlicao |
| Reducer | Hangzou Jia city |
| Cam slicer | Shandong zhucheng |
| Optical | SUNX |
| Conveyor | Taiwan's au bon |
| Capping motor | Taiwan's au bon |
| Gear | Japan’s zen he |
| Chain | Japan’s zen he |
| SUS304 | Shanghai Baosteel |
| Angle steel | Shanghai Baosteel |
| Touch screen | Siemens |
| PLC | Mitsubishi |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
