| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | ISO,CE |
| Model Number: | STR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price Negotiable |
| Packaging Details: | Wooden Case Packaging |
| Delivery Time: | 3-50 Working Days |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000 SET |
| Model:: | SFM-50 | Bottle Size:: | 5-500ml |
|---|---|---|---|
| Power Supply:: | 220V/380V, 50Hz | Power:: | 1.2kw |
| Device Error:: | ≤ ± 1% | Automatic Plug Rate:: | ≥ 99% |
| Highlight: | liquid filling capping machine,monoblock filling machine |
||

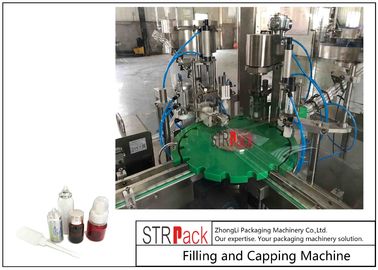

Vial Spray Liquid Filling and Capping Machine For Nasal Spray,Oral spray With Monoblock Filling Machine Capacity 50bpm
Nasal Spray Filling Machine
Nasal Spray Filling and Capping Machine, Filling and Closing Machine for Nasal Spray, Pharmaceutical Liquid Filling Line, Auto Nasal Spray Filling & Capping Line
The nasal spray filling and capping machine in STRPACK is developed basing on the former liquid filling and capping machinery. It is widely applied in the mass production of various liquids such as vaccine, and pharmaceutical liquid. Our nasal spray filler is suitable for dealing with all kinds of round bottles and special-shaped bottles. We have integrated the operations of filling, plugging, and capping together for it. Distinguished according to the processing techniques, STRPACK automatic nasal spray filling equipment can be separated into 2 parts: the filling & stoppering part, and the capping part.
Features
1. It shows compact structure and light weight design
2. PLC intelligent control is adopted for the filling system
3. No filling nor capping will be conducted if there is no bottle
4. Easy switching and fine adjustment are accessible
5. The filling head entering inner the bottles allows for no leakage
6. This auto nasal spray filling machine is in accordance with GMP standards
7. Dust covers are prepared upon request
Applications
It is widely used for essential oil, syrup, oral liquid, among other liquid products
Technical Parameters
| Model: | SFM-50 |
| Bottle size: | 5-500ml |
| Power Supply: | 220V/380V, 50Hz |
| Power: | 1.2kw |
| Device error: | ≤ ± 1% |
| Automatic plug rate: | ≥ 99% |
| Automatic cap rate: | ≥ 99.9% |
| Speed Control: | Frequency Control |
| Requirements of the compressed air pressure: | 0.4-0 .6 Mpa |
| Dosage: | 25-35Lmin |
| Stand-alone noise: | ≤ 70dB |
| Production capacity: | 40-60 bottles /min (variable according to the filling speed) |
| Weight: | about 700kg |
| Dimensions: | 2400×1200×1700 mm |
Special design
| Controlling system | full-auto PLC + human-computer touch screen control system |
| Bottle position correct device | a special bottles position device is added to make the whole filling process smooth and stable |
| Filling nozzles | with the function of anti-drop and anti-drawing |
| Piston pump | Suitable for all kinds of material with high filling speed and filing precision, For filling corrosive, the position pump will be made by silicon rubber, Teflon, ceramics and other corrosion resistance materials. |
| cleaning | The pump uses quick-fit removal Structure: easy cleaning and disinfection. |
| Protector | it's optional for customers it's dust proof , can protect the prodcuts being polluted when filling |
