| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | ISO,CE |
| Model Number: | STR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price Negotiable |
| Packaging Details: | Wooden Case Packaging |
| Delivery Time: | 3-50 Working Days |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000 SET |
| Metering Mode:: | Weighing (with The Packing Bag) | Packing Weight :: | 5— 50KG |
|---|---|---|---|
| Feeding Mode：: | Double Screw Feeder (or Vibrator Feeder) | Filling Accuracy:: | ≤±0.2% |
| Sealing Machine：: | Heat Sealing Machine+sweaming Machine | Filling Rate:: | ≤3Bags/min |
| High Light: | powder bag filling machine,powder filling packing machine |
||

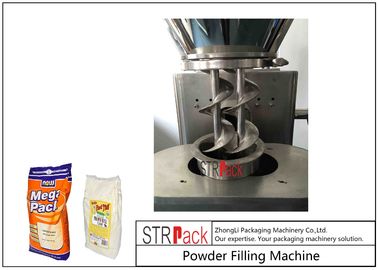

Semi-automatic Big Bag Powder Filling Machine With PLC Control System For Auger Type 5-50kg Powder Filling Machine
This machine is manual aid can auto-complete following work: weighing, filling, nipping-bags, sealing bags, and conveying. Due to it is designed according the GMP standard, it more fits the fluidic or low fluidity materials, such as milk powder, fodder, rice powder, white sugar, coffee powder, monosodium glutamate, solid beverage, dextrose, pharmaceuticals, and agriculture pesticide, granular additive, dyestuff, and so on.
Main features:
The whole structure of the machine made of stainless steel except the motor, cylinder, electrical accessories, pneumatic components, sewing machine. In particular the application of GMP, food sanitation certification, and adapt to the amyctic materials.
With the overshooting inhibition, amendment of drop and Tolerance alarm functions.
Using the new type of international popular scale packaging control systems, high-precision high-speed measuring of the dedicated instruments, strong functions, high reliability and fully meet the requirements of continuous production.
Time can be set automatically to control the PVC conveyor belt to convey (the structure made of stainless steel): neatness, clean, wash with water.
With calibration procedures (with poise and calibration of linking): It’s convenient to adjust at any time, and it’s very useful for the long time of no use of the weight draft.
Easy to remove the residual material: the screw can be directly inserted and draw out alone for washing.
In order to ensure the stable performance, all of the devices are international brands: pneumatic components are Korean AIRTAC, touch-screen man-machine interface, easy operation.
| Metering Mode: | Weighing (with the packing bag) |
| Packing Weight : | 5— 50KG |
| Feeding Mode: | Double screw feeder (or vibrator feeder) |
| Filling Accuracy: | ≤±0.2% |
| Sealing Machine: | heat sealing machine+sweaming machine |
| Filling Rate: | ≤3Bags/min |
| Power Supply: | 3P/380V(1P/220V according your requirement) 50—60Hz |
| Total Power: | 3.9Kw. (without the power for the air supply) |
| Total Weight: | 300Kg |
| Overall Dimensions: | 4500×1600×2400MM |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
