| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | ISO,CE |
| Model Number: | STR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price Negotiable |
| Packaging Details: | Wooden Case Packaging |
| Delivery Time: | 3-50 Working Days |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000 SET |
| Production Capacity: | 60-100BPM | Driving Method: | Variable Speed Motor |
|---|---|---|---|
| Bottle Diameter: | 50-110mm | Label Width: | 20-280mm |
| Label Length: | 80-370mm | Weight: | 750Kg |
| High Light: | bottle sticker labeling machine,double side labeling machine |
||

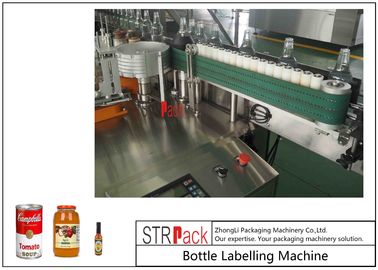

Automatic Wet Glue Labeling Machine For Vegetable Oil Bottle Glass Bottle Labeling Machine For Paper Label
Principle:
The working principle of the design of this machine is as the following: The fan shape rotating bar which sticks the label
gets a little glue from the rubble wheel and rotates to the label transmission to get a piece of label adhered. And it continually
rotates to the place of the sucking paper wheel with the vacuum, and the label is taken off by the doffing label claw. At the
same time the label is transferred to the conveying paper belt with the vacuum. The label is conveyed into the sticking label
area on the conveying paper belt with the sucking capability of the vacuum and is adhered on the bottle which is conveyed
by the chains. It accomplishes the producing process by the circled actions.
Feature:
1. Linear type paste labeling machine is widely used in pharmacy, daily use chemicals and foodstuff etc industry.
2. It can work independently or connect with automatic production line. Suitable for plastic bottle, glass bottle and metal column shape container etc.
3. The height has no limite for regular container, label material is paper with normal printing.
4. Label glue can apply chemicals synthetic glue or starch paste as label glue material.
5. All key parts apply import original parts.
6. For the similar container and label, no need change any parts, just making some adjustment can begin production.
7. Equipped with pneumatic glue feeding pump and no label alarming device.
Technology Parameter:
|
No.
|
Model
|
STL-G
|
|
1
|
Speed
|
40～80 bottle/min
|
|
2
|
Bottle diamet size
|
Ф55-110mm
|
|
3
|
Label Size
|
Height:20-150mm Length:80-314mm
|
|
4
|
Precision
|
± 2 mm(for wrapping around the can)
|
|
5
|
Power
|
0.5KW
|
|
6
|
Voltage
|
AC 220V;50Hz
|
|
7
|
Weight
|
550KG
|
|
8
|
Dimension
|
2000×800×1200MM
|
Component with brand
| No. | Name | Qty. | manufacturer |
| 1 | Main motor | 1 | SMC(Regal-Beloit) |
| 2 | Turn-plate motor and vacuum motor | 1 | Adeli (Taiwan Brand) |
| 3 | Inverter | 1 | HOLIP |
| 4 | PLC | 1 | Mitsubishi |
| 5 | Sensor | 1 | Omron |
| 6 | Button | 1 | Schneider |
| 7 | solenoid valve and cylinder | 1 | AIRTAC |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
