| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | ISO,CE |
| Model Number: | STR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price Negotiable |
| Packaging Details: | Wooden Case Packaging |
| Delivery Time: | 3-50 Working Days |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000 SET |
| Dimension: | 2000mm×1200mm×2300mm | Weight: | 900Kg |
|---|---|---|---|
| Suitable Caps( Φ ×H): | Φ 10mm~ Φ 50mm×20mm~80mm | Heads: | 4 |
| Production Capacity: | 3000 Bottles/hour (adjustable) | Power: | 1.5 Kw |
| High Light: | rotary capping machine,linear capping machine |
||

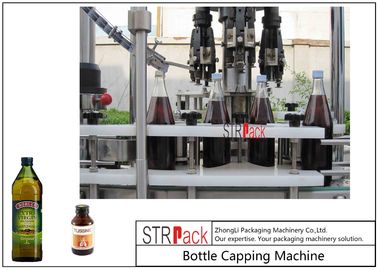

Automatic Rotary 4-head Aluminum Cap Crimping Machine For Syrup,Olive Oil Screw Thread Capper Cap Crimping Machine
Capping machines are used for the application of plastic and metal threaded caps as well as plastic snap caps, some fitments and some types of corks and plugs. Capping is usually the most difficult aspect of a liquid packaging line for several reasons. Sometimes the range of geometries and sizes of caps and bottles is so wide that the capping machine components become expensive or the platform of that particular type of capping machine is not suitable for all sizes and geometries in the range. Sometimes the bottle and cap combination are not ideal with the threads of the bottle being in conflict with the threads of the cap and great force is needed to apply the cap. Sometimes caps can only be placed vertically on the container which increases the capital cost of the machinery. Inline Filling Systems understands these issues very well and has a capping machine to address every one of these capping challenges. We specialize in capping machines and cap feeding systems for both startup companies as well as higher speed production environments.
1. suitable for multi-geometry containers
2. no cap reversed
3. no damage to caps and bottles
4. PLC control system
Major characteristics
This capper can perfectly applicable for diversified aluminum caps. Excellent sealability of cap sealing, harmless to aluminum caps, the thread of screw is clear and beautiful after sealing, fast speed of capping, high qualified rate. It is an ideal equipment for wine, Olive Oil , Syrup, medical factories.
Aluminum Cap Screwing and Sealing Machine
1. This machine is designed for screw thread sealing machine.
2. Cap sorting applies electromagnetic concussion in order to protect aluminum cap from being damaged.
3. It suitable for agrochemical, pharmaceutical, chemical, foodstuff and cosmetic industries.
4. Production Capacity: 4000bottles/hour
Major characteristics:
This machine is mainly used for aluminum caps capping in alcohol, beverage. condiment and pharmaceutical factory.
Main Technical Parameters
| 01 | Dimension (L×W×H) | 2000mm×1200mm×2300mm |
| 02 | Weight | 900Kg |
| 03 | Applicable containers |
height : 180mm~300mm diameter: Φ60mm~Φ100mm Bottle mouth diameter: Φ 20mm~ Φ 36mm |
| 04 | Suitable caps( Φ ×H) | Φ 10mm~ Φ 50mm×20mm~80mm |
| 05 | Number of capping heads | 4 |
| 06 | Production capacity | 3000 bottles/hour (adjustable) |
| 07 | Power supply | AC 220V; 50Hz |
| 08 | Power | 1.5 Kw |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
