High Efficiency Coconut / Olive Oil Filling Machine No Leaking With Servo Filler

High Efficiency Coconut / Olive Oil Filling Machine No Leaking With Servo Filler

  • High Efficiency Coconut / Olive Oil Filling Machine No Leaking With Servo Filler
  • High Efficiency Coconut / Olive Oil Filling Machine No Leaking With Servo Filler
  • High Efficiency Coconut / Olive Oil Filling Machine No Leaking With Servo Filler
  • High Efficiency Coconut / Olive Oil Filling Machine No Leaking With Servo Filler
High Efficiency Coconut / Olive Oil Filling Machine No Leaking With Servo Filler
Product Details:
Place of Origin: CHINA
Brand Name: STRPACK
Certification: ISO,CE
Model Number: STR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Wooden Case Packaging
Delivery Time: 3-50 Working Days
Payment Terms: TT/LC
Supply Ability: 1000 SET
Contact Now
Detailed Product Description
Filling Type: Linear Type Filling Function: Oil Packaging
Working Air Pressure: 0.55-0.8MPa Bottle Volume: 100-1000ml
Material: SUS 304 316 Warranty: 1 Year
High Light:

gravity filling machine

,

piston filling machine

250ml-1L 16 Head Nozzle Oil Piston Filling Machine For Coconut Oil Olive Oil Bottle Filling Machine With Servo Fillier

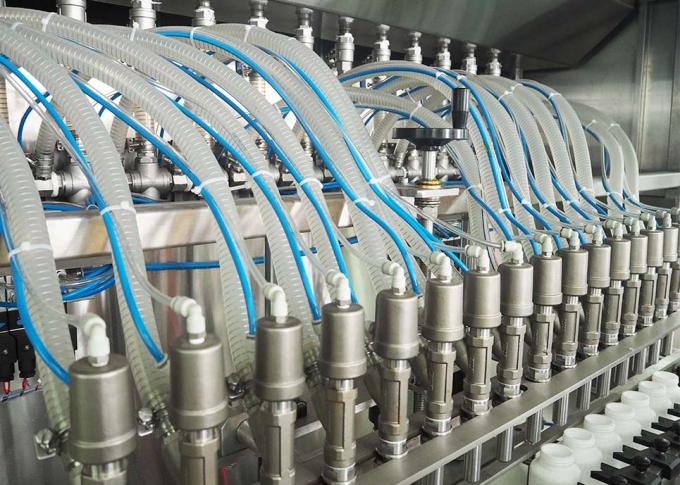

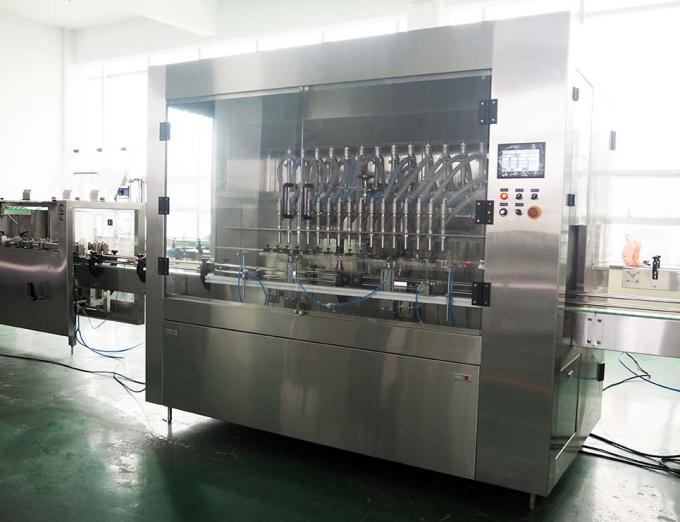

16 Head Nozzle Oil Piston Filling Machine is suitable for filling viscous, inviscid and corrosive liquid. It's widely applied in plant oil, chemical liquid, and daily chemical industry. It adopts liner type filling, electromechanical & instrumental intergrated controlling. It's simple and rapid for changing the varieties with unique design and superior capability. It's appearance accords with the international machinery concept.
Germany SIEMENS PLC and touch screen control make it intelligent protection function. Vacuum anti-dropping device ensures no leaking situation in production. Electronic adjusting for volume system, frequency control and photoelectric detecting system(Germany TURCK brand) are applied in this machine



16 Head Nozzle Oil Piston Filling Machine And Packing Machine can be used for fixed amount small package filling, straight line type filling, mechanical, electric, apparatus control of all sorts of viscous and non-viscous, erosive liquid, such as plant oil chemical, liquid,daily chemical industry. It is rather simple and rapid to change items, the design is quite distinct, the property is Very advantageous, its appearance corresponds to international concept for mechanical equipment.
It has applied SIEMENS PLC control, from Germany.
It has intellectual, protection function.
Vacuum drop prevention device guarantees there Should be absolutely no drop or leakage during production.
There is a switch for step progressive type supply and continuous supply. It can be Set Optionally.
It has applied imported pneumatic control parts.
It has applied German technique on photoelectric sensors.
National patented double speed technique has greatly increased production efficiency.
This machine is suitable for many items, the adjustment is rapid and high efficient.
Electrical volume adjustment System.
Photoelectric inspection system has applied TURCK products of Germany.
Can be used together with the cover screwing &pressing machine, Leakage inspection machine, Aluminum foil operang sealing machine.


Product details

filling typelinear type filling
Functionoil packaging
usagemachine for food oil filling
working air pressure0.55-0.8MPa
suitable bottle sizePET round or square bottle
bottle volume1000-5000ml
capacity2000BPH for 1000ml bottle
materialSUS 304 316
warranty1 year
auxiliary equipmentair compressor
Product Keywordsolive edible oil filling machine


Main technical parameter

ModelSFC-16
Range100ml-1000ml
Production speed500-3000BPH
Measurement precision+/-1%
Rated power0.8KW
Working voltage380V 50Hz
Working air pressure6-7kg/m
Air-consuming amount0.5CBM
Net weight600kg
Machine size2200x870x2300mm


High Efficiency Coconut / Olive Oil Filling Machine No Leaking With Servo Filler 0

High Efficiency Coconut / Olive Oil Filling Machine No Leaking With Servo Filler 1

After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
