| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | ISO,CE |
| Model Number: | STR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price Negotiable |
| Packaging Details: | Wooden Case Packaging |
| Delivery Time: | 3-50 Working Days |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000 SET |
| Name: | Automatic Piston Filling Machine | Model: | SFC-10 |
|---|---|---|---|
| Power Supply: | 220V Single Phase 50HZ 380V Three Phase 50HZ | Weight: | 800kg |
| Dimension: | 2200*1400*2300mm | Filling Speed: | 30b/min Per |
| High Light: | gravity filling machine,piston filling machine |
||

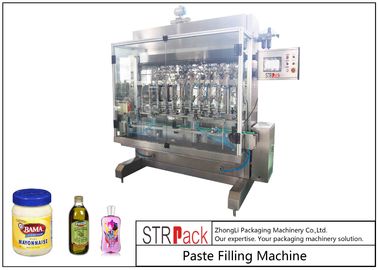

Automatic Piston Filling Machine Intellectual Injection Viscous Liquid Filler With 10 Filling Heads For 0.5-5L
The SFC Series piston filling machines are designed to dispense products of different viscosity,
ranging from water thin liquids to thick creams, for the cosmetic, food,pharmaceutical, oil and specialty industries.
Automatic Piston Filling Machine is made for all kind of oil bottle or tin cans filling,in food industry or mechanical industry ,such as cooking oil,corn oil,rapeseed oil ,palm oil ,lube oil ,brake oil etc. All the contacted part with the oil is high quality stainless steel.. The machine adopt piston pump for filling..By adjusting the postion pump,it can fill all of the bottles in one filling machine ,with quick speed and high precision.
Automatic Piston Filling Machine integrating mechanical and pneumatic. Electrical and pneumatic components to choose is well-know brand .Controlled by the touch screen and PLC. Has advantage of reasonable design ,compact strcture,beautiful appearance, stable and reliable performance. High filling precision and strong feasibility. Easy operation and maintenace.
|
Automatic Piston Filling Machine
Specification
|
|||
|
Name
|
Automatic Piston Filling Machine | ||
|
Model
|
SFC-10
|
||
|
Filling Nozzles
|
2-12 nozzles, or customized
|
||
|
Power
|
2.5KW
|
||
|
Applied bottle range
|
30-100ml, 100-1000ml, 900ml-5000ml
|
||
|
Filling Accuracy
|
±0.1%
|
||
|
Filling speed
|
800-4200 bottles/hour , 30b/min per 4 filling nozzles 1L
|
||
|
Dimension
|
2200*1400*2300mm
|
||
|
Weight
|
800kg
|
||
|
Power supply
|
220V Single phase 50HZ 380V Three phase 50HZ
|
||
Configuration
| ITEM | SUPPLIER | Brand | |
| 1 | Touch screen | Taiwan | WEINVEIW |
| 2 | PLC | Japan | Mitsubishi |
| 3 | Photo sensor for bottles | Japan | OPTEX |
| 4 | solenoid valve | Taiwan | SHAKO |
| 5 | Level button | Mexico | JOHNSON CONTROLS |
| 6 | angle seat Valve | Jointed | BURKERT |
| 7 | Diving cylinder | Taiwan | AIRTAC |
| 8 | Power button | France | Schneider |
| 9 | Button | France | Schneider |
| 10 | frequency converter | France | Schneider |
| 11 | Magnetic switch | Taiwan | AIRTAC |
| 12 | oil-water separator | Taiwan | SHAKO |
| 13 | Speed reducer | China | Jiao xing |
| 14 | Relay | Japan | Omron |
| 15 | Servo motor | Japan | Panasonic |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
