| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | CE |
| Model Number: | VFFS-730 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 SET/MONTH |
| Model: | VFFS-730 | Bag Style: | Quad Seal Bag, Pillow And Gusset Bag |
|---|---|---|---|
| Edge Seal Width: | 5 To 10mm (0.2’’ To 0.4'') | Voltage: | AC220V/50Hz, 1phase Or Per Customer Specification |
| Power Consumption: | 3.5KW | Compressed Air Requirement: | 0.6 MPa, 0.36 M3／min ( 87 Psi, 12.7cfm) |
| High Light: | 5L Liquid Filling Machine,10mm Pouch Packing Machine,250mm Pouch Packing Machine |
||

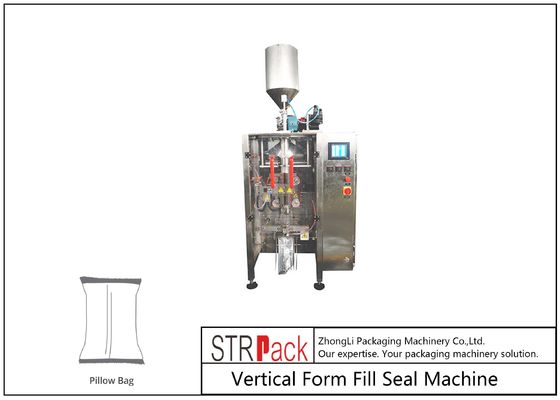

1L-5L Liquid Filling Machine Rubber Waterproofing Coatings Packing Machine
Product Application
This liquid packing machine applies to food, medicine, daily consumable, pesticide and some other special industry,mainly for various kinds of liquid, paste, such as milk,water, oil, cooking oil,juice,shampoo.etc
Features
1, Chinese and English touch screen display, intuitive operation, simple.
2, PLC computer control system, run more stable, without stopping to adjust any parameters.
3, Can store ten groups of parameters, more accurate replacement of species.using servo motor pull touch, more accurate positioning.independent temperature control system, accuracy of ± 1 ℃ degree.
4,Horizontal and vertical seal temperature independent control, can be a good variety of composite films, aluminum and other packaging materials.the diversity of packaging styles, back seal, angle, bag, punching and so on.
5, Bag production, sealing, packaging, printing a one-time completed.working environment clean, low noise.
Machine Specification:
(We have several models. We can customize the suitable one for you according to your requiredment.Just Tell us : Weight or Bag.)
| Modal | VFFS-320 | VFFS-420 | VFFS-520 | VFFS-720 |
| Measuring range | 150-800ml | 150-1500ml | 150-2000ml | 150-4000ml |
| Packaging speed | 5-70bags/min | 5-60bags/min | 10-60bags/min | 10-60bags/min |
| Bag width | 50-150mm | 60-200ml | 80-250mm | 100-350mm |
| Bag length | 80-240mm | 80-300mm | 80-350mm | 100-450mm |
| Film roll width | Max.320mm | Max.420mm | Max.520mm | Max.720mm |
| Film thickness | 0.03-0.09mm | |||
| Film material | OPP/CPP PET/PE PET-AL/PE lamination film,aluminum film | |||
| Machine size(LxWxH) | 1185*935*1245mm | 1217*1015*1343mm | 1488*1080*1490mm | 1716*1260*1820mm |
| Machine weight | 350kg | 450kg | 550kg | 700kg |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
About Us
--Focusing on Development, Packaging Industry Leader
--Keeping on Recruiting Talents and Innovation
--Advanced equipment, Guaranteed quality
