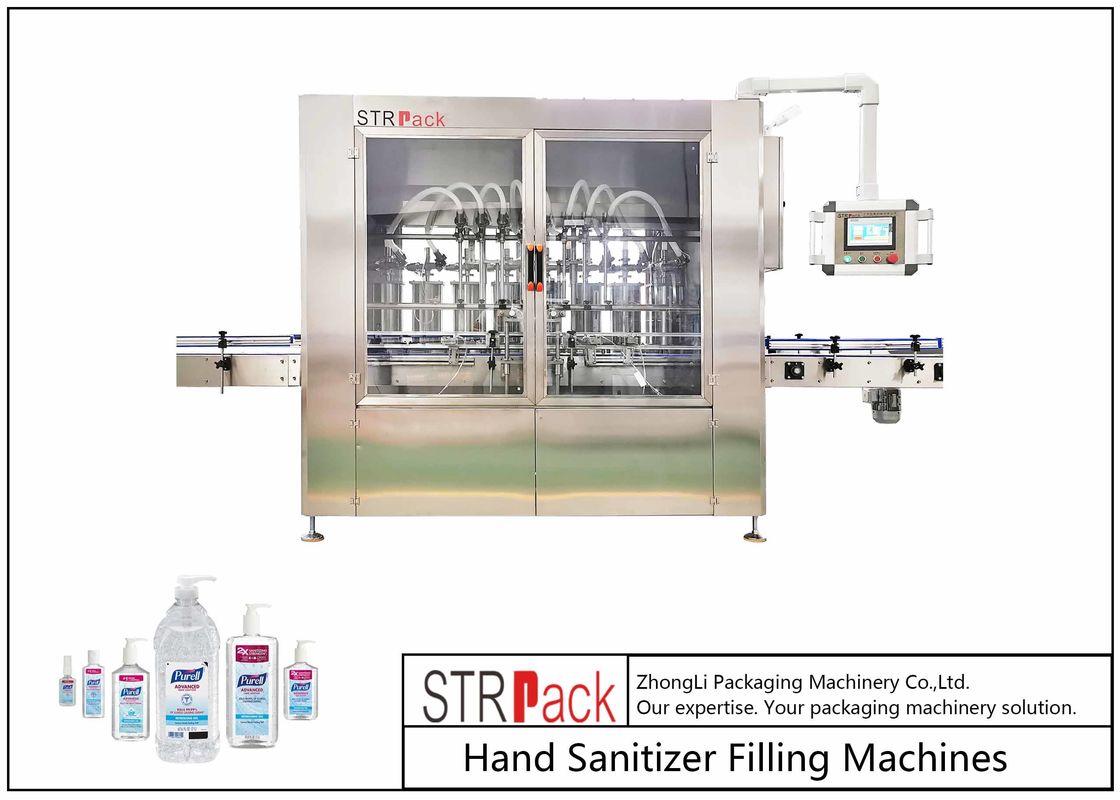

Hand Sanitizer Automatic Liquid Filling Machine For Liquid Soap,Disinfectant,Detergent,Bleach,Alcohol Gel Etc

Hand Sanitizer Automatic Liquid Filling Machine For Liquid Soap,Disinfectant,Detergent,Bleach,Alcohol Gel Etc

  • Hand Sanitizer Automatic Liquid Filling Machine For Liquid Soap,Disinfectant,Detergent,Bleach,Alcohol Gel Etc
  • Hand Sanitizer Automatic Liquid Filling Machine For Liquid Soap,Disinfectant,Detergent,Bleach,Alcohol Gel Etc
  • Hand Sanitizer Automatic Liquid Filling Machine For Liquid Soap,Disinfectant,Detergent,Bleach,Alcohol Gel Etc
  • Hand Sanitizer Automatic Liquid Filling Machine For Liquid Soap,Disinfectant,Detergent,Bleach,Alcohol Gel Etc
Hand Sanitizer Automatic Liquid Filling Machine For Liquid Soap,Disinfectant,Detergent,Bleach,Alcohol Gel Etc
Product Details:
Place of Origin: CHINA
Brand Name: STRPACK
Certification: CE,ISO
Model Number: STR
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Price Negotiable
Packaging Details: Wooden Case Packaging
Supply Ability: 1000 SET
Contact Now
Detailed Product Description
Applicable Specifications: 100-1000ml Production Capacity: 1000-2500 Bottles /hour
Filling Accuracy: ±1% Capping Rate: ≥99%
High Light:

1000ml Hand Sanitizer Filling Machine

,

2500bottles/h Liquid Filling Machine

,

GMP Liquid Filling Machine

Hand Sanitizer Filling Machines With 8 Filling Nozzles For 70% Alcohol Hand Sanitizer Gel Liquid Soap Filling Machine



1. Suitable for fluid no gas and filling semi liquid.
2. Adopts PLC and touch screen control.
3. The use of submersible filling.
4. In accordance with GMP standard.



For some of the best hand sanitizer filling machines available in the industry, choose STRPACK Machinery for all of your liquid packaging needs. We offer a selection of liquid fillers along with cappers, conveyors and labelers to form a complete production line that brings increased efficiency and quality to your facility. Hand sanitizer is one of the many different types of liquids our equipment is designed to fill.



Description:

Suitable for both low viscosity and high viscosity product, such as flowable liquids, shampoo, cream and lotions. The particles in the product are ok.



Features

All volumetric pistons are actuated by a big servo motor. Set the filling volume on the Touch screen and with an automatic filling volume calibration function.

Equipped with a Siemens PLC and a Siemens Touch screen control system.

German Festo pneumatic parts, and ABB or Panasonic motors.

Variable speed drive ensures the machine smooth operation and makes it easy to adjust from one bottle size to another.

With 8, 10, 12, 14 or 20 filling nozzles.

Diving nozzles are available to prevent bubbles formed during the filling process.

No bottle no filling mechanism.

A big tank is at the back of filler with level sensor control.

All parts in contact with the filling material are made of stainless steel 316L to meet cGMP standard.



Technical Parameters:



Filling nozzle: 8, 10, 12, 14, or 20 nozzles.
Filling volume: 80 - 300ml, 300 - 1000ml
Running speed: up to 120 bottles per minute.
Filling accuracy ±0.5%
Bottle diameter: 40 - 150mm.
Bottle height: 80 - 250mm.
Power supply AC208 - 415V 3phase 50/60Hz
Power 2.5kW
Total dimension 2500 * 900 * 2500MM
Weight: 750kg to 1500kg.





Hand Sanitizer Automatic Liquid Filling Machine For Liquid Soap,Disinfectant,Detergent,Bleach,Alcohol Gel Etc 0

Hand Sanitizer Automatic Liquid Filling Machine For Liquid Soap,Disinfectant,Detergent,Bleach,Alcohol Gel Etc 1








About Packing:
To ensure our service quality, we will execute the following packaging standards in delivery:
1. All the products before delivery should be tested by assemble and debugging engineer, wiped up and cleaned, then wrapped by stretch film to protect it from moist. The precision part need to flexible package.
2. In addition, without standard tools, manual and other documents, and allow ex-factory confirmation sheet, the machine cannot leave factory All the products will be packed in wooden case. The exported products use plywood case to pack. The foot margin of equipment fixed tightly to make the machine can experience loading and uploading, the upward mark will be posted on the wooden case.

Our services:
A-The whole system
The Seller ensure the whole system can get to the requested capacity, accept and cooperate with the Buyer to pass the final testing of the whole system.

B-On-site installation:
The Seller supply the on site installation for the whole system, but the fees including air tickets, foods, hotel and translator in this period should be paid by User,the subsidy is 80USD/day.

C-Technical support:
The Seller supplies the technical support of the whole use life of the system,including the capping machine,and the procedures.

D-Spare parts supply:
The Seller should supply the quick-wear parts with the machine, to help the Buyer n further using. In the quality guarantee period, the Seller will supply the broken parts for free, except the easy worn parts or the damage is caused by wrong operation.After the guarantee period, the Seller will supply all the parts that the User need for the whole use life of the machine in cost price.
