Place of Origin: | CHINA |
Brand Name: | STRPACK |
Certification: | ISO,CE |
Model Number: | STR |
Minimum Order Quantity: | 1 |
---|---|
Price: | Price Negotiable |
Packaging Details: | Wooden Case Packaging |
Delivery Time: | 3-50 Working Days |
Payment Terms: | TT/LC |
Supply Ability: | 1000 SET |
Model: | SF-Q2-160 | Container Size: | φ30-160mm , H50-260mm |
---|---|---|---|
Filling Weight: | 10 – 5000g | Filling Accuracy: | ≤ 500g, ≤±1% |
Filling Speed: | 20 - 40 Bottles/min | Power Supply: | 3P AC208-415V 50/60Hz |
Highlight: | powder bottle filling machine,powder bag filling machine |

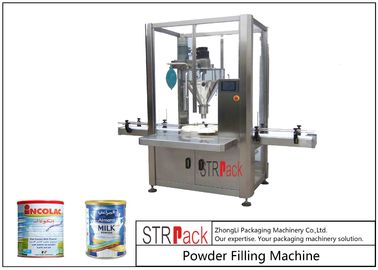

Full Cream Milk Powder Single Head Powder Filling Machine With Auger Filling Machine For Tin Can Bottle Powder Packing Machine
Automatic auger filling machine
Aplication:
This machine is suitable for 2-500g material circular flat plastic or glass bottles
of powder filling capping. This machine is made of high precision cam indexing
mechanism to provide indexing equal-dividing disk positioning plug cover;
acceleration cam drive provides capping head lifting; constant torque capping;
high precision screw metering filling; without touch screen control. Bottle filling,
without inner plug, the outer cover. With accurate positioning, stable
transmission, protective cap, accurate in measurement. The advantages of
simple operation, fully in line with the GMP requirements of the national.
Characteristic:
1. Computer control, accurate, convenient operation of installed capacity.
2. The engine speed can be stepless variable speed.
3. Production of automatic quantitative control.
4. Multiple fault prompting function.
5. Automatic shutdown function, appear continuously without filling cases can be
automatically shut down.
The appearance of the use of SUS304 stainless steel easy maintenance.
316L stainless steel screw filling, corrosion resistance strong.
This equipment is in full compliance with GMP requirements
Technical specification:
1.Machine name | High quality powder filling machine for sale |
2.Model | SFP-1A |
3.Filling volume | 5-5000g(can be customized) |
4.Filling nozzle | 1/2/4/6 |
5.Speed | 30-120bpm |
6.Error Range | ≤±1% |
7.Single machine noise | ≤50dB |
8.Driven Type | Electrical and Pneumatic |
9.Compressed air pressure | 0.4~0.6Mpa |
10.Speed control | Frequency conversion |
11.Power |
1.6KW,50-60HZ 220/380V/110V/415V (customized to different country) |
12.Weight | 800-1200Kg |
13.Dimension |
L1500*970*1800 (1 filling nozzle) (Differ by filling numbers & bottle size) |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
