| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | ISO,CE |
| Model Number: | STR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price Negotiable |
| Packaging Details: | Wooden Case Packaging |
| Delivery Time: | 3-50 Working Days |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000 SET |
| Model: | AFP | Filling Capacity: | 15-750ml (can Be Customized) |
|---|---|---|---|
| Filling Accuracy: | ≤±1% | Propellant Filling Capacity: | 15-750ml (can Be Customized) |
| Propellant Filling Accuracy: | ≤±1% | Capping Accuracy: | ≤1% |
| High Light: | aerosol spray paint filling machine,aerosol gas filling machine |
||

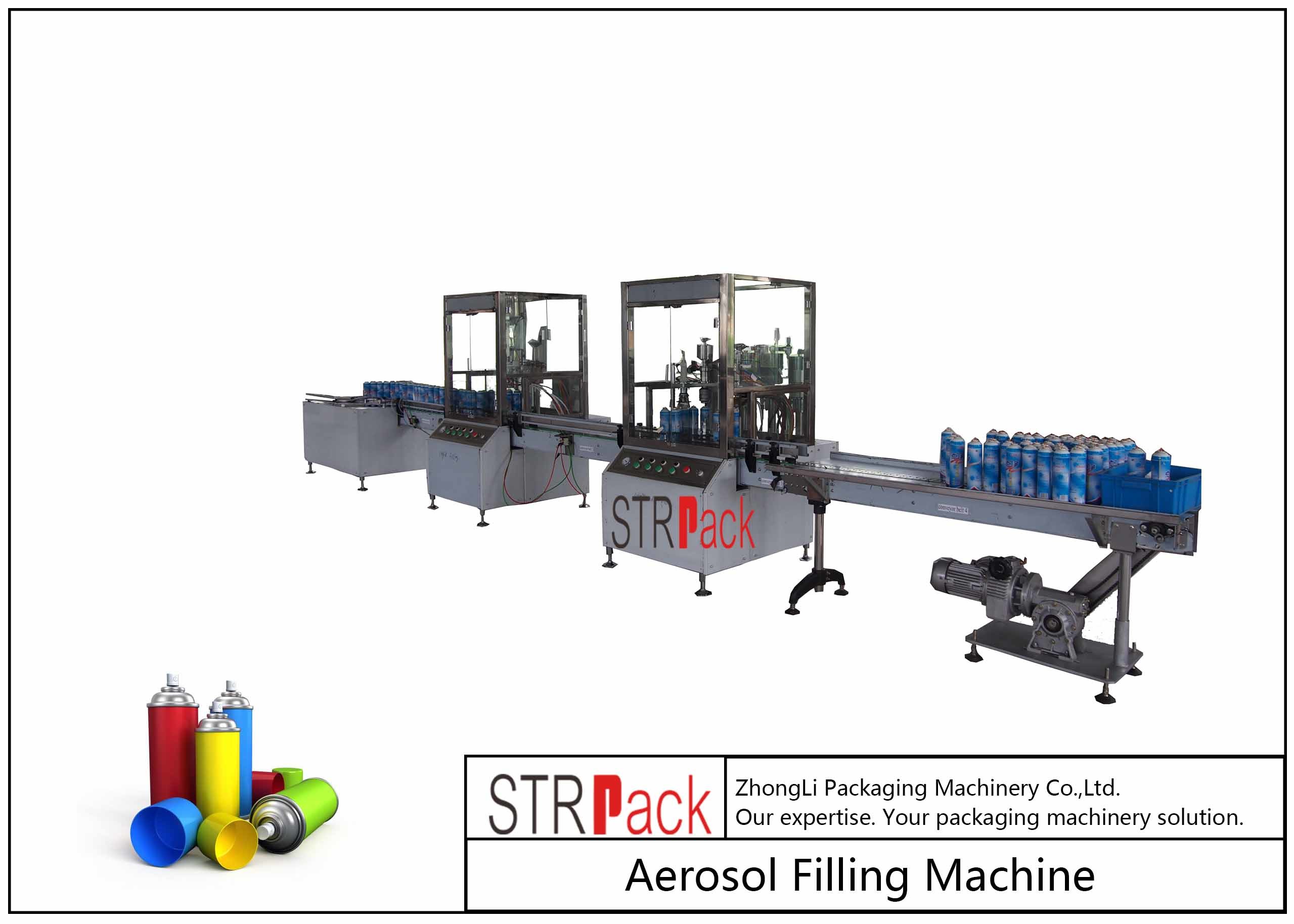

Spray-Paint Aerosol Filling Line With Automatic Spray Paint Aerosol Filling Machine
The filling machine based on either a manual or pneumatic operation. The compressor aerosol can filling enables you to fill spray bottles with color, based on an air pressure injection. The device is suitable for almost any type of liquid color such as Polyurethane, Epoxy, Acrylic, Vinyl Siloksiran and more.
Providing a simple operating system, the device allows every user – including those who are not professional – to fill spray bottles with a desired color, on site. With just a bit of color and a few simple actions – the spray bottle will be in your hand, ready to use.
The device is powerful, comfortable, safe to use and easy to clean. There are different types of compressors, adapted to fill different volumes of color, from individual spray bottles to dozens of bottles in one hour.
Automatic Spray-Paint Aerosol Filling Machine is mainly used to fill all kinds of aerosol cans with international standard 1" valve. It can be suitable for filling all kinds of paint and propellant for spray. The line can be equipped with Automatic Ball Dropper, Automatic Valve Placer, Automatic Weight Checker, Automatic Actuator Placer, automatic cap presser, automatic spray code machine, automatic water bath leakage tester,etc.
| Model | AFP |
| Filling capacity | 15-750ml (can be customized) |
| Filling accuracy | ≤±1% |
| Propellant filling capacity | 15-750ml (can be customized) |
| Propellant filling accuracy | ≤±1% |
| Capping accuracy | ≤1% |
| Production capacity | 2400-3600 cans/hr |
| Air source | 0.6Mpa-1Mpa clean and stable air source |
| Max air consumption | 3 M³/min |
| Can Height | 80~330 |
| Can Diameter | Φ35~Φ80 |
| Weight | about 2000kg |
| Dimension(L×W×H) | 12000×1500×2100 |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
