| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | CE |
| Model Number: | VFFS-730 |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Wooden |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50 SET/MONTH |
| Model: | VFFS-350 | Bag Style: | Quad Seal Bag, Pillow And Gusset Bag |
|---|---|---|---|
| Edge Seal Width: | 5 To 10mm (0.2’’ To 0.4'') | Voltage: | AC220V/50Hz, 1phase Or Per Customer Specification |
| Power Consumption: | 3.5KW | Compressed Air Requirement: | 0.6 MPa, 0.36 M3／min ( 87 Psi, 12.7cfm) |
| High Light: | 5KG Chocolate Sauce Packing Machine,PLC Gusseted Pouch Packing Machine,100bags/min Pouch Packing Machine |
||

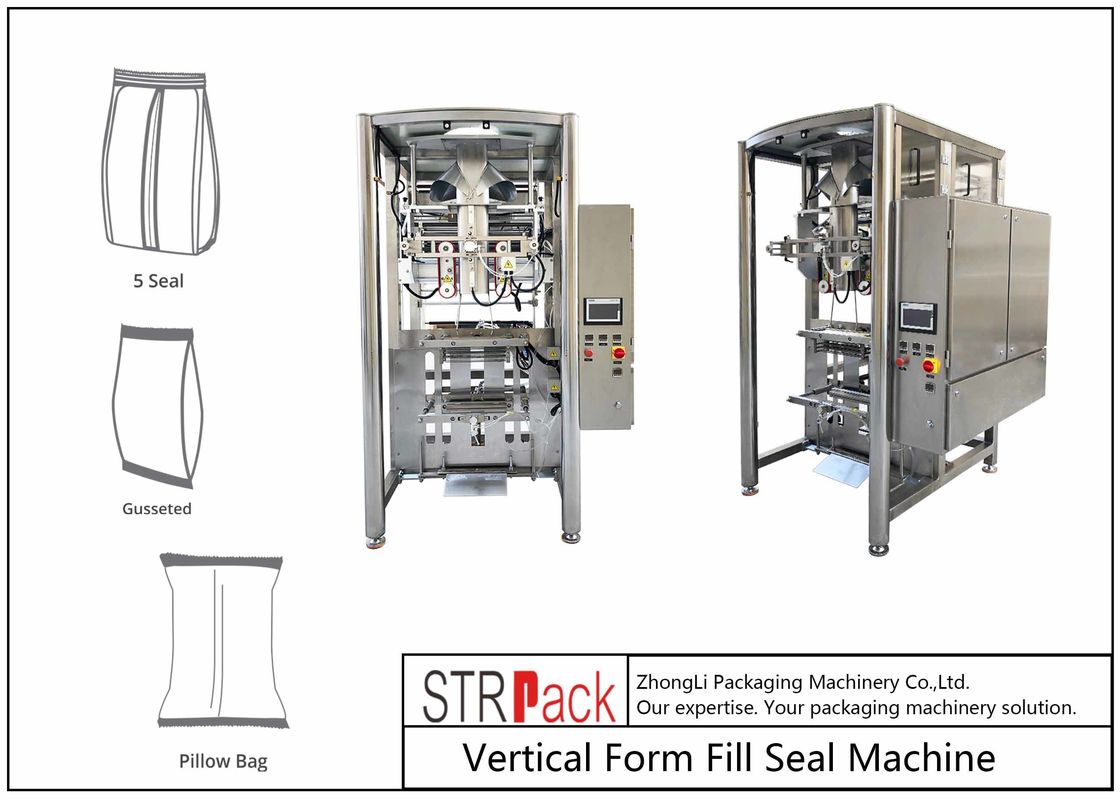

Automatic pouch bag chocolate sauce packing machinery chocolate cream jam packaging machine
Working Principle:
The film pulling on vertical packaging machine would be driven by servo motor which is controlled by PLC. Film would be released to the stainless steel bag forming tube to be vertical sealed. In the meantime, the product would be filled into the bag. Horizontal sealing jaws would work with the photoelectric to cut the bag in setting length and position to finish a bag.
Feature:
1. Full stainless steel made, long service life.
2. Controlled by PLC & HMI.
3.Easy installation. No tool would be required for bag forming tube changing.
4.Independent temperature control for vertical sealing & horizontal sealing which makes it suitable for various kinds of film.
5. Intelligent design, no product no bag forming.
6. Servo motor driven film pulling, accurate, reliable and stable.
7. Optional vacuum film pulling system could make belt closer to film for a more flat bag.
8．Ribbon coding system for date and batch number printing. Clear, stable & durable.

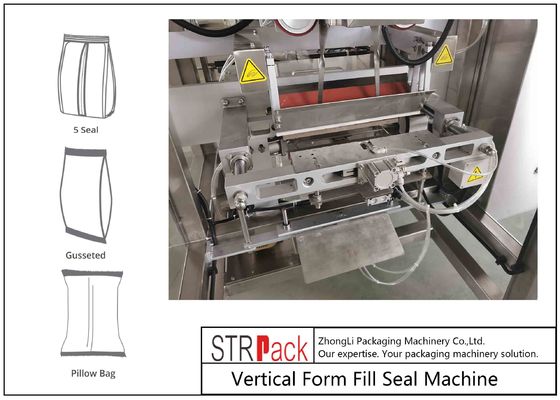

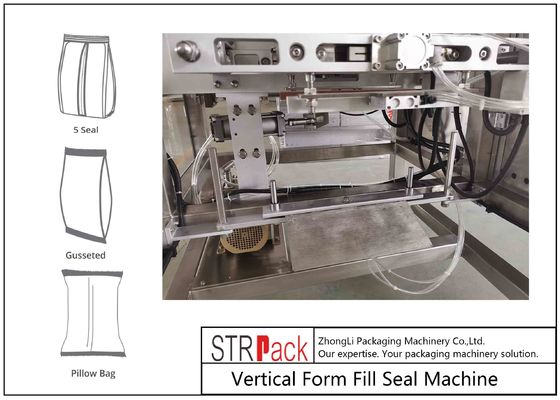

9. Servo driven horizontal sealing, fast, stable and lower noise.
10. Advanced coating method to make machine parts durable. Vertical & horizontal sealing jaws are made of unique alloy, durable & non-sticky.

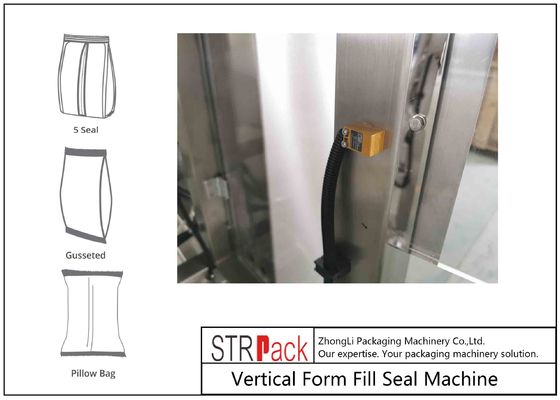

11. With film position correction function to ensure beautiful finished bag.
12. Suitable for laminated film such as paper/PE, PET/PE, PP/PE, aluminum foil based. Monolayer polyethylene film is also available as an option.
Technical Parameter
| Model | ZVF-350B |
| Bag Type | Pillow Bag, Gusseted Bag, Block Bottom Bag |
| Product Characteristic: | Granules, Powders, Liquids, Pastes |
| Dosing System Compatible: | Volumetric Cup , Piston Filler, Linear Scale , Multi-Head Scale, Auger Filler |
| Control By | PLC with HMI Touch Screen |
| Running Motion: | Intermittent |
| Speed | 50-100 bags/min |
| Bag Length | 50 to 460mm (2.0 to 13.4") |
| Bag Width | 80 to 350mm (3.1 to 10.3") |
| Film Width | ≤540mm |
| Film Thickness | 0.04-0.12mm |
| Reel Outer Diameter | Ф500mm |
| Core Inner Diameter | Ф75mm |
| Power Supply | Or per customer’s specification |
| Power Consumption | 4KW |
| Air Source | 0.6MPa,0.36 M3 /min |
| Machine Dimension | 1600x1217x1930mm (L x W x H) |
| Machine Weight | 1000KG |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
