    Product Details:

    Place of Origin: CHINA
    Brand Name: STRPACK
    Certification: ISO,CE
    Model Number: STR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Price Negotiable
    Packaging Details: Wooden Case Packaging
    Delivery Time: 3-50 Working Days
    Payment Terms: TT/LC
    Supply Ability: 1000 SET
    Contact Now
    Detailed Product Description
    Type: Packaging Line Packaging Type: Bottles, Cartons
    Driven Type: Electric Air Pressure: 6-7kg/cu.cm
    Voltage: 220V,50/60Hz Power: 3kw

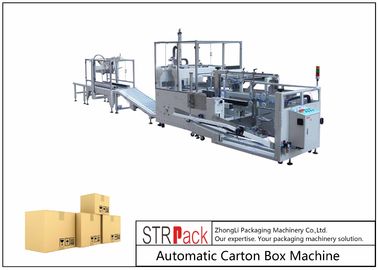

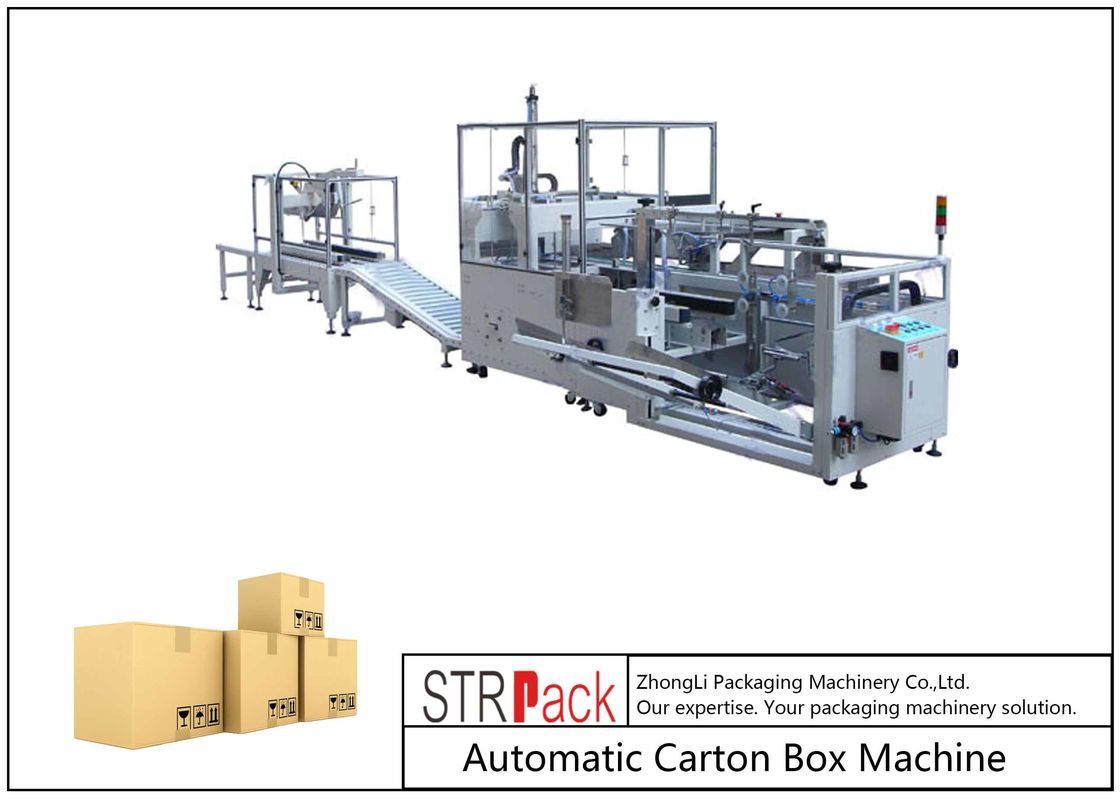

    Automatic Case Packing Machine Dropdown Carton Packer For Bottle With Servo Control System For Bottle Filling Machine





    This packing machine adopts coordinate picking system. It adopts the vertical upper and lower packing method, this machine is suitable for medicine,food,beverage,beer,liquor,oil,dailychemical,bottled food and other industries.





    Product Description

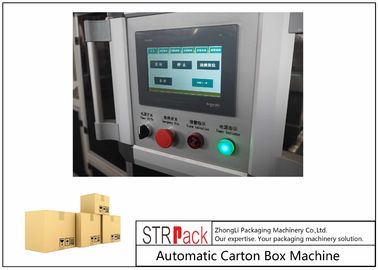

    1. Control panel:Adopt Siemens touch screen control panel, have automatic palletizing,counting,fault alarm and other functions, have perfect mechanical,electrical protection and technology protection function.

    2. Work speed can automatically adjust according to the box container flow condition of conveyor belt,and complete the communication link with the conveyor belt.

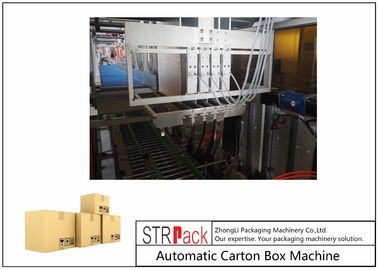

    3. Pick and place device: cylinder stepped up as well as servo drive is controlled by PLC,equipped with anti-sticking protection device preventing none breakage in the product when the carton set.

    4. In and out of the box conveyor belt: adopt frequency conversion control, can replace according to different product,automatically adjust the working speed of the conveyor belt.

    5. Safety protection device:The whole machine is equipped with organic glass door,weigh reasonably in the grappling fixture.There are the limit switch and the anti-sticking machine.

    6. Whole aluminum and stainless steel frame:the surface is beautiful, small volume.

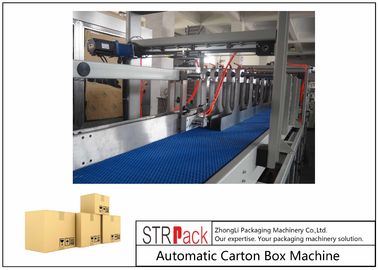

    7. The machine has feeding conveyor belt, case packing conveyor and carton direction adjustment system.







    Specification



    case packer

    Produce capacity 1500
    Bottle type 5L/b,4b/case
    Packing qty per cycle 4
    Bottle conveyor height 1000±25mm
    Carton height 500±25mm
    Power supply 380V 50-60HZ
    Power 5kw
    Air pressure 6bars,80nl/min
    Net weight 2550kg
    Dimension(mm) 1500*1000*1800

    case opening machine

    Carton size 200-500L/150-420H/100-500mm
    Table height(min) 650
    Spreed 500-720case/hr
    Outline size 2000*1900*1200
    Power 220/380v,50/60HZ
    Air compress 5-6kg/cm^2 150ne/min
    Adhesive tape 48mm&75mm
    Weight 350kgs

    carton sealing machine

    Sealing carton ability 18-25 carton/min
    Power 220v 300w
    Air compress 0.5mpa
    Weight

    400KG





    Vertical Drop Down Carton Packing Machine High Efficiency For Medicine / Food Industry



    Vertical Drop Down Carton Packing Machine High Efficiency For Medicine / Food IndustryVertical Drop Down Carton Packing Machine High Efficiency For Medicine / Food Industry

    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
