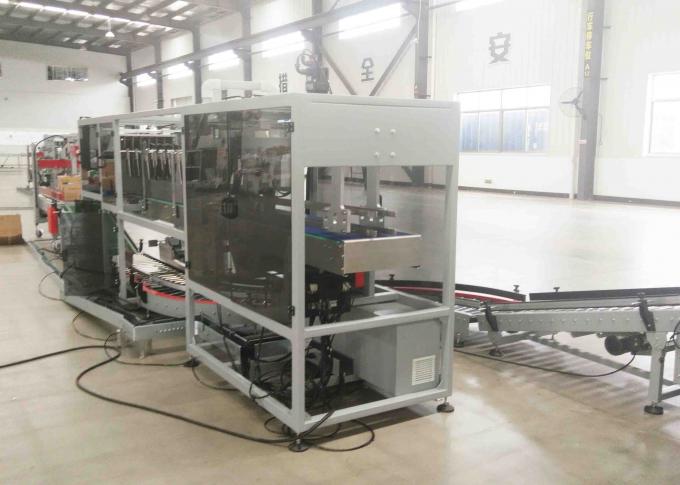

Liquid Filling Line Carton Packing Machine For 250ML-2L Round Bottle Carton Packaging

Liquid Filling Line Carton Packing Machine For 250ML-2L Round Bottle Carton Packaging

    • Liquid Filling Line Carton Packing Machine For 250ML-2L Round Bottle Carton Packaging
    • Liquid Filling Line Carton Packing Machine For 250ML-2L Round Bottle Carton Packaging
    • Liquid Filling Line Carton Packing Machine For 250ML-2L Round Bottle Carton Packaging
    • Liquid Filling Line Carton Packing Machine For 250ML-2L Round Bottle Carton Packaging
  • Liquid Filling Line Carton Packing Machine For 250ML-2L Round Bottle Carton Packaging

    Product Details:

    Place of Origin: CHINA
    Brand Name: STRPACK
    Certification: ISO,CE
    Model Number: STR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Price Negotiable
    Packaging Details: Wooden Case Packaging
    Delivery Time: 3-50 Working Days
    Payment Terms: TT/LC
    Supply Ability: 1000 SET
    Contact Now
    Detailed Product Description
    Type: Packaging Line Packaging Type: Bottles, Cartons
    Driven Type: Electric Air Pressure: 6-7kg/cu.cm
    Voltage: 220V,50/60Hz Power: 3kw

    Automatic Bottle Carton Case Packer Machine For 250ML-2L Round Bottle Carton Packaging Machine With lubricating oil,Detergent,Aerosol products Filling Line


    Configuration:

     Automatic Case Erector1set
     Automatic Encasing Machine1set
     Auto Flap Carton Sealer 1set


    Advantages:
    The equipment adopts PW positioning, PLC, automatic operation, the main rotation driven by imported motor, at all levels through the chain, sprocket rotation speed. Its high degree of automation, reliable control, easy adjustment, intelligent operation and other characteristics, can be widely used in the beer, beverage, chemical, food, pharmaceutical and other industries, can carry on various kinds of bottle jar two packaging, and supporting the use of automatic filling production line.

    Features of Automatic Case Packer For Bottled  Cartoning Packing Machine For Bottled

    1,Controlled by servo system,streamlined moving track designed,precise locating and carton moving without any shaking
    2,Auto open carton top and location before packing,assurance of the packing and no stop happens
    3,The erector is man-machine interface control,auto updating moving process and alarming
    4,Control mode:PLC+Transducer+Touch screen+standard control button+signal switch+manual control three control pattern
    5,Touch screen could help to find the fault and solve problem at the first time.

    Technical data:


    Product capacity
    20-25case/min
    Rating power15KW
    Used power supply380V,50Hz
    Controlling power supply24V DV
    Compressor air1500L/min,0.6-0.8MPA
    Hot melting glue solidify1.5-2S
    Machine weight4000KG
    Overall size3L6258*W2582*H2115MM
    Bottle entry conveyor sizeL3000*W620*1200MM
    DimensionLength 350-450



    Liquid Filling Line Carton Packing Machine For 250ML-2L Round Bottle Carton Packaging

    Main component detail list

    noNamespecificationnumberbrand
    1board production component
    2Plant metal component
    3pneumatic component 1Taiwan Airtec
    4Electric controlling component and accessory
     Photoelectric switch 1South Korea Autonics
    Proximity switch 4South Korea Autonics
    PLC 1SIEMENS
    Touch screen 1SIEMENS
    Frequency converter  2Taiwan TECO
    AC contactor 9France Schneider
    Mid-relay 12France Schneider



    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
    About Us
    --Focusing on Development, Packaging Industry Leader
    --Keeping on Recruiting Talents and Innovation
    --Advanced equipment, Guaranteed quality


    For quick response please contact us by cellphone/WhatsApp:008617317720909
    Liquid Filling Line Carton Packing Machine For 250ML-2L Round Bottle Carton Packaging

    Liquid Filling Line Carton Packing Machine For 250ML-2L Round Bottle Carton Packaging
