| Place of Origin: | CHINA |
| Brand Name: | STRPACK |
| Certification: | ISO,CE |
| Model Number: | STR |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Price Negotiable |
| Packaging Details: | Wooden Case Packaging |
| Delivery Time: | 3-50 Working Days |
| Payment Terms: | TT/LC |
| Supply Ability: | 1000 SET |
| Type: | Packaging Line | Packaging Type: | Bottles, Cartons |
|---|---|---|---|
| Driven Type: | Electric | Air Pressure: | 6-7kg/cu.cm |
| Voltage: | 220V,50/60Hz | Power: | 3kw |
| High Light: | carton box packing machine,automatic carton folding machine |
||

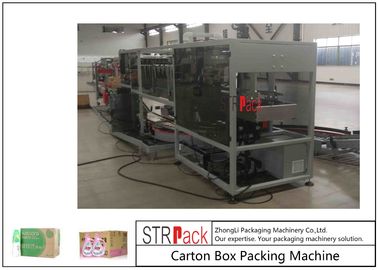

Automatic Bottle Carton Case Packer Machine For lubricating oil,Detergent,Aerosol products Filling Line With Case Erector Machine
Configuration:
| Automatic Case Erector | 1set |
| Automatic Encasing Machine | 1set |
| Auto Flap Carton Sealer | 1set |
Automatic water bottle drop case packing machine
Description:
1. Case conveying group
To this equipment, the flat-top chain as a transport box, flat top chain runed by the reducer. Its function is to enter
the empty box to the machine, input the bottles, and then output the box. According to packing quantity at each time,
enter empty boxes into the machine, the empty box stops and waits at the position of loading bottles for bottling,
sent cartons out of the machine finally.
2. Bottle conveying group
This device is for arranging and conveying the bottles from production line to the position of dropping.
3. Bottle pushing group
This device is for falling the bottles to bottle receiving group when bottles reach
4. Bottle receiving group
When bottles reach this group, it will remove down and open, bottles will falling into empty cartons.
Competitive Advantage:
3.1 A lower investment cost.
3.2 Faster return on investment.
3.3 High-quality and advanced device configuration, use the international generic accessories.
3.4 Reliable main drive gear and synchronous bottle blocking, bottle grabbing and bottle guiding system.
3.5 Reliable bottle input, bottle counseling, synchronous bottle transporting, sub-bottle system.
3.6 Expand production, reduce material waste and improve yield.
3.7 Equipment with flexible application and easy to operate.
3.8 Synchronous adjustment, easy change-over, and time-saving.
3.9 User-friendly interface.
Equipment datasheet:
| Model | Automatic water bottle drop case packing machine |
| Packing speed | 5-15 cartons/min |
| Power | 3kw |
| Air consumption | <0.9m3 /min |
| Working noise | <75(db) |
| Dimension | 5000mmx1000mmx1650mm (L x W x H ) |
| Weight | 1200kg |
| Applicable packing containers | Bottles, cans etc for beverage, drinking water, sauce etc |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
