60bpm Speed Horizontal Form Fill Seal Machine , Doypack Packaging Machine

60bpm Speed Horizontal Form Fill Seal Machine , Doypack Packaging Machine

    • 60bpm Speed Horizontal Form Fill Seal Machine , Doypack Packaging Machine
    • 60bpm Speed Horizontal Form Fill Seal Machine , Doypack Packaging Machine
    • 60bpm Speed Horizontal Form Fill Seal Machine , Doypack Packaging Machine
    • 60bpm Speed Horizontal Form Fill Seal Machine , Doypack Packaging Machine
  • 60bpm Speed Horizontal Form Fill Seal Machine , Doypack Packaging Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: STRPACK
    Certification: ISO,CE
    Model Number: STR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Price Negotiable
    Packaging Details: Wooden Case Packaging
    Delivery Time: 3-50 Working Days
    Payment Terms: TT/LC
    Supply Ability: 1000 SET
    Contact Now
    Detailed Product Description
    Application: Apparel, Beverage, Chemical Power: 25kw
    Voltage: 380V/400V/480V Sachet Type: Stand Up Pouch, Normal Pouch
    Product Type: Powder,Granule,Liquid,Paste Packing Material: Complex Film

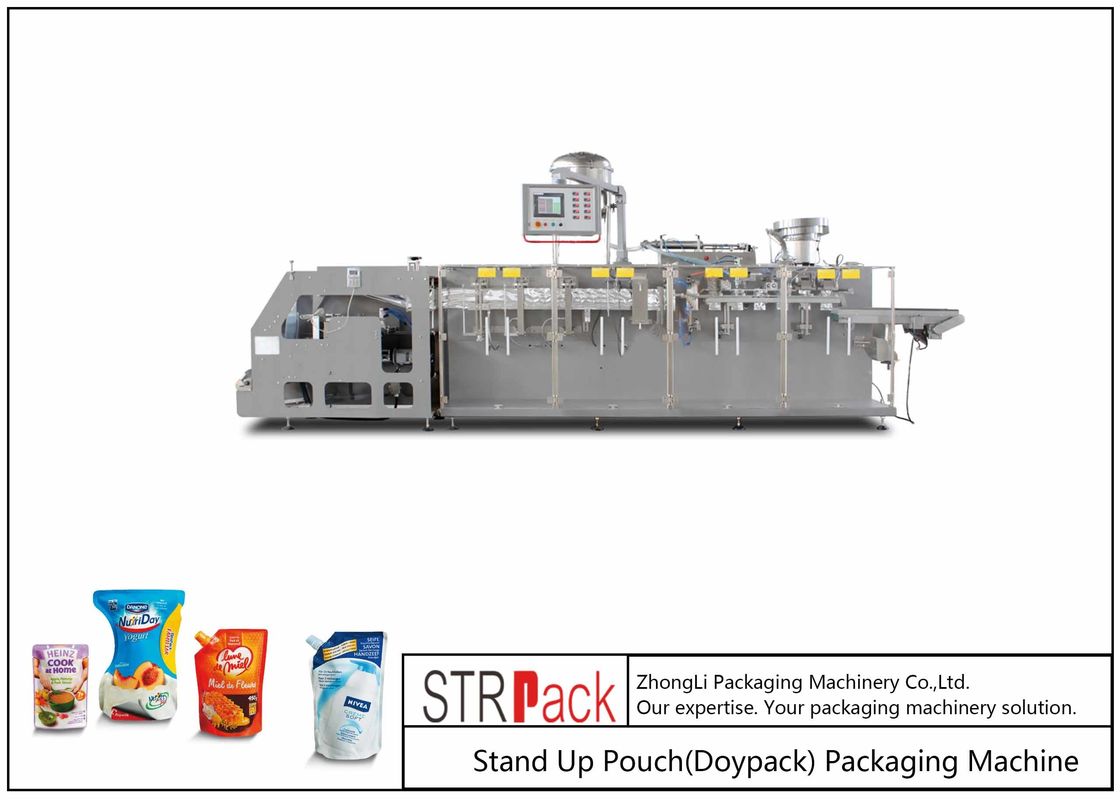

    Full Automatic Stand Up Pouch(Doypack) Packaging Machine





    1. Versatility strong, one machine can be realized powder, liquid, granules, paste different types of

    packaging materials.

    2. Automatic servo-correcting device can effectively solve the bag wrong side of the issue to ensure the overall stability of equipment, improve packaging speed.

    3. Linear servo pull bag system that automatically adjust bag width size, improve equipment stability.

    4. Product packaging system: using heat sealing packaging materials (polyethylene, multilayer composite coating),

    the automatic bagging completed. Measures such as packaging filling and sealing process fully automated production facilities.

    Trilateral closure pocket or bag is a four-sided flat closure. Use different forms of filling machine, and packaging different products.

    5. Control System: PLC programmable computer controller Schneider-electric inverter and so on, high integration, the ability to control and reliable operation .

    Touch screen technology enabled applications to operate machines more reliable and convenient .Photoelectric sensor, encoder,

    the switches are close to the import of advanced sensors. Machinery and electronics integration has been a perfect performance.

    6. Filling System: FESTO system, reliable and stable performance adjustments quick and easy.



    Technical Parameter:



    Machine operation HFFS Horizontal form fill and seal
    Technology concept Pouch origin Form the reel
    Pouch transport system intermittent
    Construction Machine frame Stainless steel SUS304/ Carbon steel, the surface plastic coating
    Except internal mechanisms Parts painted Stainless steel colour/Stainless steel SUS304,and Aluminum alloy
    Parts in contact with product Stainless steel SUS316L
    Reel Reel diameter 500mm
    Reel Width 720mm
    Reel core 76mm
    Filling stations   2 (with 2-4 heads)
    Product production   Optional gas flushing (N2) or steam injection
    Machine dimensions Length×width×height 6200×1100×2000mm
    Machine weight   2500Kg
    Pouch dimensions range(mm) Length×width×height   Minimum Maximum
    FLT-1 100×120 260×300
    FLT-2 80+80×120 130+130×300
    STU-1 100×120×(32+32) 260×300×(52.5+52.5)
    STU-2 80+80×120×(32+32) 130+130×300×(41+41)

    Packaging speed

    (pouches per minute)

    And pouch volume

    (c.c)

        Speed maximum(ppm) Volume maximum(c.c.)
    with 3 and 4 side seals FLT-1 90 2000
    FLT-2 160 600
    With doypack STU-1 70 2500
    STU-2 120 750
    Consumption Electrical 14.0kw
    Air consumption 120L/min 0.6Mpa
    Electrical Data   200-415V/50-60Hz/N+G(According to customer requirements customization)
    Noise level   70dB
    Safety   CE standards



    60bpm Speed Horizontal Form Fill Seal Machine , Doypack Packaging Machine



    60bpm Speed Horizontal Form Fill Seal Machine , Doypack Packaging Machine



    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
