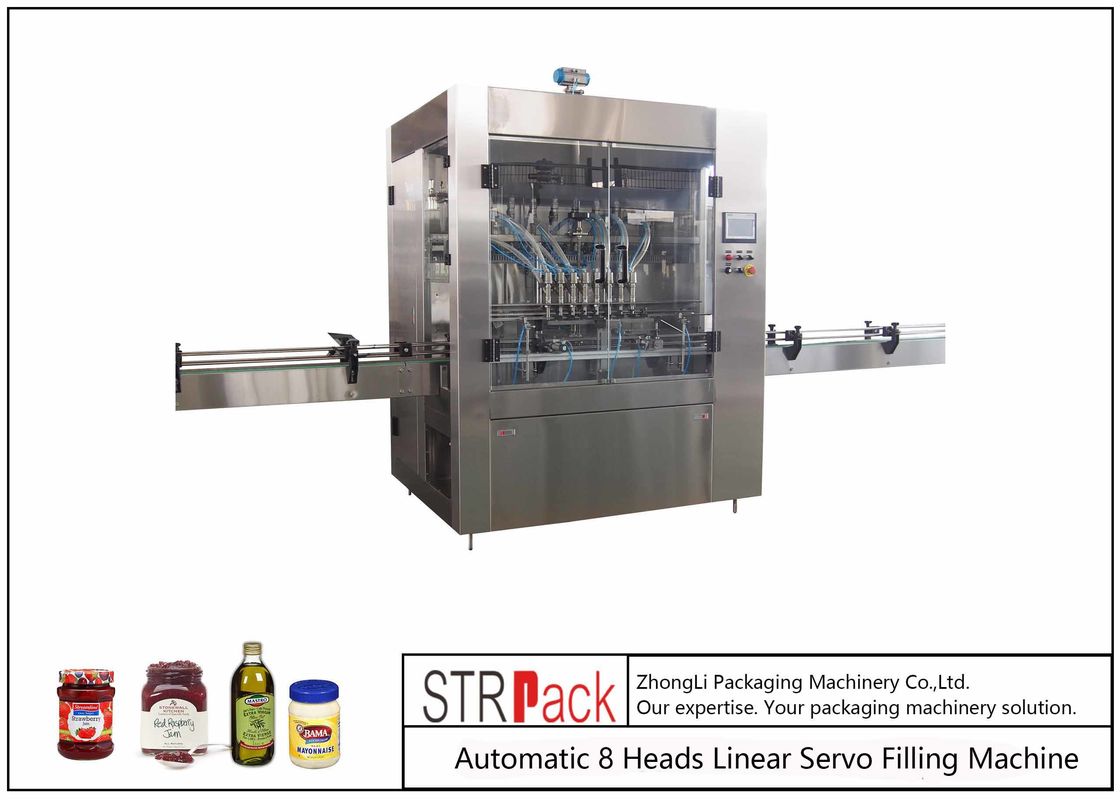

30-80 B/MIN Automatic 8 Heads Linear Servo Motor Control Piston Filling Machine For 0.5-5L

30-80 B/MIN Automatic 8 Heads Linear Servo Motor Control Piston Filling Machine For 0.5-5L

    • 30-80 B/MIN Automatic 8 Heads Linear Servo Motor Control Piston Filling Machine For 0.5-5L
    • 30-80 B/MIN Automatic 8 Heads Linear Servo Motor Control Piston Filling Machine For 0.5-5L
    • 30-80 B/MIN Automatic 8 Heads Linear Servo Motor Control Piston Filling Machine For 0.5-5L
    • 30-80 B/MIN Automatic 8 Heads Linear Servo Motor Control Piston Filling Machine For 0.5-5L
  • 30-80 B/MIN Automatic 8 Heads Linear Servo Motor Control Piston Filling Machine For 0.5-5L

    Product Details:

    Place of Origin: CHINA
    Brand Name: STRPACK
    Certification: ISO,CE
    Model Number: STR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Price Negotiable
    Packaging Details: Wooden Case Packaging
    Delivery Time: 3-50 Working Days
    Payment Terms: TT/LC
    Supply Ability: 1000 SET
    Contact Now
    Detailed Product Description
    Type: Filling Machine Packaging Type: Bottles, Cans
    Driven Type: Servo Motor Voltage: 220V
    Application: Chemical, Commodity The Noise: ≤70 DB


    We offer our clients a spectrum of paste filling machines which are widely used in diverse industries which are engaged in filling substance or pastes. Our range is high in demand owing to its high end features such as trouble free performance and high functionality. Our range of paste filling machines includes cream filling machines, ointment filling machines, automatic paste filling machine and semi automatic paste filling machines.


    Description

    Use servo motor control volume measurement more accurate . Suitable for filling Liquid, semi-liquid or high viscosity cream etc.

    This machine is the new-generation improved volumetric filling machine, controlled by microcomputer PLC programmable, equip with photo electricity, transduction and pneumatic action.







    Recommended products

    Disinfectant, washing detergents, washing liquid, dishwasher rinse aid, fabric conditioner, glass cleaner, bathroom sprays, kitchen sprays, bath cleaner, floor cleaner, floor polish, Edible oil etc.







    Advantages

    Suitable for filling Liquid, semi-liquid or high viscosity cream etc.

    High Filing Precise

    High Filling Speed

    Servo Motor Driving

    High automatization, Convenient adjustment, Easy setting volume on Touch Screen

    No change parts for different bottles





    Key Features
    • Equip with 12 filling nozzles
    • Food grade stainless steel constructed
    • Color touch screen controls, easy setting
    • PLC controlled
    • Use servo control system, ensure the piston can always reaches constant position
    • Replacement filling specifications only in touch screen can be changed in parameters, and all filling first change in position, fine-tuning dose it in touch screen adjustment
    • Variable speed filling: in filling process, when close to target filling capacity can be applied to realize speed slow filling, prevent the liquid spill bottle mouth cause pollution
    • Selecting the international famous brand electrical components configuration. Mitsubishi Japan PLC computer, omron photoelectric, Taiwan is produced touch screen, ensure the quality of its outstanding with long-term performance
    • With level sensor, used to check the level position of hopper, plus with high and low level check and alarm device.
    • Quick connect fittings to easy clean
    • No Product/No Fill , No Bottle/No Fill



    Options



    4-12 filling nozzles for choice






    Specifications:



    Automatic Liquid Filling Machine

    Automatic Liquid Filling Machine Type: Filling Machine, Pistion cylinder
    Application: Chemical, Medical, Liquid, Lotion, Shampoo, oil etc
    Voltage: 220V/50Hz
    Power: 1.5KW
    Filling nozzles: 2-12 accept customize
    Filling volume: 30-1000ml accept customize
    Filling speed: 10-60 bottles/min
    Filling accurate: SERVO motor control
    Production line: Capping machine, labeling machine
    Dimension(L*W*H): 2500*1200*2400mm



    30-80 B/MIN Automatic 8 Heads Linear Servo Motor Control Piston Filling Machine For 0.5-5L



    30-80 B/MIN Automatic 8 Heads Linear Servo Motor Control Piston Filling Machine For 0.5-5L



    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
