Product Details:
Place of Origin: CHINA
Brand Name: STRPACK
Certification: CE
Model Number: Seasoning Powder Stand-up Pouch Automatic Powder Packaging Machine Bag Given Packing Machine With Auger Filler
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Wooden
Payment Terms: L/C, T/T
Supply Ability: 50 SET/MONTH
Contact Now
Detailed Product Description
Bag Type: Premade Bag Model: CF6-300
Working Position: Six-working Position Speed: Up To 40bags/min
Film Thickness: 0.04-0.12mm Measurement Accuracy: ±0.5-5g
High Light:

powder packaging equipment

,

food packaging machine

Chemical Powder Fertilizer Powder Packaging Machine with Augur Filler Detergent Powder Filling Machine

Chemical Powder Fertilizer Powder Packaging Machine with Augur Filler Detergent Powder Filling Machine 0



Summarize:

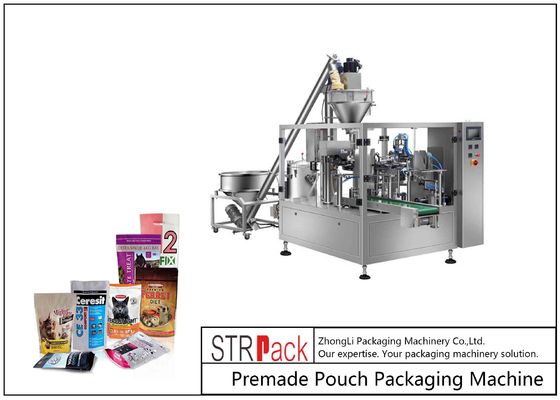

This automatic packing machine unit is specialized in the powder (such as milk powder, coffee powder, seasoning, additive), which includes the rotary packing machine and auger filler.

Main technical Parameters

This machine is the typical automatic bag feeding packing machine; it can finish the following work: clasp the bag, print the bag, open the bag, filling, vibrating, sealing, shaping, conveying etc. It is suitable for many kinds of materials and different packaging bag. It is easy to adjust and operate and to change the packing specification. The machine is equipped with automatic checking and safety monitoring function. It can lower the consumption rate of wrapping material and keep the sealing effect and bag shape. The whole machine is made of 316 Stainless Steel which is hygienic and safety.







Function and characteristics:

  • 8 stations, single bag
  • PLC control with touch screen operation
  • Servo-driven Allen Bradley control platform
  • Highly durable welded steel frame
  • Production parameter memory including gripper size, machine speed, sealing temperature, and filling volume
  • Pouch presence detection – no filling, no sealing
  • Bag deflation with wire guide or push bars
  • Automatic deoxidizer feeding station
  • Two step sealing process guarantees clean sealing
  • Cooling station for liquid products





OPTIONS

  • NEW STANDCAP pouch configuration
  • Proprietary Viking robotic pick & place bag infeed system
  • Product filling – can be integrated with multi-head scales, volumetric fillers and auger fillers
  • Fully interlocked safety guards
  • Presealing station for liquid or paste
  • Zipper opening device
  • Clean-in-place design
  • Long raised rotary shaft extender for longer bags
  • Extended bag magazine
  • Date coding: emboss, hot stamp, inkjet or thermal transfer
  • Quality control: checkweigher, metal detector, X-ray inspection
  • Dust suction nozzles and dust collector
  • Product settler
  • Bag supporter for heavy fills
  • Ethernet connectivity
  • Washdown structure (IP65 or IP66)
  • Steam or gas flush
  • Rotary running clockwise model
  • Bag rejection system
  • Stand-up discharge







Technical parameters:



Model CF6-200 CF6-300 CF8-200 CF8-300
Measuring range 5-1500g 100-2500g 5-1500g 100-2500g
Measurement accuracy ±0.5-5g
Bag Type premade bag
Operation Mode Intermittent
Working position six-working position eight-working position
Pouch material Laminated filmPPPE etc.
Speed Up to 15bags/min Up to 40bags/min Up to 45bags/min Up to 40bags/min
Bag Length 100-300mm 200-500mm 100-300mm 200-500mm
Bag Width 100-200mm 180-300mm 100-200mm 180-300mm
Film Thickness 0.04-0.12mm
Voltage AC 220V/ 50HZ 1phase or per customer needs
Power Consumption 5.5KW 6KW 5.5KW 6KW
Compressed Air Requirement 0.6MPa,0.36 M3 / Min
Weight 800KG 850KG 900KG 1100KG





Chemical Powder Fertilizer Powder Packaging Machine with Augur Filler Detergent Powder Filling Machine 1



Chemical Powder Fertilizer Powder Packaging Machine with Augur Filler Detergent Powder Filling Machine 2
