Powder / Granules Premade Pouch Packaging Machine High Efficiency With Linear Weigher

Powder / Granules Premade Pouch Packaging Machine High Efficiency With Linear Weigher

    • Powder / Granules Premade Pouch Packaging Machine High Efficiency With Linear Weigher
    • Powder / Granules Premade Pouch Packaging Machine High Efficiency With Linear Weigher
    • Powder / Granules Premade Pouch Packaging Machine High Efficiency With Linear Weigher
    • Powder / Granules Premade Pouch Packaging Machine High Efficiency With Linear Weigher
  • Powder / Granules Premade Pouch Packaging Machine High Efficiency With Linear Weigher

    Product Details:

    Place of Origin: CHINA
    Brand Name: STRPACK
    Certification: ISO,CE
    Model Number: STR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Price Negotiable
    Packaging Details: Wooden Case Packaging
    Delivery Time: 3-50 Working Days
    Payment Terms: TT/LC
    Supply Ability: 1000 SET
    Contact Now
    Detailed Product Description
    Material: 316L+304 Stainless Steel Voltage: 380V/50HZ
    Packaging Type: Bags, Pouch, Stand-up Pouch Product Name: Pouch Packaging Machine
    Driven Type: Electric Function: Filling, Sealing, Pre-made Pouch

    Washing Powder Packing Machine Automatic Horizontal Pre-made Pouch Packaging Machine For Granules With Linear Scale Weigher

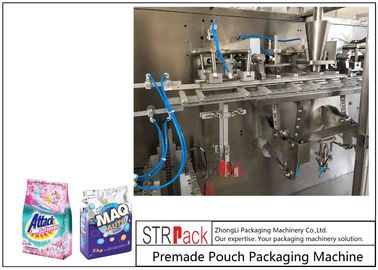

    Pouch Packaging Machine - Horizontal Fill and Seal

    Equipped with Z-shape bucket elevator and combination scale, it is widely applied to candies, microwave popcorn, cookies, nuts, rice, coffee beans, crops, peanuts, etc.


    • 8 work stations: 1) bag picking; 2) coding; 3) zip unit; 4) bag opening; 5) according to the material; 6) according to the material; 7) sealing and closing zip; 8) tidy to output;


    Summarize:
    The equipment is mainly used in automatic particle counting packages. Through the material delivered to the automatic measurement device of hoist, after the accurate measurement based on the specified parameters, to the level to the Rotary packing machines for automatic bagging and sealing, output. The whole automatic control of equipment saved resources, increased productivity.

    Function and Characteristics:

    • Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
    • Automatic checking function: no pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.
    • Safety device: machine stop at abnormal air pressure, heater disconnection alarm.
    • The machine is easy to clean, easy maintenance.
    • The part where touch to the material is made of stainless steel



    Technical Parameters of Pre-made Pouch Packaging Machine:


    Model SHF-240G
    Packing type Stand up bag/flat bag (with zipper or not)
    Packing speed 60 package/min.
    Measuring method Auger filler, cup measuring,
    Package width 110mm-240mm
    Package height 115mm-350mm
    Filling amount(max) 400ml
    Power supply AC 380V 50Hz
    Air pressure 0.6Mpa
    Weight 1200KG
    Dimensions(mm) 2400(L)×100(W)×1360(H)


    Linear Scale Weigher

    Ideally suited for slice, roll or regular shape products: sugar, salt, seed, rice,sesame, glutamate, milk powder, coffee and seasoning powder, etc.

    Principal Feature:

    • Adopt high precision digital load cell
    • Color touch screen with Multilanguage control panel
    • Sanitation with 304S/S construction
    • The parts contacted products can be easily mounted without tools
    • Make mix different products weighing at one discharge
    • Adopt no-grade vibrating feeding system to make products flowing more fluently
    • Program can be freely adjusted according to production condition
    • Can be remote-controlled and maintained through internet

    With STRPACK experience in design and manufacture, the linear weigher can be modified to suit different purpose applications.

    Application:
    Free Flow Powders: Detergent, Sugar, Salt, Spices, Milk powder, various sorts of powders, etc.
    Granules & Seeds: Coffee beans, Rice, Sesame Seeds, Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods, Confectionary, Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food.
    Non Food: Fasteners, plumbing parts, plastic, etc.

    Specification:

    Model SWJ-2000-4H
    Capacity 20-2000g
    Hopper Volume 3000ml
    Max. Speed 10-50(bags/min)
    Weighing accuracy ±1-3g
    Voltage 220v/50/60Hz/5A
    Power 0.8KW
    Control Panel 20
    Max Mixing products 4



    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
