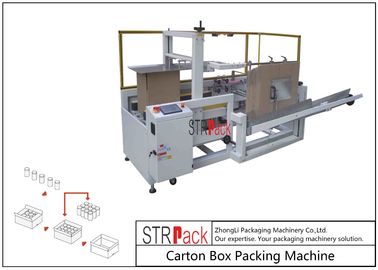

High Capacity Carton Packing Machine / Case Erector Machine For Bottle Filling Line

High Capacity Carton Packing Machine / Case Erector Machine For Bottle Filling Line

    • High Capacity Carton Packing Machine / Case Erector Machine For Bottle Filling Line
    • High Capacity Carton Packing Machine / Case Erector Machine For Bottle Filling Line
    • High Capacity Carton Packing Machine / Case Erector Machine For Bottle Filling Line
    • High Capacity Carton Packing Machine / Case Erector Machine For Bottle Filling Line
  • High Capacity Carton Packing Machine / Case Erector Machine For Bottle Filling Line

    Product Details:

    Place of Origin: CHINA
    Brand Name: STRPACK
    Certification: ISO,CE
    Model Number: STR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Price Negotiable
    Packaging Details: Wooden Case Packaging
    Delivery Time: 3-50 Working Days
    Payment Terms: TT/LC
    Supply Ability: 1000 SET
    Contact Now
    Detailed Product Description
    Model: SKX-4035 Carton Size: L200-450mm W150-400mm H100-350mm
    Table Height: 600-720mm Speed: 600-720cartons/min
    Dimension: 2000x1900x1450mm Power: 220V 380V 50/60HZ

    Automatic Carton Folding Case Erector Machine And Bottom Seale For Bottle Filling Line

    Featured with automatic packing and bottom sealing,SKX-series carton erector is widely applied to the various industries of food, medical, chemical, and etc. It can work alone or together with the production line to achieve full automation.





    Application

    Full automatic bottom sealer carton box erector machine Suitable for erecting paper cartons.



    Features:
    *High-capacity powered case magazine.
    *Small footprint design minimizes floor space.
    *Low case & low tape alarms with stack light assure continuous operation.
    *Safety interlocked guarding restricts access to moving parts.
    *12 case per minute operation for medium speed packaging lines.
    *CE international certification.
    *Alarm when lack tape or case.


    1 Vertical storage, cartons can be added at any time without stopping the machine;

    2 Suitable for forming and sealing cartons of the same size.

    3 Manually adjust to change the carton sizes(finishing in 2-3minutes);

    4 Advanced photoelectricity induction control system

    5 Rationally designed, the forming, folding and sealing process are accomplished simultaneously;

    6 Cutter Safety system to prevent hands form stabbed by the cutter

    Heavy duty built, both steel and stainless steel types


    Model SKX-4035
    Carton Size L200-450mm W150-400mm H100-350mm
    Table Height 600-720mm
    Speed 600-720cartons/min
    Dimension 2000x1900x1450mm
    Power 220V 380V 50/60HZ
    Air Supply 6-7kg f/cm3-40nl/min
    Weight 550kg
    Tape W48mm-w60-75mm*L1000yard


    The Other Model Parameters


    Model SKX-4035 SKX-5050
    Carton Size L220~500mm/W150~400mm/H100~350mm L200~450mm/W150~400mm/H100~350mm
    Table Height H=650mm Min.H600mm Max.H720mm
    Speed ≤10 box/min 1-10 box/min
    Dimension L2050×W1900×H1400mm L2000×W1900×H1450mm
    Power 220V/380V 50/60HZ 220V/380V 50/60HZ
    Air Supply >500L/min, 0.4~0.8 Mpa >500L/min, 0.4~0.8 Mpa
    Weight NW-280kg GW-310kg NW-400kg GW-550kg
    Tape W48mm-W60-75mm×L1000 W48mm-W60-75mm×L1000

    High Capacity Carton Packing Machine / Case Erector Machine For Bottle Filling Line
    High Capacity Carton Packing Machine / Case Erector Machine For Bottle Filling Line
    To Make The Machine In A Good Condition. Please Insist On Maintenance,
    Which Will Lengthen The Life Of Machine.
    Everyday
    1 Maintain The Gas Source And Air Pump
    2 Check The Screw
    3 Clean The Nozzle
    4 Clean The Machine After Finish Work
    5 Check The Blade And Clean(by Petrol)
    6 Clean The Shaft
    7 Check The Tape
    Every Month
    1 Clean The Air Filter
    2 Add The Screw If Any Disappeared
    3 Check The Circuit





    FAQ

    1---If have stock machine?
    For semi automatice machine, we all have stock. Can ship within 7 working days. For automatic machine, all have no stock. Automatic machines are customized made according to bottles and caps. It need place the order, then manufacture.

    2---How long time to make?
    For single machine, it takes from 10~30 working days. For whole filling line, it takes from 40~60 working days.

    3---Ship from which port?
    If by air, it is from Shanghai International Airport. If by sea, it is from Shanghai or Ningbo. Other seaport of China is also accepted.

    4---The payment?
    By TT. 50% in advance as downpayment , 50% balance before shipping.

    -If can visit factory to check machines firstly, then place order?
    Sure! Welcome to visit us !




    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
