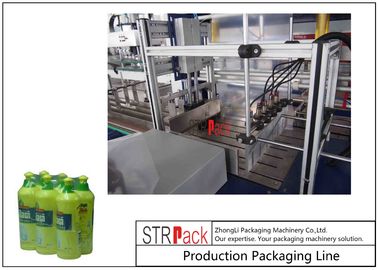

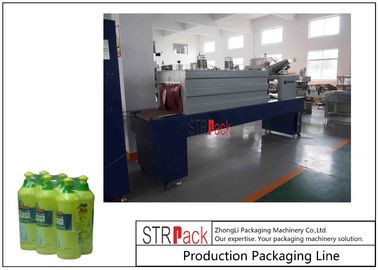

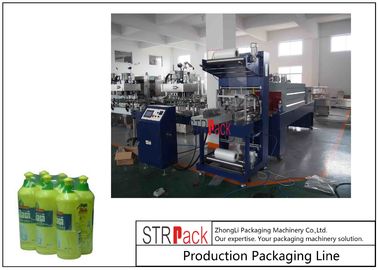

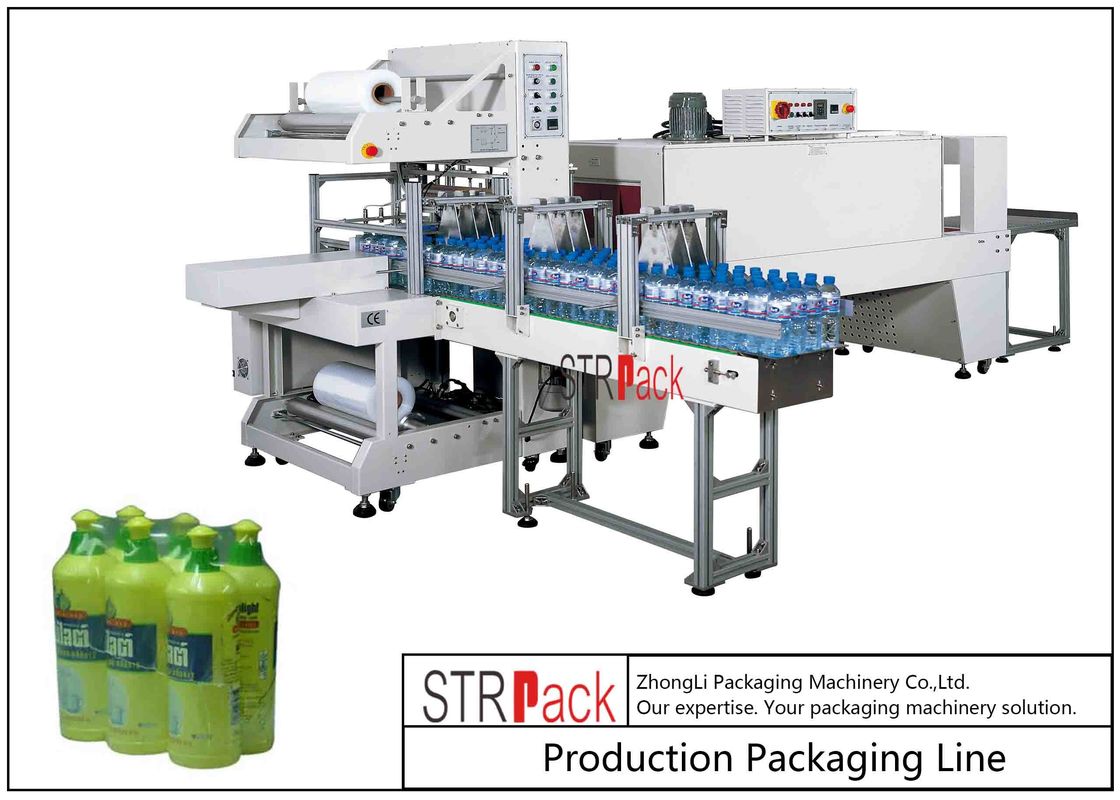

Touch Screen Control Bottle Packing Machine PE Film Shrink Sleeve Packaging Machine

Touch Screen Control Bottle Packing Machine PE Film Shrink Sleeve Packaging Machine

    • Touch Screen Control Bottle Packing Machine PE Film Shrink Sleeve Packaging Machine
    • Touch Screen Control Bottle Packing Machine PE Film Shrink Sleeve Packaging Machine
    • Touch Screen Control Bottle Packing Machine PE Film Shrink Sleeve Packaging Machine
    • Touch Screen Control Bottle Packing Machine PE Film Shrink Sleeve Packaging Machine
  • Touch Screen Control Bottle Packing Machine PE Film Shrink Sleeve Packaging Machine

    Product Details:

    Place of Origin: CHINA
    Brand Name: STRPACK
    Certification: ISO,CE
    Model Number: STR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Price Negotiable
    Packaging Details: Wooden Case Packaging
    Delivery Time: 3-50 Working Days
    Payment Terms: TT/LC
    Supply Ability: 1000 SET
    Contact Now
    Detailed Product Description
    Model: ST-6030 Dimension: 5050X3300X2100
    Max Packing Size: 600X400X350 Packing Speed(pcs/min: 8-18
    Net Weight (kg): 1200 Power (kw): 20

    Fully Automatic Sleeve Wrapper Shrink Machine For Bottle Auto Sleeve Wrapper With Automatic PE Film Shrink Wrapper





    Scope of Application

    Used for packing the beverage, beer, mineral water, pop-top cans and glass bottles with a tray or a carton etc.







    Technical features

    ST-6030+SM-6040 Auto Sleeve Wrapper is designed for the single product or the products with a tray, the sealing machine can be connected with the production line and with its auto feeding, film wrapping, sealing & cutting, shrinking and cooling, need not an operator.







    Basic parts
    ※ ST-6030 adopts imported advanced technology and artwork, ensure the machine's stability and reliability;
    ※ The film feeding is controlled by sensors, so that much lower the wast of the film is made.
    ※ The imported Omron digital temperature controller from Japan ensures the accuracy of the temperature;
    ※ The imported Sick sensors from Germany induce the product;
    ※ The stepless mechanical speed controller adjusts the conveying speed;
    Adopts Mitsubishi PLC , realized the integrated with the machine, electricity and air;
    ※ Adopted specially designed sealing cutter, results in perfect sealing line, avoid the film sticking the cutter;
    ※ The conveying belt can be set on the left or right side according to the customer's needs;
    ※ SM-6040 adopts double imported blowing motors assure the hot air inside the tunnel even, and shrink effect is more compact;
    ※ The adjustable hot air guide flow frame inside the tunnel makes more energy saved;
    Adopts solid steel roller coved silicone gel pipe, chain conveying, and durable silicone gel;
    ※ Adopts Taian transducer from Taiwan controls conveying speed, stepless speed control;






    Automatic sleeve sealing and shrink machine  ST-6030AH+SM-6040
    Model ST-6030 SM-6040
    Power supply 220/380V,3phase,50/60Hz 220/380V,3phase,50/60Hz
    Power 2kw 22kw
    Packing size W+H≤700mm L1500×W450×H300mm
    Product W+H /tunnel size 700mm L1800×W600×H400mm
    Packing speed 6-14pcs/min 20-80pcs/min
    Air compressing 6kg/cm³ /
    Max current 10A 35A
    Net weight 465kg 600kg
    Machine dimension L2600×W1350×H2000mm L2700×W900×H1640mm



    Touch Screen Control Bottle Packing Machine PE Film Shrink Sleeve Packaging Machine

    Main component detail list

    no Name specification number brand
    1 board production component
    2 Plant metal component
    3 pneumatic component   1 Taiwan Airtec
    4 Electric controlling component and accessory
      Photoelectric switch   4 South Korea Autonics
    Proximity switch   2 South Korea Autonics
    PLC   1 Thinget
    Touch screen   1 Thinget
    Frequency converter     3 Taiwan Telta
    AC contactor   3 France Schneider
    Mid-relay   8 France Schneider
