Rotary Automatic Aerosol Gas Filling Machine Capacity 3600CPH For Butane Gas

Rotary Automatic Aerosol Gas Filling Machine Capacity 3600CPH For Butane Gas

    • Rotary Automatic Aerosol Gas Filling Machine Capacity 3600CPH For Butane Gas
    • Rotary Automatic Aerosol Gas Filling Machine Capacity 3600CPH For Butane Gas
    • Rotary Automatic Aerosol Gas Filling Machine Capacity 3600CPH For Butane Gas
    • Rotary Automatic Aerosol Gas Filling Machine Capacity 3600CPH For Butane Gas
  • Rotary Automatic Aerosol Gas Filling Machine Capacity 3600CPH For Butane Gas

    Product Details:

    Place of Origin: CHINA
    Brand Name: STRPACK
    Certification: ISO,CE
    Model Number: STR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Price Negotiable
    Packaging Details: Wooden Case Packaging
    Delivery Time: 3-50 Working Days
    Payment Terms: TT/LC
    Supply Ability: 1000 SET
    Contact Now
    Detailed Product Description
    Inflation Capacity: 50-750ml Inflation Accuracy: ≤±1%
    Capping Accuracy: ≤1% Production Capacity: 3000-3600 Cans/hr
    Working Pressure: 0.65-1Mpa Can Diameter: 35-65mm

    Cooking Gas Production Filling Line With Automatic Gas Cartridge Filling Machine Capacity Up To 3600CPH For Butane Gas Cartrideg

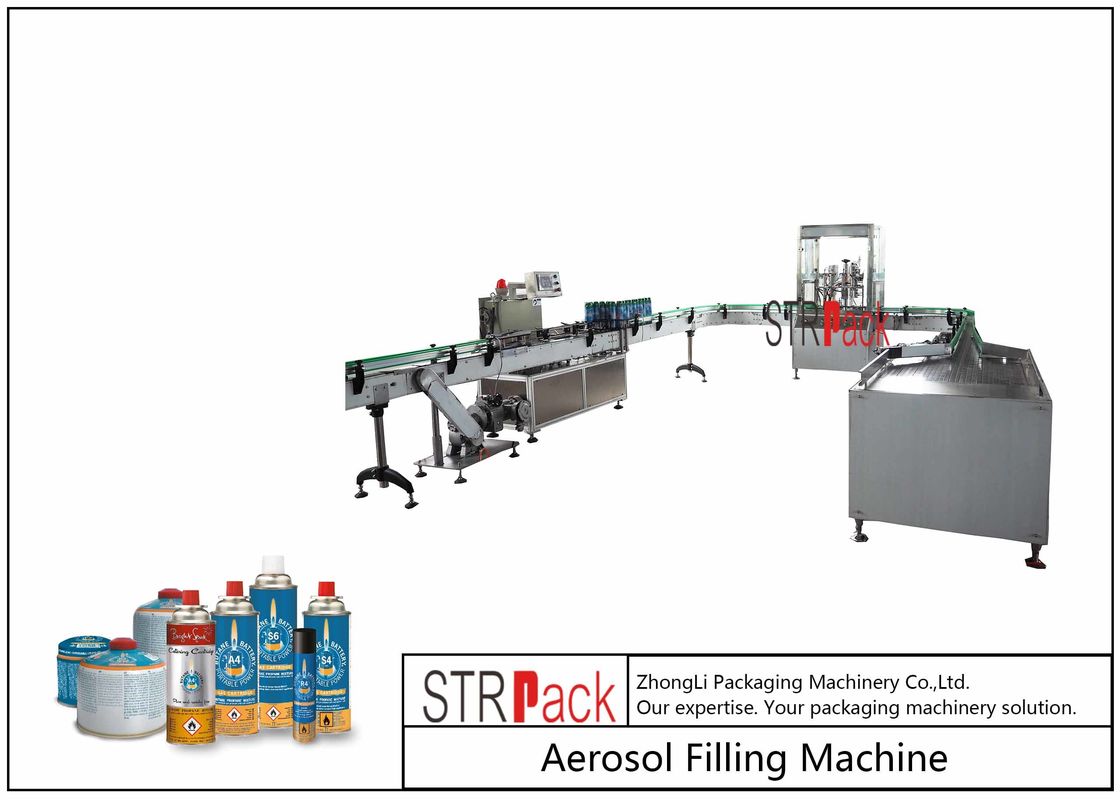

    Automatic aerosol filling machine consist of can arrange machine, rotary liquid filling machine, valve insert machine, rotary sealing and gas filling, automatic weight checker, water bath, nozzle presser, cap presser, ink jet printer, carton sealing & strapping machine.



    This automation aerosol filling machine can filling with the international standard of 1 inch diameter and spray cans. It is suitable for filling water, oil, milk, F12, DME, CO2 and many heavy projectile substances. It can also suitable for spray paint, foam cleaner, perfume, deodorant, insect killer, PU foam, cosmetic, food aerosols.





    Working Process

    Manual Can Feeding Empty Can Conveying System Manual Valve Insertion Crimping & Gassing System Conveyor Next Station





    Features

    1. Sealing guided,automatically stop on unqualified sealing;

    2. Accurate & efficient gas inflation reduces gas consumption;

    3. Can be perfectly matched with automatic water bath leakage detection machine, automatic check weighing machine,automatic actuator placing machine, capping machine and ink jet printer.



    Main Performance parameter:



    Inflation capacity 50-750ml
    Inflation Accuracy ≤±1%
    Capping accuracy ≤1%
    Production Capacity 3000-3600 cans/hr
    Working Pressure 0.65-1Mpa
    Maximum Air Consumption 3m2/min
    Applicable Aerosol Can Diameter 35-65mm
    Applicable Aerosol Can Height 80-330mm
    Valve Requirement 1” international standard valve





    Rotary Automatic Aerosol Gas Filling Machine Capacity 3600CPH For Butane Gas



    Rotary Automatic Aerosol Gas Filling Machine Capacity 3600CPH For Butane Gas





    FAQ
    1---If have stock machine?
    For semi automatice machine, we all have stock. Can ship within 7 working days. For automatic machine, all have no stock. Automatic machines are customized made according to bottles and caps. It need place the order, then manufacture.
    2---How long time to make?
    For single machine, it takes from 10~30 working days. For whole filling line, it takes from 40~60 working days.
    3---Ship from which port?
    If by air, it is from Shanghai International Airport. If by sea, it is from Shanghai or Ningbo. Other seaport of China is also accepted.
    4---The payment?
    By TT. 50% in advance as downpayment , 50% balance before shipping.

    -If can visit factory to check machines firstly, then place order?
    Sure! Welcome to visit us !




    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
