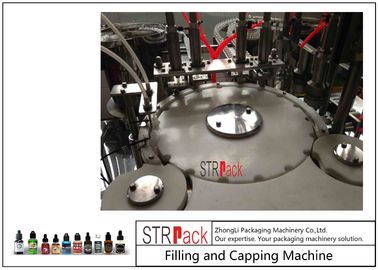

10ml-100ml E-liquid Bottle Filling And Capping Machine With Piston Pump

10ml-100ml E-liquid Bottle Filling And Capping Machine With Piston Pump

    • 10ml-100ml E-liquid Bottle Filling And Capping Machine With Piston Pump
    • 10ml-100ml E-liquid Bottle Filling And Capping Machine With Piston Pump
    • 10ml-100ml E-liquid Bottle Filling And Capping Machine With Piston Pump
    • 10ml-100ml E-liquid Bottle Filling And Capping Machine With Piston Pump
  • 10ml-100ml E-liquid Bottle Filling And Capping Machine With Piston Pump

    Product Details:

    Place of Origin: CHINA
    Brand Name: STRPACK
    Certification: ISO,CE
    Model Number: STR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Price Negotiable
    Packaging Details: Wooden Case Packaging
    Delivery Time: 3-50 Working Days
    Payment Terms: TT/LC
    Supply Ability: 1000 SET
    Contact Now
    Detailed Product Description
    Production Capacity:: 60~90bottles/min Application Bottles:: 5 Ml --30ml Round Plastic Bottles
    Filling Way:: Peristaltic Pump Filling Stoppering Rate:: ≥99%
    Stoppering Heads:: Double Capping Rate:: ≥98%

    Automatic 10ml-100ml E-liquid Bottle Filling Capping Machine With Piston Pump E-Smoke E-Cigarette Oil Filling Mchine





    Working Principle

    Prepare adequate bottles, inner plug, outer caps and fluids; the track of oscillation hopper should be filled with inner plugs and outer caps, and located at outside capping station. Bottles are supplied by bottle machine or manually, transferred by conveyor belt; bottles transferred by conveyor belt should be transferred by in-bottle driver plate to positioning round plate. Two bottles are pulled into to each revolution of in-bottle driver plate; and then, the bottles are transferred by positioning round plate intermittently to filling, stoppering, hanging and capping stations.





    Main Features

    1) Simple structure ,easy in installation and maintation.

    2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

    3) Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically

    4) The part which touches the liquid medicine is made of 316 or 304 stainless material completely, meets GMP standard.

    5) Microcomputer setting, PLC control, touch screen operation, easy to operate with stable performance.



    Machine Parts

    Name: Filling Nozzles

    We can adopt metering systems from piston to peristaltic.It is up to viscosity of E liquid.



    Name: Plugging

    This part use manipulator to get plugger and place into a bottle.then the manipulator suck a cap and put into the bottle.



    Name: Capping Head
    When the bottle go to this station,capping head will screw it automatically.



    Name: Vibrating bowl
    These bowls are customized according customer's plugger and also caps.



    Main Technical Parameters

    Production capacity: 60~90bottles/min
    Application bottles: 5 ml --30ml round plastic bottles
    Filling way: peristaltic pump filling
    Filling head: double
    Measure accuracy: ±0.5-1%(peristaltic pump)
    Stoppering rate: ≥99%
    Stoppering heads: double
    Capping rate: ≥98%
    Capping heads: double
    Power: 2KW
    Total power: 220V 50HZ
    Air supply: 0.3~04kfg/cm2
    Air consumption: 15~20m3/h
    Dimensions: 2000mm×1400mm×1600mm



    10ml-100ml E-liquid Bottle Filling And Capping Machine With Piston Pump



    10ml-100ml E-liquid Bottle Filling And Capping Machine With Piston Pump



    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
