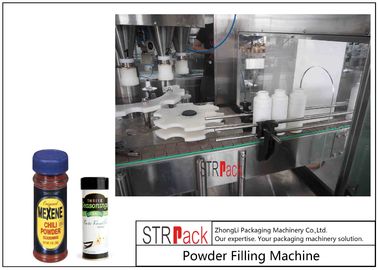

Multi station Rotary Powder Filling Machine With Servo Drive Controlled Auger

Multi station Rotary Powder Filling Machine With Servo Drive Controlled Auger

    • Multi station Rotary Powder Filling Machine With Servo Drive Controlled Auger
    • Multi station Rotary Powder Filling Machine With Servo Drive Controlled Auger
    • Multi station Rotary Powder Filling Machine With Servo Drive Controlled Auger
    • Multi station Rotary Powder Filling Machine With Servo Drive Controlled Auger
  • Multi station Rotary Powder Filling Machine With Servo Drive Controlled Auger

    Product Details:

    Place of Origin: CHINA
    Brand Name: STRPACK
    Certification: ISO,CE
    Model Number: STR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: Price Negotiable
    Packaging Details: Wooden Case Packaging
    Delivery Time: 3-50 Working Days
    Payment Terms: TT/LC
    Supply Ability: 1000 SET
    Contact Now
    Detailed Product Description
    Speed: 10-50pcs/Min Filling Range: 5-100g
    Filling Accuracy: ≤ 100g, Tolerance ≤≤±2% Hopper Volume: 25L
    Size Of The Container: φ26-60mm, H 40-200mm Metering Mode: Auger Dosing

    Seasoning Powder Multi-station Rotary Powder Filling Machine For Cans Filling Machine With Servo Drive Controlled Auger





    Brief Instruction:

    It is rotary type powder filling machine which is suitable for filling high accuracy and variable density powder product such as milk powder, protein powder, flour, fine sugar, seasoning flavor, salt powder etc into containers like bottle, jar, can.
    This machine is special for filling powder product into small opening bottles.


    Features:

    Main features:



    1. Fully made of stainless steel, level knocked-down hopper, easily to wash.



    2. Servo-motor and servo drive controlled auger.



    3. Servo controlled turntable with stable performance.



    4. PLC, touch screen and weighing module control.



    5. With on-line weight feedback



    6. With adjustable height-adjustment handwheel at reasonable height, easy to adjust the head position.



    7. With pneumatic can-hold set to assure the material not spilling out when filling.



    8. Weight-chosen equipment, to assure each product be qualified, so to leave the latter cull eliminator.



    9. To save all product’s parameter formula for later use, save 10 sets at most.



    10. When changing the auger accessories, it is suitable for materials ranging from super fine powder to small granula.



    Parameter
    1 Speed 10-50pcs/Min
    2 Filling range 5-500g
    3 Filling accuracy ≤ 100g, Tolerance ≤≤±2%
    4 Hopper volume 25L
    5 Size of the container φ26-60mm, H 40-200mm
    6 Metering Mode Auger dosing
    7 Working Pressure 0.6-0.85Mpa
    9 Power 1.5kw
    10 Voltage 3P AC208-415V 50/60Hz
    11 Net Weight 400Kg
    12 Size 1800×1050×1610mm



    FAQ
    1---If have stock machine?
    For semi automatice machine, we all have stock. Can ship within 7 working days. For automatic machine, all have no stock. Automatic machines are customized made according to bottles and caps. It need place the order, then manufacture.
    2---How long time to make?
    For single machine, it takes from 10~30 working days. For whole filling line, it takes from 40~60 working days.
    3---Ship from which port?
    If by air, it is from Shanghai International Airport. If by sea, it is from Shanghai or Ningbo. Other seaport of China is also accepted.

    4---The payment?
    By TT. 50% in advance as downpayment , 50% balance before shipping.

    -If can visit factory to check machines firstly, then place order?
    Sure! Welcome to visit us !




    After-sales Service:
    (1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
    (2) Long time technology will be supplied.
    (3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
    We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
