|Place of Origin:||CHINA|
|Minimum Order Quantity:||1|
|Packaging Details:||Wooden Case Packaging|
|Delivery Time:||3-50 Working Days|
|Supply Ability:||1000 SET|
|Container Diameter:||Φ50-φ90||Suitable Label Material:||PVC PET OPP OPS|
|Label Thickness:||0.035-0.10mm||Label Length:||30-250mm|

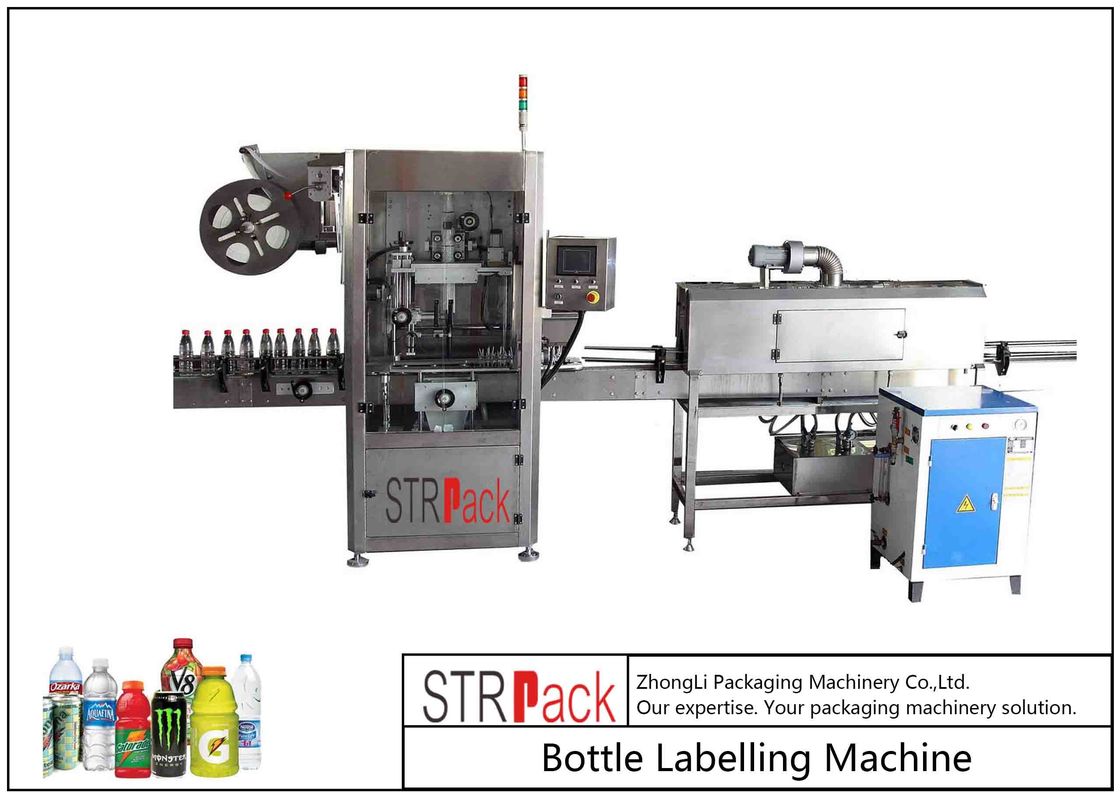

Labeling Machine STS-100 Full-automatic Shrink Seleeve Labeling Machine For Bottles Cans Cups Capacity 100-350 BPM
Automatic Bottle labeling machine, label sleeve shrinkable labeling system, water steam type shrinking labeling machine
Automatic bottle labeling machine, bottle labeller, shrinkable sleeve labeling machine.
Roll-fed type sleeve label setting, central bottle locating system by bottle mold locating post.
The automatic sleeve labeling machine adopts intentional advanced technology---cover the circle label on the bottle. Hot shrinking to fix on the position which bottle body is designed. This machine’s structure is compact, and suitable for the production line of different directions and different heights.
The machinery part adopts combination designing of modularization and makes the machine reliable. The height adjustment adopts motor fluctuation. It is convenient to replace the material. The special cutter head design, make the label rolling cut more accurate and reliable.
It is widely used in mineral water bottle, pure water bottle, soft drink bottle, medicine bottle, food bottle and other containers. Production capacity range is 2000-36000BPH.
1. The sleeve label is unwound evenly from the reel via feed roller and conveyed to the cutting unit via the sleeve supply unit.

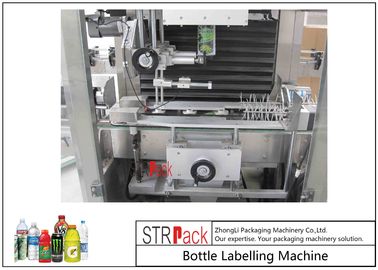

2. There, the sleeve is opened by pulling it over a mandrel, a servomoter-controlled cutter cuts the sleeves exactly to the set length.
3. After that, the applicator fork pulls the sleeves over the container.
4. Depending on the container shape and the sleeve size, an optional positioning brush moves the sleeve to the desired position. As a result, each sleeve is in perfect position and cannot slip.
5. Optional hot-air nozzles shrink and pre-position the sleeves. After that, the sleeves are shaped perfectly around the container contour in a steam or hot-air tunnel.
Steam(Electric) Heating Shrink Tunnel:
1. Steam Heating Shrink Tunnel can be applied to different and irregular bottle types, e.g. round, square and flat bottles.
2. It adopts seamless tube, the distribution of low-pressure steam drum and spouting method of steam are unified.
3. The steam nozzle is divided to three adjustable segments; the height, position and steam output of each segment can be adjusted respectively; this guarantees a perfect shrinking effect.
4. The whole machine is made of stainless steel with heat preservation, it not only saves energy, buy also match with the international safety standard.
5. The stainless steel defrosting tray collects condensed water. The whole machine adopts the waterproof design with the convenience of operation and maintenance
The Technical Parameter
|Suitable Label Material||PVC PET OPP OPS|
|Voltage||380V, 50/60Hz, 3 phase|
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 1 year
(2) Long time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. Engineer's salary will be USD60.00/day/person.
We can also supply training process for your engineers who come to china, so you can fit and debug machines by yourself.
